Epoxy Resin L + Hardener EPH 161 (90 min)

    Set of two components:
    250 g, 895 g, 3.125 kg

    Epoxy Resin L + Hardener EPH 161 (90 min)

    Epoxy Resin L + Hardener EPH 161 (90 minutes), set of two components

    New hardener formulation with improved properties (see below under Additional Information "Comparative Data "*)

    • Free from DETA
    • Low viscosity, free of solvents and fillers
    • Fast impregnation of glass, aramid and carbon fibres
    • Tack-free curing of even the thinnest layers
    • High static and dynamic strength*
    • Better milling edge quality
    • Increased heat distortion temperature after heat curing

    *Higher stiffness (+ approx. 17 %), tendency higher strength

    Processing at room temperature. An optional heat hardening of 15 h at 100° C further improves the strength values and heat distortion temperature considerably.

    Epoxy resin L, together with Hardener EPH 161, exhibits excellent mechanical properties as required, for example, in aircraft construction. However, aviation approval is not given.

    TÜV-Süd has tested the system in various laminate structures and determined its suitability for vehicle construction (see below under Additional Information "TÜV Report").

    Processing time: 90 minutes (100 g / 20 °C)

    Mixing ratio:
    100 : 25 parts by weight Epoxy Resin L : Hardener EPH 161
    100 : 29 parts by volume Epoxy Resin L : Hardener EPH 161

    Curing time: 24 hours at room temperature, subsequent warm curing optional
    Heat distortion temperature: Approx. 70 °C at 23 °C (up to a maximum of 120 °C with additional 15 h heat curing at 100 °C)

    Material characteristics (pure resin cured) Epoxy resin L with hardener EPH 161:

    Tensile strength DIN EN ISO 178 in MPa 156
    Bending E-modulus DIN EN ISO 178 in MPa 4300
    Tensile strength DIN EN ISO 527 in MPa 70
    Elongation at break DIN EN ISO 527 in % 9,5
    Initial viscosity ISO 3219 in mPas 500


    CYTOX expert opinion on the Resin System Epoxy Resin L + Hardener EPH 161 (see below under additional information): this system is not cytotoxic (cell-damaging), important for applications in medical technology

    Further information in the eWiki.

    *Comparative data created by Up2-Tec

    Epoxy Resin L + Hardener 161 (90 min) kit/ 250 g

    R&G

    200 g Resin L + 50 g Hardener EPH 161

    Item no.  1001300 27 in stock  (delivery time 1-2 days)

    Add to Shopping List

    12,07
    (Base Price 48,28 € /  kg)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    • From Qty 10:  15,0%
    • From Qty 30:  20,0%
    - +

    Epoxy Resin L + Hardener 161 (90 min) kit/ 895 g

    R&G

    715 g Resin L + 180 g Hardener EPH 161

    Item no.  1001301 77 in stock  (delivery time 1-2 days)

    Add to Shopping List

    27,43
    (Base Price 30,65 € /  kg)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 3:  10,0%
    • From Qty 6:  15,0%
    • From Qty 12:  20,0%
    - +

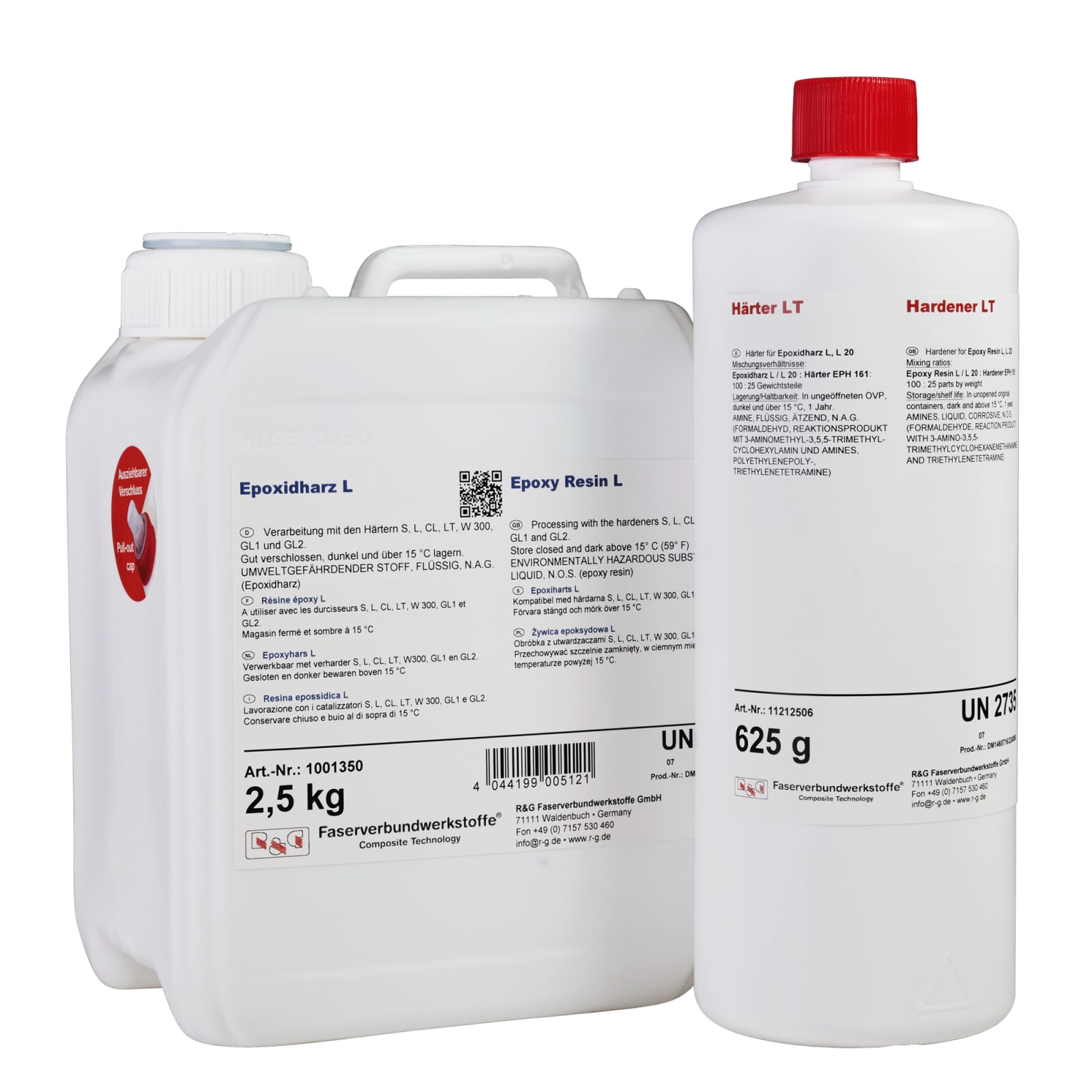

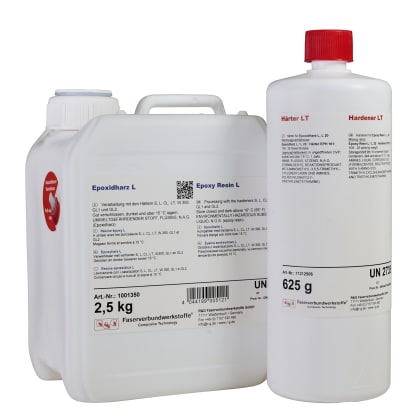

    Epoxy Resin L + Hardener 161 (90 min.) kit/ 3.125 kg

    R&G

    2,5 kg Resin L + 625 g Hardener EPH 161

    Item no.  1001302 Only 9 left in stock, more on the way  (delivery time 1-2 days)

    Add to Shopping List

    78,24
    (Base Price 25,04 € /  kg)

    Scaled Price

    • From Qty 2:  5,0%
    - +

    all Prices  price incl. VAT, possibly plus shipping

    Article information

    type: ga
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]
    Instructions for use
    type: si
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]
    MSDS
    type: pi
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]
    Product information
    type: td
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]
    type:
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]

    Hazards identification - Epoxy Resin L

    Hazard components for labelling

    bis-[4-(2,3-epoxipropoxi)phenyl]propane
    1,6-bis(2,3-epoxypropoxy)hexane
    Reaction mass of 2,2'-[methylenebis(4,1-phenyleneoxymethylene)]dioxirane and [2-({2-[4- (oxiran-2-ylmethoxy)benzyl]phenoxy}methyl)oxirane and [2,2'-[methylenebis(2,1-phenyleneoxymethylene)]dioxirane

    Signal word: Warning

    Pictograms:

    GHS07 GHS09

    Hazard statements

    H315 Causes skin irritation.
    H317 May cause an allergic skin reaction.
    H319 Causes serious eye irritation.
    H411 Toxic to aquatic life with long lasting effects.

    Precautionary statements

    P261 Avoid breathing dust/fume/gas/mist/vapours/spray.
    P273 Avoid release to the environment.
    P280 Wear protective gloves / protective clothing / eye protection / face protection.
    P305 P351 P338 IF IN EYES: Rinse continuously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing.
    P501 Dispose of waste according to applicable legislation.

    Special labelling of certain mixtures

    EUH205 Contains epoxy constituents. May produce an allergic reaction.

    Hazards identification - Hardener EPH 161 (90 min)

    Hazard components for labelling

    3-aminomethyl-3,5,5-trimethylcyclohexylamine
    Reaction products of propane-1,2-diol, propoxylated by amination of the terminal hydroxyl group
    3,6-diazaoctanethylenediamin
    triethylenetetramine

    Signal word: Danger

    Pictograms:

    GHS05 GHS07

    Hazard statements

    H302 Harmful if swallowed.
    H312 Harmful in contact with skin.
    H314 Causes severe skin burns and eye damage.
    H317 May cause an allergic skin reaction.
    H318 Causes serious eye damage.
    H412 Harmful to aquatic life with long lasting effects

    Precautionary statements

    P260 Do not breathe dust / fume / gas / mist / vapours / spray.
    P303 P361 P353 IF ON SKIN (or hair): Remove/Take off immediately all contaminated clothing. Rinse skin with water or shower.
    P305 P351 P338 IF IN EYES: Rinse continuously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing.
    P310 Immediately call a POISON CENTER or doctor / physician.
    P405 Store locked up.
    P501 Dispose of waste according to applicable legislation.
