Hardener GL 1 (30 min)

Hardener GL 1 (30 min)

Hardener for Epoxy Resin L

  • Low viscosity (100 ± 50 mPa•s at 25 °C)

The well-proven R&G Epoxy Resin L in combination with Hardener GL 1 offers an approval by the Germanische Lloyd for the construction of boats and rotor blades for wind turbines.


Epoxy Resin L + Hardener GL 1

Mixing ratio:
100 : 30
parts by weight resin : hardener
100 : 35 parts by volume resin : hardener

Processing time: approx. 30 minutes

Properties:

  • Low mixing viscosity (820 mPa•s at 25 °C)
  • Gardner color code <5
  • Fully cures at 10 °C
  • Glass transition temperature (Tg) > 80 °C (post-curing at 70 °C / 15 h)
  • Ambient curing does not result in brittleness (at 20 °C)
  • High static and dynamic strength

This newly developed resin system is ideal for wetting-out glass, aramid and carbon fibres. It exhibits a very good price/performance ratio and is suitable for the following processing procedures:

  • Resin infusion (RI)
  • RTM (resin transfer moulding)
  • Press moulding
  • Vacuum moulding
  • Filament winding
  • Hand laminating

The resin component itself is absolutely free of crystallization due to its Bisphenol A/F base! The resin system is ambient curing and develops no distinctive brittleness even at curing temperatures below 20 °C. We however recommend, to improve the physical and chemical properties, to perform a post-curing at least at 40 °C over 15 h.

Mixing table with processing times of Epoxy Resin L + mixed Hardeners GL 1/2.
The mixing ratio of 100 : 30 resin to hardener remains unchanged.

approx. pot life in minutes
(100 g at 23 °C with epoxy L)

Quantity of
GL 1
in %

Quantity of
GL 2
in %

210 0 100
150 10 90
125 20 80
100 30 70
85 40 60
60 50 50
50 60 40
43 70 30
38 80 20
34 90 10
30 100 0


Please order Epoxy Resin L order no. 100135-X separately

R&G

Hardener GL 1 (30 min), bottle/ 0.75 kg

required resin quantity: 2.5 kg Epoxy Resin L

Item no.  1040952 12 in stock  (delivery time 1-2 days)

Add to Shopping List

21,23
(Base Price 28,31 € /  kg)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
- +
R&G

Hardener GL 1 (30 min) canister/ 1.5 kg

required resin quantity: 5 kg Epoxy Resin L

Item no.  1040953 Only 6 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

40,42
(Base Price 26,95 € /  kg)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
- +
R&G

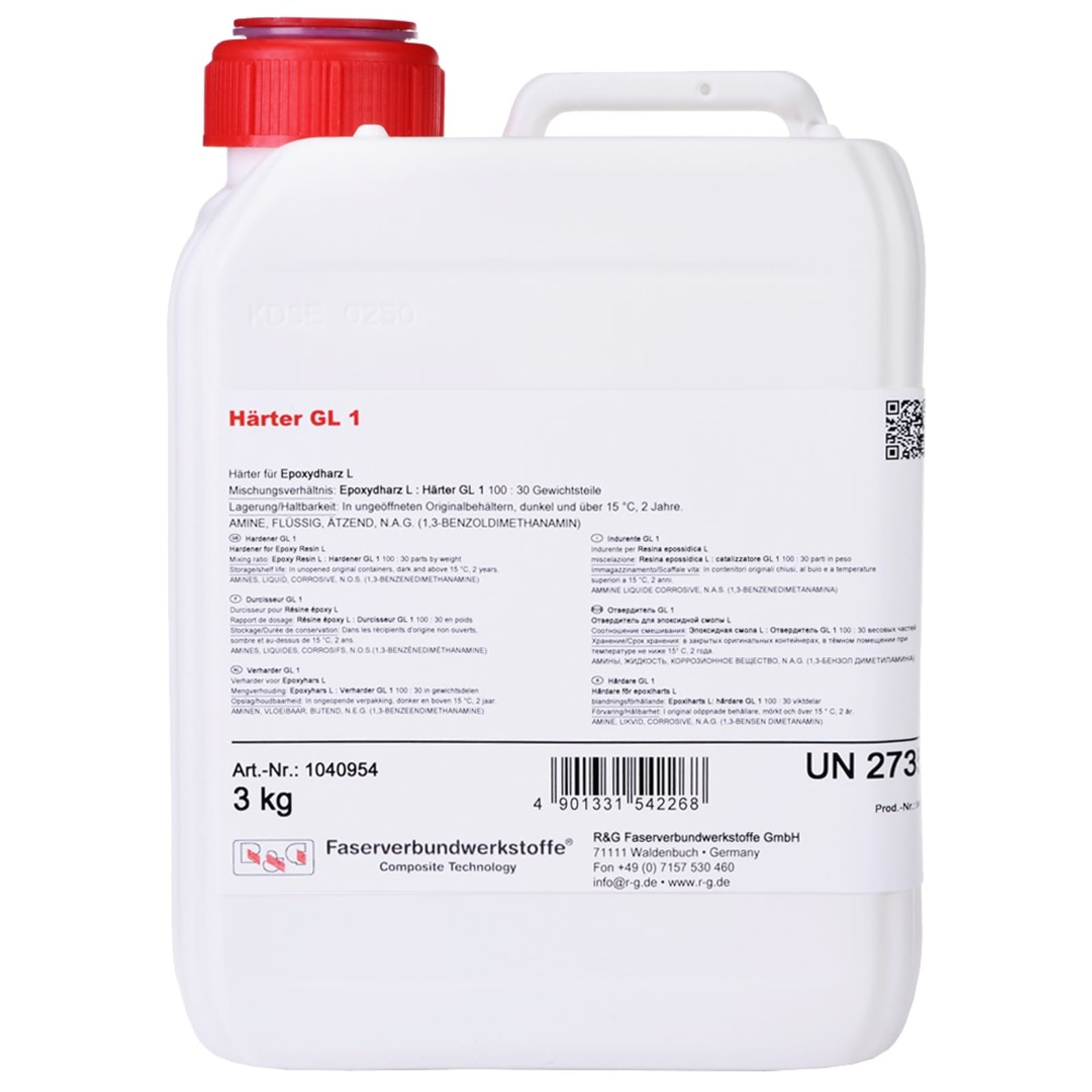

Hardener GL 1 (30 min) canister/ 3 kg

required resin quantity: 10 kg Epoxy Resin L

Item no.  1040954 Only 6 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

69,64
(Base Price 23,21 € /  kg)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
- +
R&G

Hardener GL 1 (30 min) canister/ 7.5 kg

required resin quantity: 25 kg Epoxy Resin L

Item no.  1040955 Only 4 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

154,32
(Base Price 20,58 € /  kg)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
- +
R&G

Hardener GL 1 (30 min) canister/ 20 kg

required resin quantity: 67 kg Epoxy Resin L

Item no.  1040956 Only 3 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

394,95
(Base Price 19,75 € /  kg)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
- +

all Prices  price incl. VAT, possibly plus shipping

Article information

type: ga
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Instructions for use
type: si
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
MSDS
type: pi
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Product information
type: td
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
type:
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]

Hazards identification - Hardener GL 1

Hazard components for labelling

3-aminomethyl-3,5,5-trimethyl-cyclohexylamine
Salicylic acid
1,3-Benzoldimethanamine
2,2,4-trimethylhexane-1,6-diamine
Reaction mass of (1-phenylethyl)phenols and bis-(1-phenylethyl)phenols

Signal word: Danger

Pictograms:

GHS05 GHS07 GHS08

Hazard statements

H302 Harmful if swallowed.
H314 Causes severe skin burns and eye damage.
H317 May cause an allergic skin reaction.
H318 Causes serious eye damage.
H361d Suspected of damaging the unborn child.
H412 Harmful to aquatic life with long lasting effects

Precautionary statements

P260 Do not breathe dust / fume / gas / mist / vapours / spray.
P303 P361 P353 IF ON SKIN (or hair): Remove/Take off immediately all contaminated clothing. Rinse skin with water or shower.
P305 P351 P338 IF IN EYES: Rinse continuously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing.
P310 Immediately call a POISON CENTER or doctor / physician.
P362 P364 Take off contaminated clothing and wash it before reuse.
P405 Store locked up.
P501 Dispose of waste according to applicable legislation.

Hazards identification - Epoxy Resin L

Hazard components for labelling

2,2'-[(1-methylethylidene)bis(4,1-phenyleneoxymethylene)] bisoxirane
Reaction mass of 2,2'-[methylenebis(4,1-phenyleneoxymethylene)]dioxirane and [2-({2-[4-(oxiran-2-ylmethoxy)benzyl]phenoxy}methyl)oxirane and [2,2'-[methylenebis(2,1-phenyleneoxymethylene)]dioxirane
Reaction products of hexane-1,6-diol with 2-(chloromethyl) oxirane (1:2)

Signal word: Warning

Pictograms:

GHS07 GHS09

Hazard statements

H315 Causes skin irritation.
H317 May cause an allergic skin reaction.
H319 Causes serious eye irritation.
H411 Toxic to aquatic life with long lasting effects.

Precautionary statements

P261 Avoid breathing dust/fume/gas/mist/vapours/spray.
P273 Avoid release to the environment.
P280 Wear protective gloves / protective clothing / eye protection / face protection.
P305 P351 P338 IF IN EYES: Rinse continuously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing.
P333 P313 If skin irritation or a rash occurs: Get medical advice / attention.
P501 Dispose of waste according to applicable legislation.

Special labelling of certain mixtures

EUH205 Contains epoxy constituents. May produce an allergic reaction.
