Peel ply 95 g/m² (plain weave) 100 cm

Peel ply 95 g/m² (plain weave) 100 cm

USA: width 39.37", weight 2.8 oz/yd²

Width: 100 cm

Peel ply has been well-known for aircraft construction for many years.

The screen fabric produced using washed polyamide 6.6 (nylon) is applied as a final layer to the epoxy or polyester resin laminate. Following the increase in hardness or respectively before bonding the parts, the peel ply is peeled off („torn off”). This results in an overall rough, bondable upper surface free from the lubricating film. Suitable for epoxy, vinyl ester and polyester resins.

Technical data:

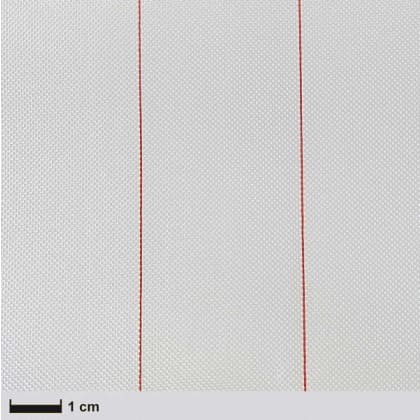

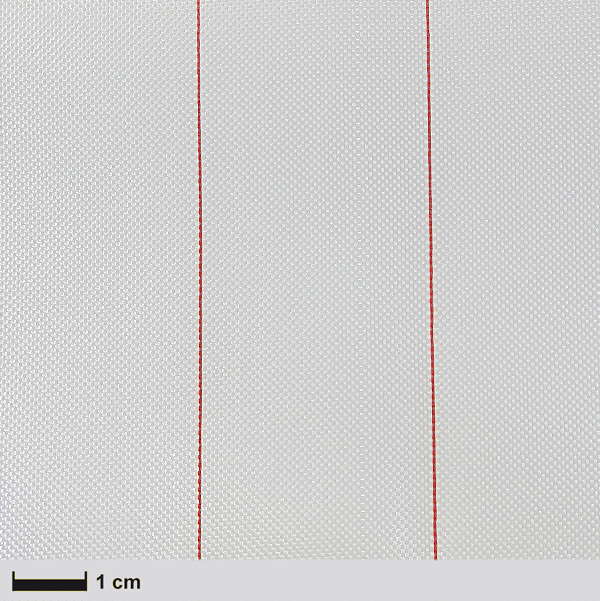

Material: 100 % Nylon 6.6 (Polyamide), scoured, heat-set finished, plain weave
with red tracers, every approx. 30 mm along the warp
Setting (Thr./cm): 19 x 19
Thickness: min. 0.17 mm
Melting point: 250 °C
Softening point: 235 °C
Tensile strength (CSN EN ISO 13934-1): Warp: min. 1040 N, weft: min. 930 N

R&G

Peel ply 95 g/m² (plain weave) 100 cm, pack (folded)/ 2 m

(surface area = 2 m²)

Item no.  1901872 Only 3 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

15,85
(Base Price 7,93 € /  m²)
- +
R&G

Peel ply 95 g/m² (plain) 100 cm, roll/ 5 m

(surface area = 5 m²)

Item no.  1901874 Only 3 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

38,91
(Base Price 7,78 € /  m²)
- +
R&G

Peel ply 95 g/m² (plain) 100 cm, roll/ 10 m

(surface area = 10 m²)

Item no.  1901875 Only 1 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

66,28
(Base Price 6,63 € /  m²)
- +
R&G

Peel ply 95 g/m² (plain) 100 cm, roll/ 20 m

(surface area = 20 m²)

Item no.  1901876 Only 2 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

125,09
(Base Price 6,25 € /  m²)
- +
R&G

Peel ply 95 g/m² (plain) 100 cm, roll/ 100 m

(surface area = 100 m²)

Item no.  1901878 Only 2 left in stock  (delivery time 1-2 days)

Add to Shopping List

486,59
(Base Price 4,87 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
- +

all Prices  price incl. VAT, possibly plus shipping

Article information

type: ga
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Instructions for use
type: si
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
MSDS
type: pi
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Product information
type: td
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
type:
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]

Videos

Hazards identification - Peel ply 95 g/m² (plain weave) 100 cm

Classification of the substance or mixture

The product is not classified according to the CLP regulation.
Labelling according to Regulation (EC) No 1272/2008: Void
Hazard pictograms: Void
Hazard statements: Void

Signal word: n/a
