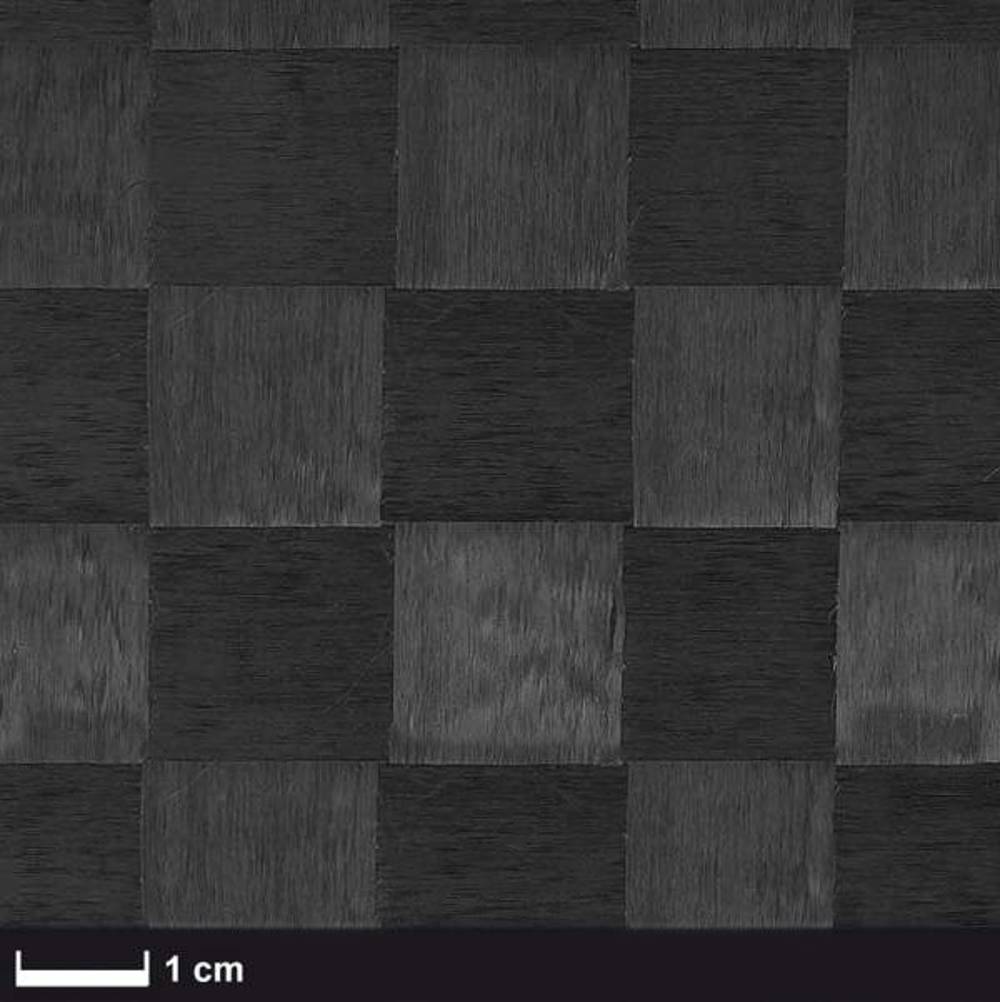

TeXtreme® Carbon fabric 160 g/m² (plain, HT) 100 cm

TeXtreme® Carbon fabric 160 g/m² (plain, HT) 100 cm

USA: width 39.37", weight 4.7 oz/yd²

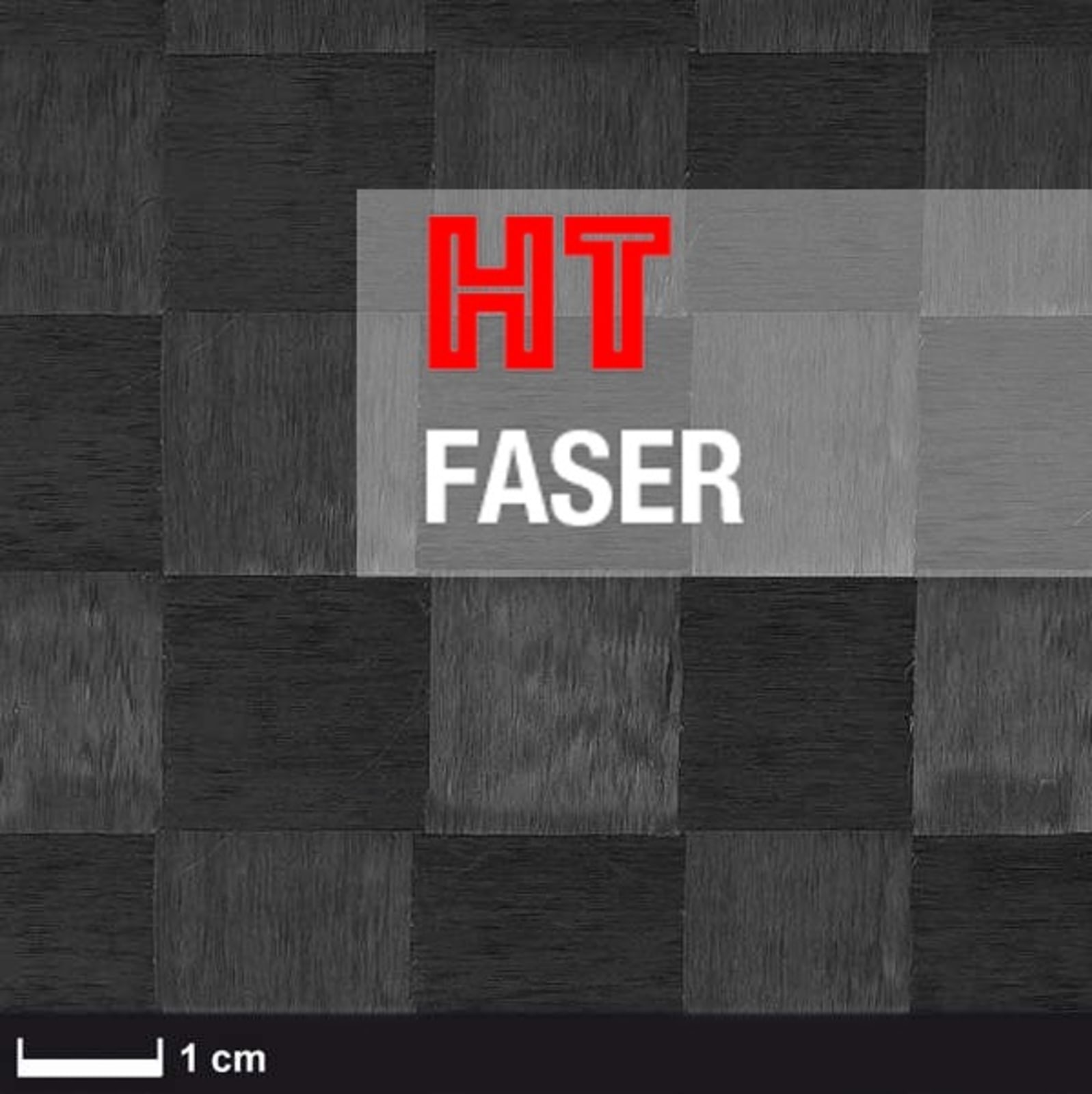

HT-Fibre type: Tenax® UTS50 12k 800 tex

Plain weave
Width:
100 cm
Tape width: 20 mm

Comparison of characteristics of fibres used for TeXtreme® carbon fabric:



TeXtreme®
Carbon fabric HT

TeXtreme®
Carbon fabric IM

TeXtreme®
Carbon fabric HM
Used fibre
Tenax® UTS50 12k
800 tex
Torayca® M30SC 18K
50C 761 tex
Tenax® IMS65 24k
830 tex
Pyrofil™ HR40 12k
600 tex
Tensile strength (MPa): 5100 5490 6000 4410
Tensile modulus (GPa): 245 294 290 395
Elongation at break (%): 2.1 1.9 1.9 1.2
Density (g/cm³) 1.78  1.93 1.78  1.82

The specified fabric weight increases by the binder to about 10 g/m³.

Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 193 g/m², laminate thickness: 0.26 mm, laminate weight: 353 g/m²


TeXtreme® - Lightweight Carbon Fabric

TeXtreme® Spread Tow Fabric (STF) increases the performance and reduces the weight of your composites as well as enhancing the surface finish making the composites aesthetically appealing. The material is pliable and easy to handle when forming and cutting. TeXtreme® is available in a variety of areal weight and fibre type configurations.

Key benefits of TeXtreme®:

• Reduced weight by 20 % or more
• Increased mechanical performance
• Superior surface finish
• Unique aesthetic look
• Easy to handle and cut due to a stable structure


Notes:

UV resistance: No sensitivity
EP-Binder: 18 °C softening takes place (improved processing at room temperature)

Storage:
The fabric should be stored in a dry and well ventilated place at room temperature (0 - 30 °C).
The fabric roll should be stored without load, i.e. the roll must be stored in a stand or in a suitable box so that the paper core can absorb the entire load. R&G guarantees a shelf life of two (2) years from the date of delivery to our customers, provided that the product has been transported, processed and stored in accordance with the specified requirements.

Delivery:
Textreme® fabrics are generally supplied with a liner film. This prevents the fabric layers from "sticking" together. The high quality of the fabric remains.

Further information:

TeXtreme on Facebook
Error classification of the manufacturer Oxeon

Textreme

TeXtreme® Carbon fabric, 160 g/m² (plain weave, HT) roll/ 0,5 m

Plain weave (surface area = 0.5 m²)

Item no.  1902650 Only 1 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

41,63
(Base Price 83,26 € /  m²)
- +
Textreme

TeXtreme® Carbon fabric, 160 g/m² (plain weave, HT) roll/ 1 m

Item no.  1902651 Only 2 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

70,76
(Base Price 70,76 € /  m²)
- +
Textreme

TeXtreme® Carbon fabric, 160 g/m² (plain weave, HT) roll/ 2 m

Item no.  1902652 Only 1 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

127,82
(Base Price 63,91 € /  m²)
- +
Textreme

TeXtreme® Carbon fabric, 160 g/m² (plain weave, HT) roll/ 3 m

Item no.  1902653 Short delivery time

Add to Shopping List

188,04
(Base Price 62,68 € /  m²)
- +
Textreme

TeXtreme® Carbon fabric, 160 g/m² (plain weave, HT) roll/ 5 m

Item no.  1902655 Only 2 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

300,87
(Base Price 60,17 € /  m²)
- +
Textreme

TeXtreme® Carbon fabric, 160 g/m² (plain weave, HT) roll/ 10 m

Item no.  1902656 Short delivery time

Add to Shopping List

588,17
(Base Price 58,82 € /  m²)
- +
Textreme

TeXtreme® Carbon fabric, 160 g/m² (plain weave, HT) roll/ 20 m

Item no.  1902657 Short delivery time

Add to Shopping List

1.063,96
(Base Price 53,20 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
- +
Textreme

TeXtreme® Carbon fabric, 160 g/m² (plain weave, HT) roll/ 100 m

Item no.  1902659 Delivery time on request

Add to Shopping List

4.344,93
(Base Price 43,45 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
- +

all Prices  price incl. VAT, possibly plus shipping

Article information

type: ga
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Instructions for use
type: si
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
MSDS
type: pi
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Product information
type: td
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
type:
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]

Hazards identification - TeXtreme® Carbon fabric 160 g/m² (plain, HT) 100 cm

Classification of the substance or mixture

The product is not classified according to the CLP regulation.
Labelling according to Regulation (EC) No 1272/2008: Void
Hazard pictograms: Void
Hazard statements: Void

Signal word: n/a
