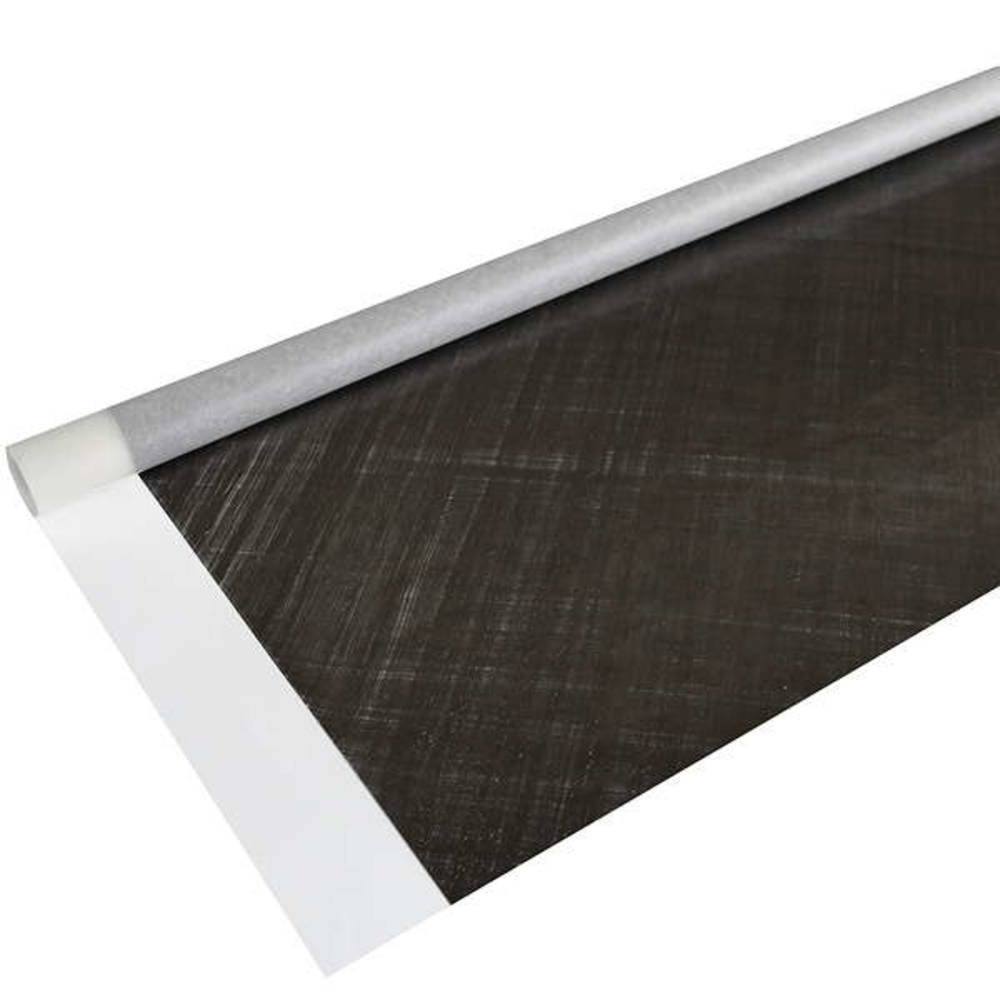

  • A roll of material with a black surface and a white edge, partially unrolled on a white background. It appears to be a type of sheeting or fabric.
  • The image shows a roll of fabric with diagonal stripes, measuring 310 cm in length and 60 cm in width. The fabric is labeled with an order number and angle specification (+/- 45°).
  • The image shows a roll of fabric with diagonal stripes, measuring 310 cm in length and 60 cm in width. It includes order details.
  • A model glider with the word 'SENSOR' on its wings is lying on a grassy field. The glider has a sleek design with orange and black colors. The field is dry and appears to be harvested. A small logo is visible in the bottom right corner.
  • A model glider resting on a grassy field, with a sleek design featuring black and orange colors. Another glider is visible in the background.
  • A long, narrow black object with a red tip is laying on a grassy field. Trees and a blue sky with clouds are in the background.
  • A sleek, modern model glider with a long, narrow wingspan. The wings are colored blue, yellow, and black. The tail is blue.
  • A workshop with a large wooden table displaying a partially assembled aircraft wing structure made of metal and composite materials.
  • Close-up of a glossy black surface with a white and pink design, possibly part of a logo or graphic. The surface is reflective.
  • Close-up of a black, glossy geometric structure with intersecting planes and metal rivets.
  • Close-up of two black, sleek, curved surfaces resembling wings, positioned at an angle against a white background.
  • A close-up of a black, shiny surface with visible scratches and a thin white line running diagonally across it.
  • The image shows a close-up of a ski pole with a black and gold design. The handle is ergonomic with a wrist strap attached.
  • Two sleek, metallic skis with bindings are displayed against a black background. They have a glossy finish and a minimalist design.
  • A child is holding a large bicycle above their head. The bicycle is black and has a sleek design. The child is smiling and wearing a pink skirt.
  • The image shows multiple close-up views of a fishing rod, highlighting its handle, grip, and guides. The rod has a camouflage pattern and metallic elements.
  • A black table tennis paddle with a carbon handle, labeled with 'STL 9R' and 'KillerSpin'.

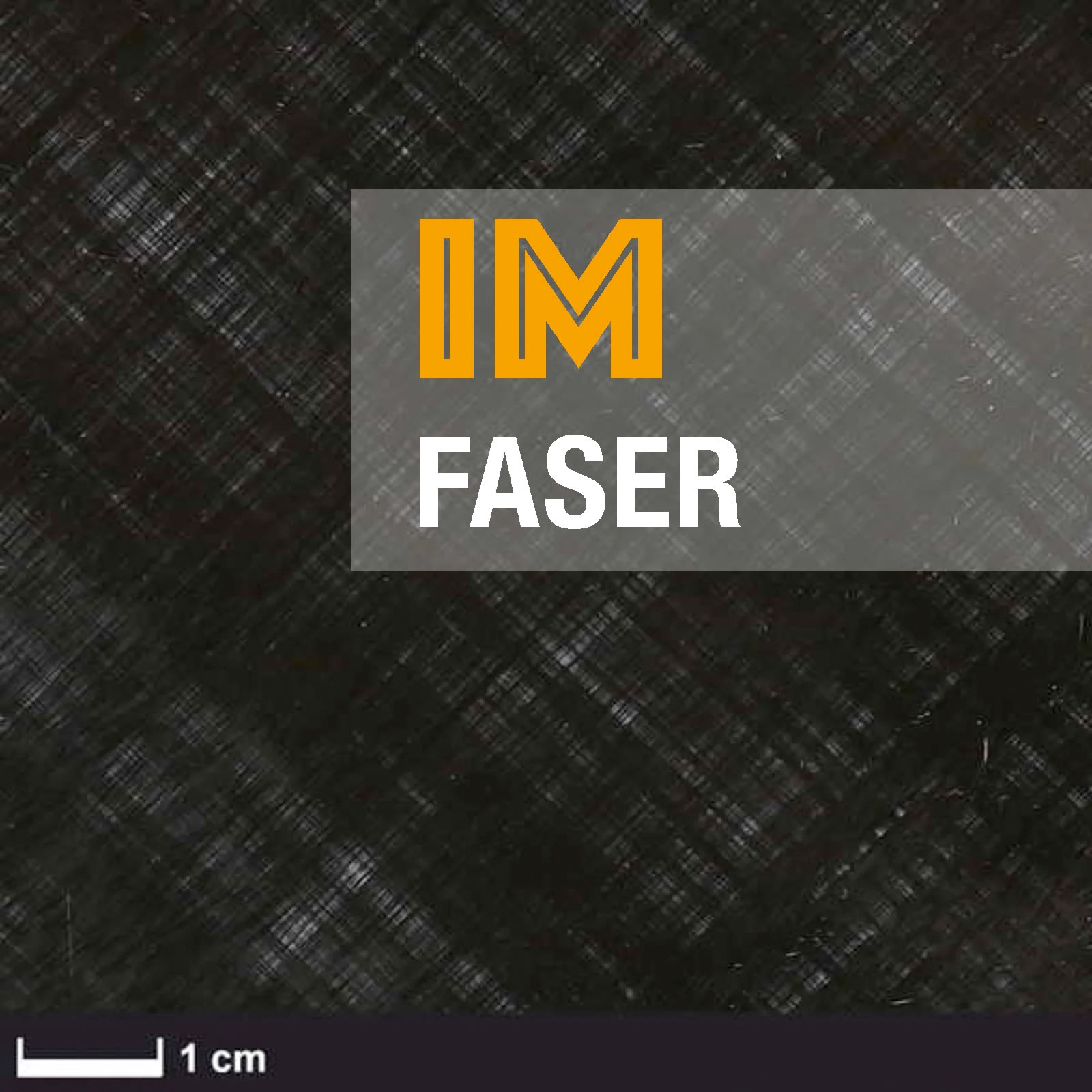

The image shows a close-up of a dark woven fabric with a visible texture. The fabric appears to have a grid-like pattern. A scale indicating 1 cm is present at the bottom.

16 g/m² (0.47 oz/yd²), 50 x 155 cm
Tenax® IMS65

CARBOWEAVE® IMS Carbon NCF 16 g/m² (biaxial)

Due to a worldwide shortage of raw materials, there is, unfortunately, a delay in the delivery of this item.

Fibre: Tenax® IMS65 24k / 830 tex

IM carbon fibres (Intermediate modulus) are specifically suited for lightweight applications. In comparison with standard carbon fibres, for example, Tenax® HTS40 or Torayca® T300, this fibre provides approx. 20 % increased tensile modulus and ca. 50 % increased tensile strength at an increased elongation at break.

Width: 50 cm
Length: 155 cm

Surface weight (g/m²): 8 / 8

Construction: +/- 45° or -/+ 45°

When manufacturing very thin parts, such as trailing edges of wings and tails of model aeroplanes, it could be possible that these are becoming warped if no mirrored lay-ups are used. For this reason, we offer the Tenax® IMS65 types in +/- 45° as well as in -/+ 45° fibre orientation.

Application:
Motorsports, marine construction, sports equipment and model construction. This biaxial NCF has 2 unidirectional plies laid at an angle of ± 45° which are bonded with an epoxy-compatible binder to each other. Drapability is improved compared to conventional NCF with plastic scrim. Due to a very low thread deflection, the properties of the fibres are better exploited. Particular advantage: torsional layers could be done without an offcut.

Calculated data for hand laminates with 35 volume per cent fibres:
Resin consumption: 24 g/m², laminate thickness: 0.030 mm, laminate weight: 44 g/m²

Versions with Tenax® IMS65 for very robust, with Tenax® UMS40 for very stiff and with Tenax® HTS40 for robust parts are available.

Comparison of Tenax® Fibres

IMS65 UMS40 HTS40
Tensile strength, MPa 6000 4700 4400
Tensile modulus, GPa 290 390 240
Elongation at break, % 1.9 1.2 1.8

R&G is the official distributor of CARBOWEAVE spread tow fabrics. We are very pleased to now offer our customers the second generation of ultra-lightweight carbon fibre NCFs, which show a difference in quality through their appearance quite clearly. The fibre distribution is much more homogenous, thus the fabric itself does not incorporate clusters of fibres or holes. The fibre orientation –this is the even more important criterion– is absolutely straight and virtually free of undulation. Furthermore, improved surface quality is achieved in comparison to its preceding material.

R&G

CARBOWEAVE® 16 g/m² (-/+ 45°/ IMS65) roll/ 50 x 155 cm

Item no.  192016050-ABC-3 Only 4 left in stock  (delivery time 1-2 days)

Add to Shopping List

88,49
(Base Price 114,18 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 4:  10,00%
R&G

CARBOWEAVE® 16 g/m² (+/- 45°/ IMS65) roll/ 50 x 155 cm

Item no.  192016050-CBA-3 12 in stock  (delivery time 1-2 days)

Add to Shopping List

88,43
(Base Price 114,10 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 4:  10,00%

all Prices  price incl. VAT, possibly plus shipping

Videos

Hazards identification - CARBOWEAVE® IMS Carbon NCF 16 g/m² (biaxial)

Classification of the substance or mixture

The product is not classified according to the CLP regulation.
Labelling according to Regulation (EC) No 1272/2008: Void
Hazard pictograms: Void
Hazard statements: Void

Signal word: n/a
