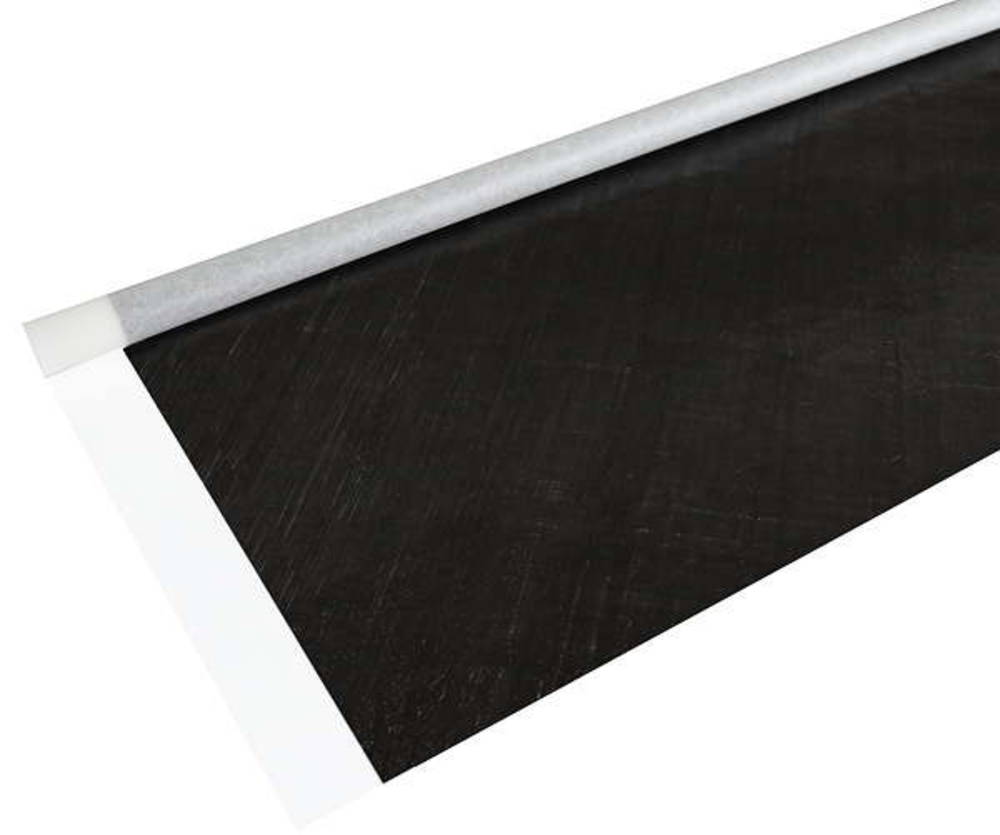

CARBOWEAVE® HTS Carbon NCF 62 g/m² (biaxial)

CARBOWEAVE® HTS Carbon NCF 62 g/m² (biaxial)

Due to a worldwide shortage of raw materials, there is, unfortunately, a delay in the delivery of this item.

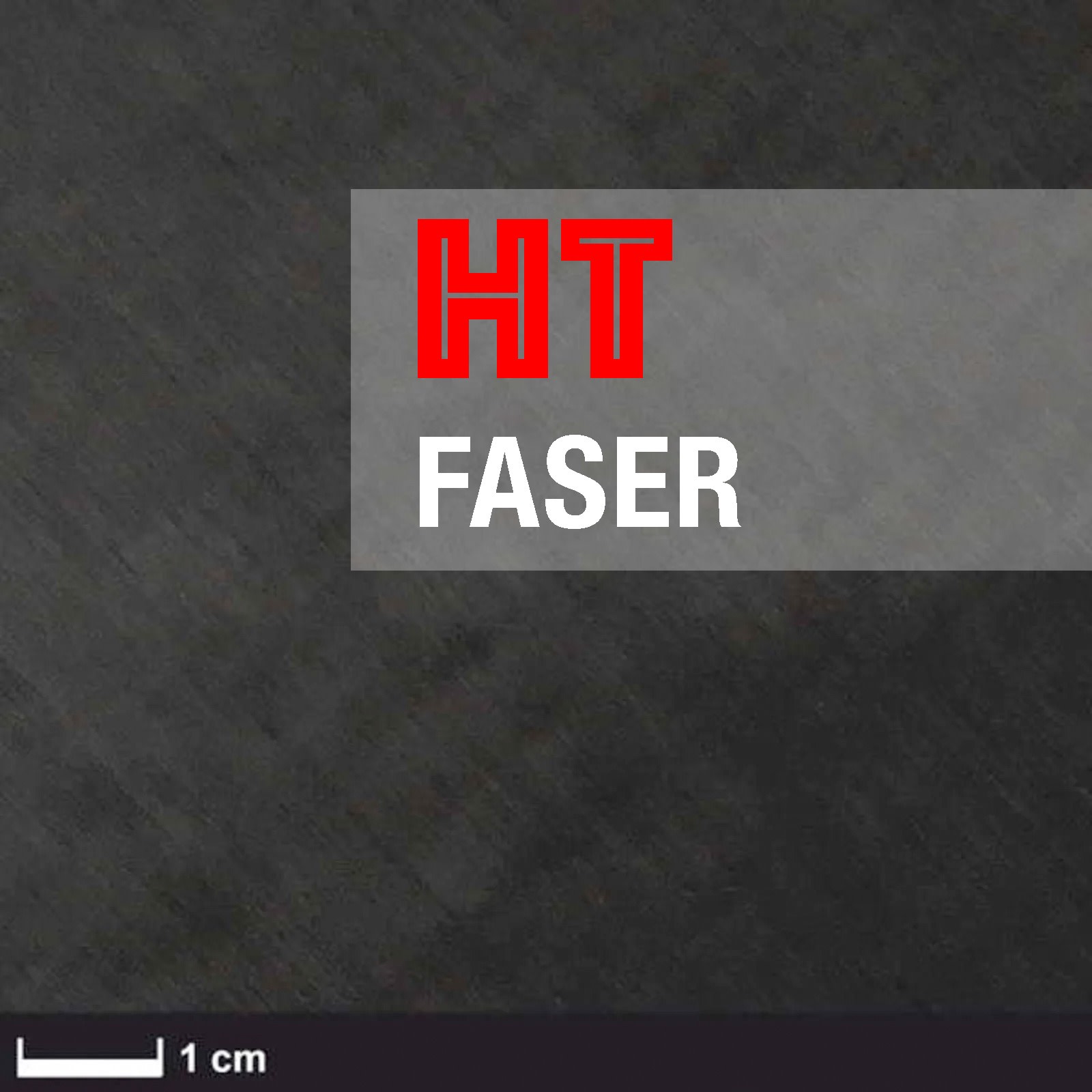

Fibre: Tenax® HTS40 12k / 800 tex

Width: 60 cm
Length: 310 cm

Surface weight (g/m²): 31 / 31

Construction: +/- 45° or -/+ 45°

Application:
Motorsports, marine construction, sports equipment and model construction. This biaxial NCF has 2 unidirectional plies laid at an angle of ± 45° which are bonded with an epoxy-compatible binder to each other. Drapability is improved compared to conventional NCF with plastic scrim. Due to a very low thread deflection, the properties of the fibres are better exploited. Particular advantage: torsional layers could be done without an offcut.

Calculated data for hand laminates with 35 volume per cent fibres:
Resin consumption: 74 g/m², laminate thickness: 0.10 mm, laminate weight: 136 g/m²

Versions with Tenax® IMS65 for very robust, with Tenax® UMS40 for very stiff and with Tenax® HTS40 for robust parts are available.

Comparison of TohoTenax® Fibres

IMS65 UMS40 HTS40
Tensile strength, MPa 6000 4700 4400
Tensile modulus, GPa 290 390 240
Elongation at break, % 1.9 1.2 1.8

R&G is the official distributor of CARBOWEAVE spread tow fabrics. We are very pleased to now offer our customers the second generation of ultra-lightweight carbon fibre NCFs, which show a difference in quality through their appearance quite clearly. The fibre distribution is much more homogenous, thus the fabric itself does not incorporate clusters of fibres or holes. The fibre orientation –this is the even more important criterion– is absolutely straight and virtually free of undulation. Furthermore, improved surface quality is achieved in comparison to its preceding materials

R&G

CARBOWEAVE® 62 g/m² (-/+ 45°/ HTS40) roll/ 60 x 310 cm

Item no.  192062060-ABC-3 Out of stock

Add to Shopping List

147,19
(Base Price 79,13 € /  m²)

Scaled Price

  • From Qty 2:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%
Currently not available.
We do not know when this item will be in stock again.

R&G

CARBOWEAVE® 62 g/m² (+/- 45°/ HTS40) roll/ 60 x 310 cm

Item no.  192062060-CBA-3 Out of stock

Add to Shopping List

147,19
(Base Price 79,13 € /  m²)

Scaled Price

  • From Qty 2:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%
Currently not available.
We do not know when this item will be in stock again.


all Prices  price incl. VAT, possibly plus shipping

Videos

Hazards identification - CARBOWEAVE® HTS Carbon NCF 62 g/m² (biaxial)

Classification of the substance or mixture

The product is not classified according to the CLP regulation.
Labelling according to Regulation (EC) No 1272/2008: Void
Hazard pictograms: Void
Hazard statements: Void

Signal word: n/a
