Threaded inserts made of brass alloy
Laminate calculator
Resin Calculator

climate-neutral shipping climate-neutral shipping
Newsletter Sign up


Poison information centre

  • The image shows two brass threaded inserts, labeled 'Standard' and 'Short'. The lower section illustrates their application in a cutaway view, highlighting the 'Short version for low space' and 'Standard size for optimal strength'.
  • The image shows a brass threaded insert with specifications M2.5 x 4.0. It includes a technical drawing and symbols indicating it is cadmium and lead-free, and REACH compliant. The insert is displayed with dimensions and a diagram showing its application in a blind hole and through hole.
  • The image shows two brass threaded inserts and a technical drawing with dimensions. A blue label indicates M2 x 3.0 size and 100 pieces. Icons show the product is cadmium-free, lead-free, and REACH compliant.
  • The image shows a brass threaded insert with a detailed technical drawing. It is labeled M3 x 5.7, 100 pieces, and is cadmium and lead-free. The technical drawing provides dimensions and installation instructions for blind and through holes.
  • The image shows a technical drawing and a photo of brass threaded inserts. The label indicates M4 x 8.1, 50 pieces, cadmium and lead-free, and REACH compliant.
  • The image shows brass threaded inserts with a size of M5 x 9.5, available in a pack of 50. The inserts are cadmium and lead-free, REACH compliant, and eco-friendly. A technical drawing with dimensions is included, showing a diameter of 7.1mm and length of 9.5mm. The drawing illustrates both blind and through hole applications.
  • The image shows a brass threaded insert labeled M6 x 12.7, available in a pack of 20. It features cadmium and lead-free certifications, and REACH compliance. The insert is depicted with a detailed technical drawing showing dimensions and specifications.
  • The image shows a product advertisement for M8 x 12.7 brass inserts, 20 pieces per package. The inserts are cadmium and lead-free, REACH compliant. The image includes a detailed technical drawing with dimensions and a photo of the inserts.
  • The image shows technical drawings of short and standard inserts with dimensions labeled in millimeters. It includes diagrams for M2x3, M2.5x4, M3x5.7, M4x8.1, M5x9.5, M6x12.7, and M8x12.7 inserts. Arrows indicate blind and through holes. The right side shows a generic insert diagram with labeled dimensions D1, D2, D3, L, and W.
  • The image displays four icons on a blue background. The first icon shows a green earth with leaves, symbolizing eco-friendliness. The second icon reads
The image shows brass threaded inserts labeled 'short' and 'standard'. They are advertised as cadmium and lead-free, and REACH compliant.

Brass alloy

CNC Kitchen
more products by cnckitchen

Threaded inserts made of brass alloy

Product range adjustment. This discontinued item is of perfect quality and free from defects. Available while stock last.

Brass Threaded Inserts for CFRP and Lightweight Structures

These CNC-machined brass threaded inserts enable the creation of strong and durable threaded connections in CFRP tubes, plastic components, and other lightweight structures. They provide a stable, wear-resistant thread suitable for repeated assembly and disassembly.

Particularly in lightweight construction, the inserts allow the easy creation of threaded tube ends and attachment points. CFRP tubes can be securely connected to one another or fastened to CFRP plates, brackets, tabs, and other components.

The threaded inserts can be thermally installed into thermoplastics or permanently bonded into CFRP tubes, CFRP plates, and other composite semi-finished products using suitable epoxy adhesives. This makes it possible to create strong and reliable attachment points even in thin-walled lightweight structures.

Typical applications include drones and UAVs, robotics, model building, measurement and testing equipment, camera and film equipment, motorsports, automation systems, and lightweight frames and support structures.

Features

  • CNC-machined brass construction
  • High strength and long-term durability
  • For reliable threaded connections in CFRP and plastic components
  • Ideal for lightweight construction, robotics, model making, and industrial applications
  • Suitable for thermal installation or bonding with epoxy adhesives

Amazon Pay Apple Pay Visa Card Mastercard PayPal SEPA

cnckitchen

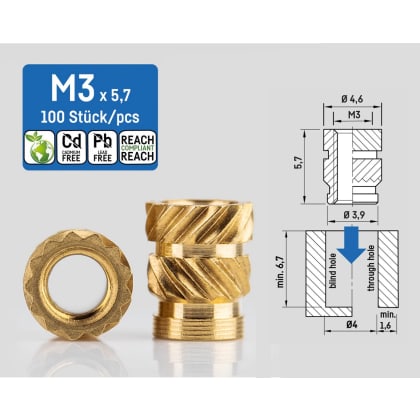

Threaded insert STANDARD (M3 x 5.7 mm) pack/ 100 pcs

Threaded insert STANDARD (M3 x 5.7 mm) pack/ 100 pcs

Item no.  306030057 Out of stock

Add to Shopping List
7,61 €
11,35 €
(Base Price 0,08 € /  pc. )

cnckitchen

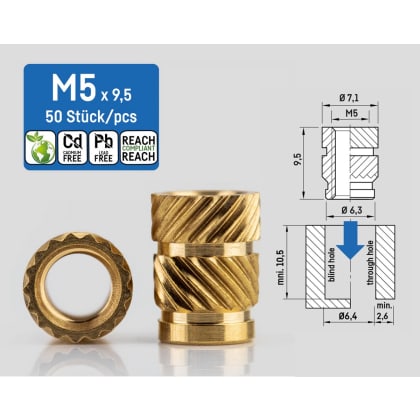

Threaded insert STANDARD (M5 x 9.5 mm) pack/ 50 pcs

Threaded insert STANDARD (M5 x 9.5 mm) pack/ 50 pcs

Item no.  306050095 13 in stock  (delivery time 1-2 days)

Add to Shopping List
10,47 €
15,62 €
(Base Price 0,21 € /  pc. )
cnckitchen

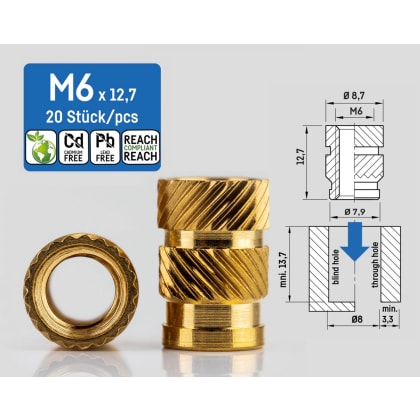

Threaded insert STANDARD (M6 x 12.7 mm) pack/ 20 pcs

Threaded insert STANDARD (M6 x 12.7 mm) pack/ 20 pcs

Item no.  306060127 28 in stock  (delivery time 1-2 days)

Add to Shopping List
8,40 €
12,53 €
(Base Price 0,42 € /  pc. )
cnckitchen

Threaded insert STANDARD (M8 x 12.7 mm) pack/ 20 pcs

Threaded insert STANDARD (M8 x 12.7 mm) pack/ 20 pcs

Item no.  306080127 Only 4 left in stock  (delivery time 1-2 days)

Add to Shopping List
8,43 €
12,58 €
(Base Price 0,42 € /  pc. )

all Prices  price incl. VAT, possibly plus shipping
