Precise vacuum adjustment with direct pressure monitoring.

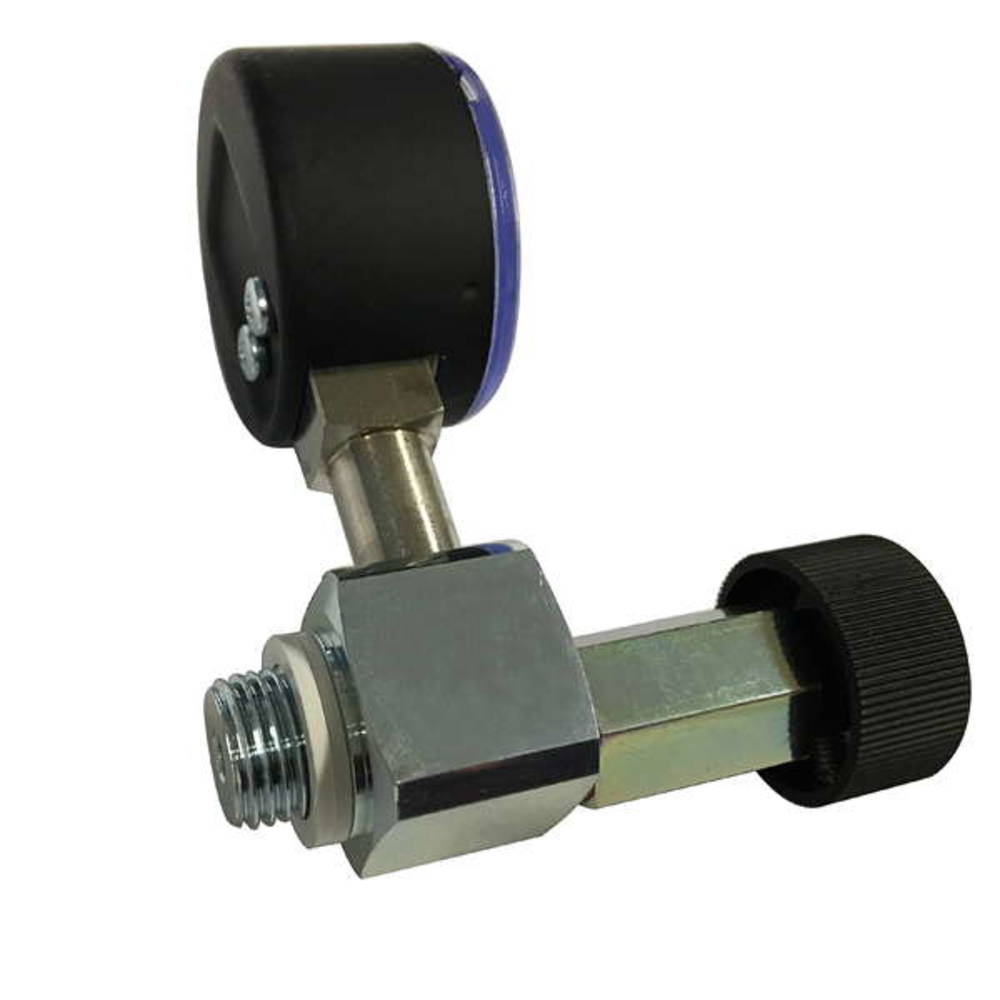

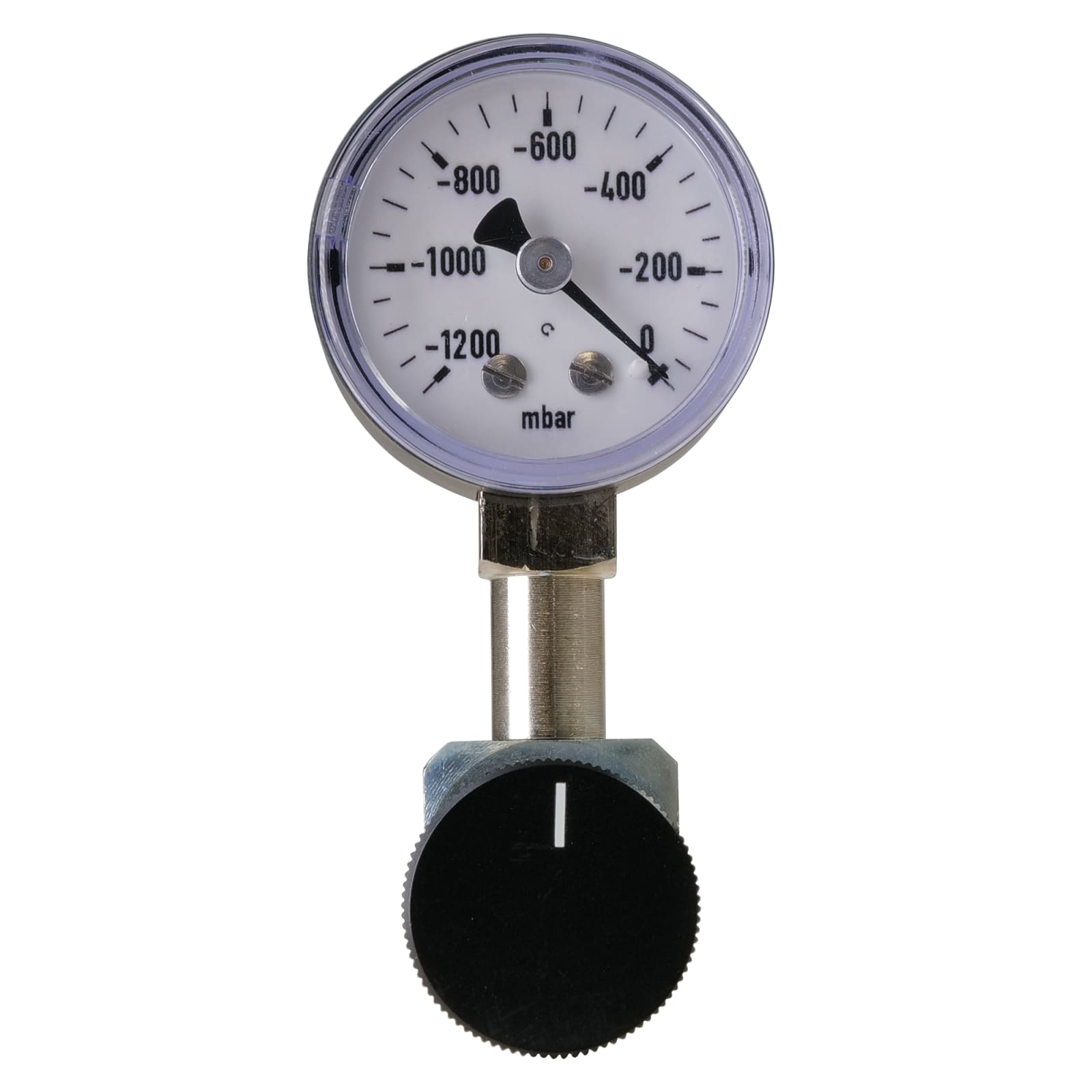

The fine adjustment valve with integrated vacuum gauge allows manual adjustment and monitoring of vacuum levels in composite manufacturing processes. Designed as a replacement assembly for R&G vacuum pumps P2-N, P3 and P3-Special, it combines easy operation with direct vacuum pressure indication.
The fine adjustment valve with vacuum gauge enables the vacuum level to be adjusted to suit specific process requirements. Vacuum pressure can be controlled manually using the valve and monitored directly on the integrated gauge.
The assembly is suitable as a replacement part for R&G vacuum pumps P2-N, P3 and P3-Special.
Technical Specifications
| Design |
Fine adjustment valve with integrated vacuum gauge |
| Function |
Manual vacuum level adjustment and pressure indication |
| Compatibility |
R&G vacuum pumps P2-N, P3 and P3-Special |
Benefits
- Fine manual adjustment of vacuum levels
- Direct pressure monitoring via the integrated vacuum gauge
- Adjustment valve and pressure gauge combined in one assembly
- Suitable replacement part for several R&G vacuum pump models
Application and Installation
The fine adjustment valve allows the vacuum level to be adapted to the requirements of the respective process, including vacuum bagging and composite laminating applications. The adjusted vacuum level can be monitored directly on the integrated gauge.
Assembly instruction P3-Special (PDF)
