Infusion mesh DIANET 135, width 200 cm
Laminate calculator
Resin Calculator

climate-neutral shipping climate-neutral shipping
Newsletter Sign up


Poison information centre

  • A close-up of a white mesh fabric with a regular, open weave pattern, placed on a dark, textured surface.
  • A roll of white fabric-like material with a textured surface, partially unrolled, on a plain background.
  • A close-up of a white textured fabric roll. The fabric has a grid-like pattern and appears soft.

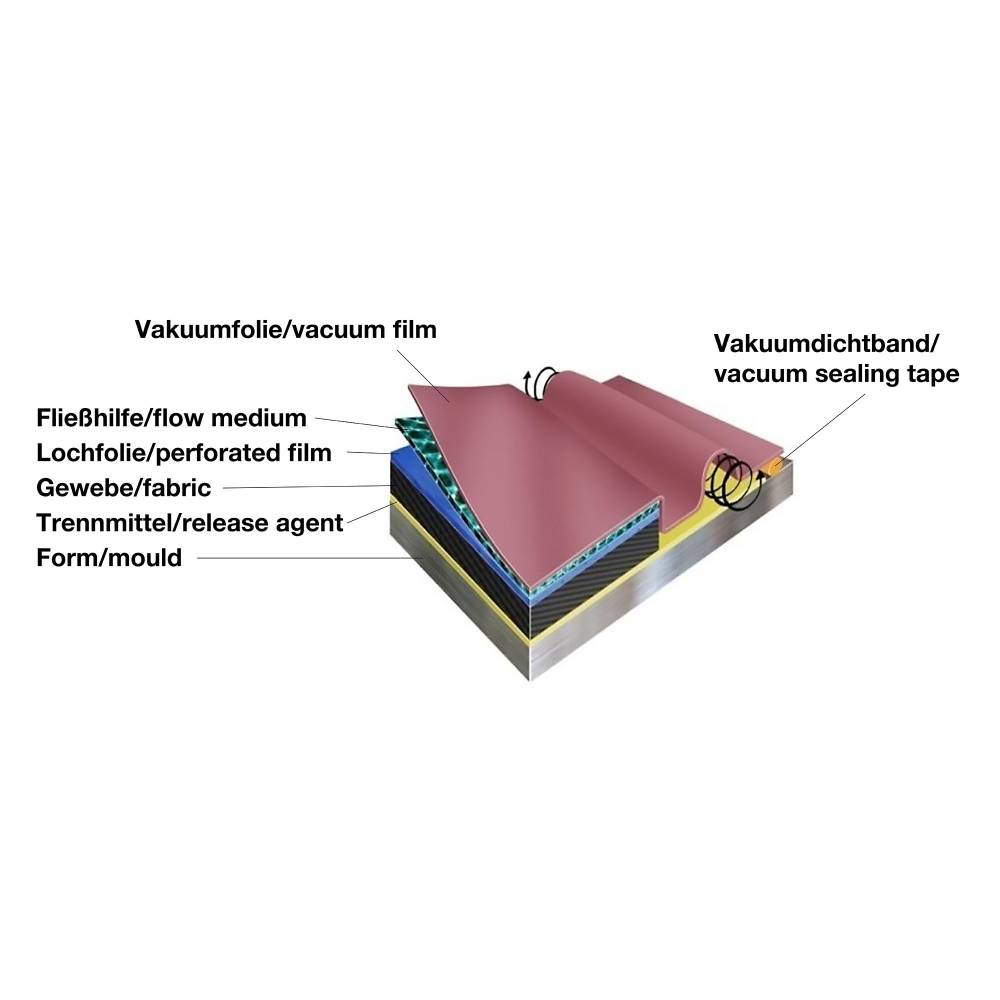

  • The image shows a cross-section of materials used in vacuum bagging for composite manufacturing. It includes layers like vacuum film, vacuum sealing tape, flow medium, perforated film, fabric, release agent, and mould. Each layer is labeled in both German and English.
The image shows a close-up of a black fabric or mesh with a repetitive pattern. There is a scale indicating 1 cm at the bottom.

Very fast resin flow, max. 90 °C

Diatex
more products by Diatex

Infusion mesh DIANET 135, width 200 cm

USA: width 78.74", weight 4.0 oz/yd²

Product range adjustment. This discontinued item is of perfect quality and free from defects. Available while stock last.

This infusion mesh from DIATEX is used in the resin infusion process to distribute the resin uniformly.

Technical data:

  • Weight: 135 g/m²
  • Max. temperature: 90 °C
  • Thickness: 1190 µm
  • Polyethylene
  • Self-releasing
  • Colour: white
  • Flow speed: very fast
  • Resin consumption: 489 g/m² (14.4 oz/yd²)

Typical configuration:

  1. Fabric/NCF
  2. Peel ply
  3. Perforated film P1
  4. Resin distribution mesh (in suitable version)
  5. Vacuum film RI 200

Amazon Pay Apple Pay Visa Card Mastercard PayPal SEPA

Diatex

Infusion mesh DIANET 135, 200 cm, Pack/ 1 m

The image shows a close-up of a black fabric or mesh with a repetitive pattern. There is a scale indicating 1 cm at the bottom.

(= 2 m²)

Item no.  3901831 Only 3 left in stock  (delivery time 1-2 days)

Add to Shopping List
8,32 €
12,41 €
(Base Price 4,16 € /  m² )

Scaled Price

  • From Qty 1:  33,00%
Diatex

Infusion mesh DIANET 135, 200 cm, pack/ 2 m

The image shows a close-up of a black fabric or mesh with a repetitive pattern. There is a scale indicating 1 cm at the bottom.

(= 4 m²)

Item no.  3901832 Only 4 left in stock  (delivery time 1-2 days)

Add to Shopping List
13,74 €
20,50 €
(Base Price 3,44 € /  m² )

Scaled Price

  • From Qty 1:  33,00%
Diatex

Infusion mesh DIANET 135, 200 cm, roll/ 3 m

The image shows a close-up of a black fabric or mesh with a repetitive pattern. There is a scale indicating 1 cm at the bottom.

(= 6 m²)

Item no.  3901833 Only 4 left in stock  (delivery time 1-2 days)

Add to Shopping List
24,51 €
36,58 €
(Base Price 4,09 € /  m² )

Scaled Price

  • From Qty 1:  33,00%
Diatex

Infusion mesh DIANET 135, 200 cm, roll/ 5 m

The image shows a close-up of a black fabric or mesh with a repetitive pattern. There is a scale indicating 1 cm at the bottom.

(= 10 m²)

Item no.  3901834 Only 4 left in stock  (delivery time 1-2 days)

Add to Shopping List
32,87 €
49,06 €
(Base Price 3,29 € /  m² )

Scaled Price

  • From Qty 1:  33,00%
Diatex

Infusion mesh DIANET 135, 200 cm, roll/ 10 m

The image shows a close-up of a black fabric or mesh with a repetitive pattern. There is a scale indicating 1 cm at the bottom.

(= 20 m²)

Item no.  3901835 Only 2 left in stock  (delivery time 1-2 days)

Add to Shopping List
59,34 €
88,56 €
(Base Price 2,97 € /  m² )

Scaled Price

  • From Qty 1:  33,00%
Diatex

Infusion mesh DIANET 135, 200 cm, roll/ 20 m

The image shows a close-up of a black fabric or mesh with a repetitive pattern. There is a scale indicating 1 cm at the bottom.

(= 40 m²)

Item no.  3901836 Only 1 left in stock  (delivery time 1-2 days)

Add to Shopping List
109,17 €
162,93 €
(Base Price 2,73 € /  m² )

Scaled Price

  • From Qty 1:  33,00%
Diatex

Infusion mesh DIANET 135, 200 cm, roll/ 130 m

The image shows a close-up of a black fabric or mesh with a repetitive pattern. There is a scale indicating 1 cm at the bottom.

(= 260 m²)

Item no.  3901838 Only 2 left in stock  (delivery time 1-2 days)

Add to Shopping List
572,27 €
854,13 €
(Base Price 2,20 € /  m² )

Scaled Price

  • From Qty 1:  33,00%
