Aramid honeycomb 29 kg/m³ (Aero), 1120 x 2440 mm, cell size: 3.2 mm
  • The image shows a workshop table with a vacuum bagging setup. There are tubes and a pump connected to the setup, and a blue object is visible in the background.
  • The image shows a close-up of a composite material piece, possibly part of a manufacturing process. The material appears to be a fiber-reinforced component, partially covered with a translucent sheet. The background is a plain surface, possibly a table or workbench.
  • The image shows four different views of the Silence Twister ultralight aircraft. Each image displays the aircraft in flight, highlighting its sleek design and aerodynamic features. The top left shows a close-up of the aircraft with a blue and white color scheme. The top right features two aircrafts in a dynamic flying pose, emphasizing the lightweight construction. The bottom left presents a side view with a distinctive logo on the fuselage. The bottom right captures a pair of aircrafts flying over a landscape, showcasing their agility and performance.
  • A person is working with a fiberglass or similar material, placing it onto a mold. The hands are adjusting the material carefully.
  • The image shows a close-up of a layered honeycomb structure made of brown material. The hexagonal pattern is clearly visible.
  • Diagram showing the configuration of a hexagonal honeycomb with dimensions and labels in German and English. It includes measurements for cell width, hexagonal side length, honeycomb width, length, and panel thickness.

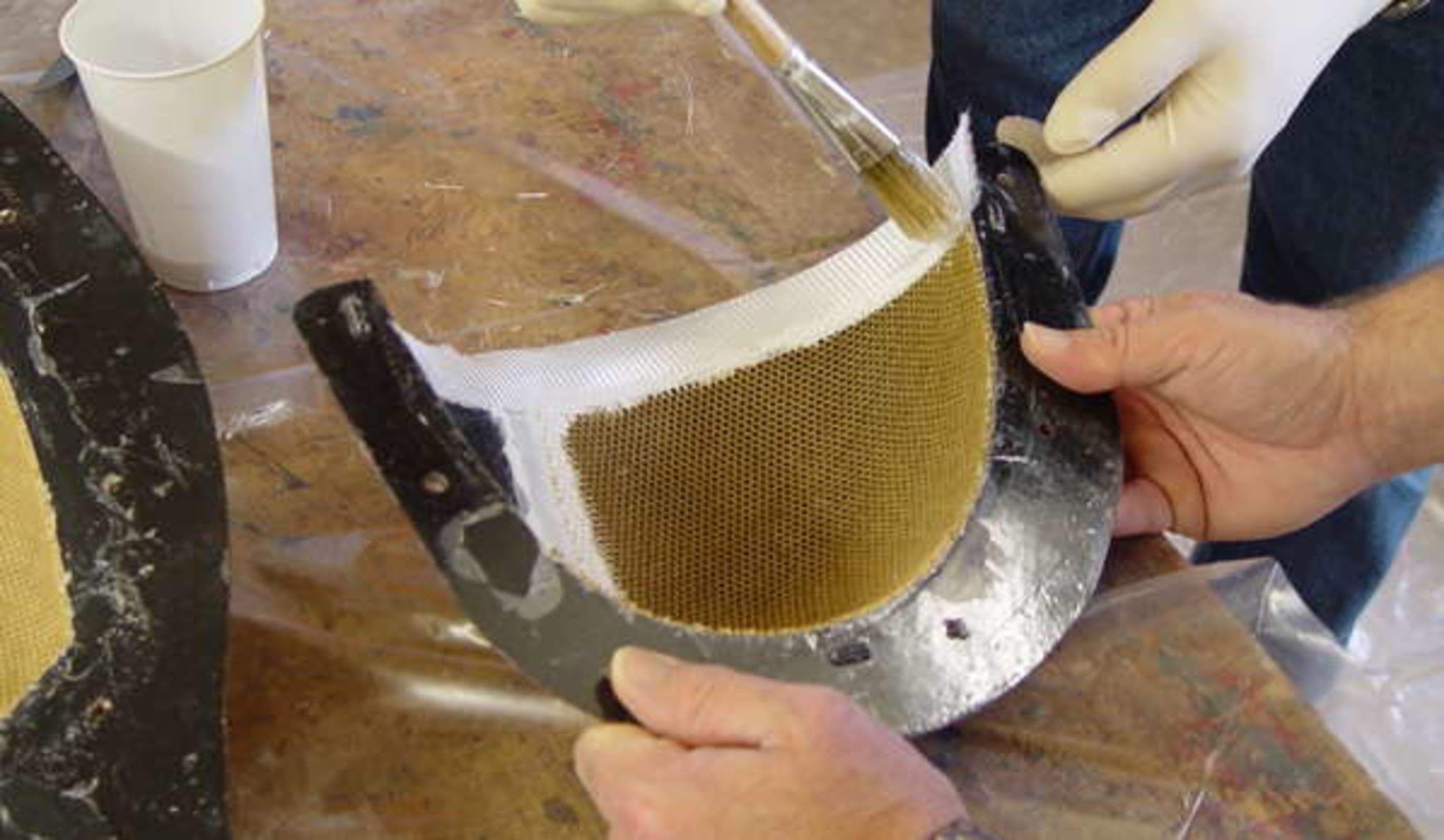

People working on a piece of material, possibly a composite, with a brush and gloves. The material has a honeycomb structure.

1.5 mm, 2 mm, 3 mm and 5 mm

Aramid honeycomb 29 kg/m³ (Aero), 1120 x 2440 mm, cell size: 3.2 mm

Light supporting material produced from aramid paper for fibre compound parts in sandwich construction

  • Excellent mechanical properties in relation to weight
  • High dimensional stability in heat and moisture
  • High-temperature resistance, service temperatures up to 180° C
  • Uniform product properties due to very good resin-paper bond
  • Self-extinguishing and low fume emission
  • Corrosion-resistant to water, oils, and paraffin

Material as per aircraft standards

With reference to weight, honeycombs have the greatest resistance to pressure among all support materials and extremely good resistance to chemicals, impact, vibration, and fatigue. They are also very flexible and thus also suitable for components with spherical roundings. Mould pressure is used to bond honeycombs. A vacuum bag is normally used.

Technical data:

Honeycomb type
C1 - 3.2 - 29


Compressive strength
(MPa)


Shear strength
(MPa)


Shear modulus
(MPa)

Production tolerances


Cell size
(mm)

Density
(kg/m³)

Dimensions
(mm)
bare stabilised Length Width Length Width Length
(mm)
Width (mm)

Thickness
(mm)

Weight (%)
Cell size
(%)
3,2
29 1120 x 2440 0,56 0,75 0,45 0,3 15,0 11,0 ± 50 ± 75 ± 0,13 ± 10 ± 10
cormaster

Aramid Honeycomb -AERO- C1-3.2-29 (2440 x 1120 mm) T = 1.5 mm

L: 1120 mm (+/- 50 mm), W: 2440 mm (+/- 75 mm) = approx. 2.37 m², approx. 45 g/m²

Item no.  5003229-015-A-3 Only 2 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

187,60
(Base Price 67,00 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%
cormaster

Aramid Honeycomb -AERO- C1-3.2-29 (2440 x 1120 mm) T = 2 mm

L: 1120mm (+/- 50 mm), W: 2440 mm (+/- 75 mm) = approx. 2.37 m², approx. 58 g/m²

Item no.  5003229-020-A-3 Only 5 left in stock  (delivery time 1-2 days)

Add to Shopping List

232,05
(Base Price 82,88 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%
cormaster

Aramid Honeycomb -AERO- C1-3.2-29 (2440 x 1120 mm) T = 3.0 mm

L: 1120 mm (+/- 50 mm), W: 2440 mm (+/- 75 mm) = approx. 2.73 m², approx. 87 g/m²

Item no.  5003229-030-A-3 Only 3 left in stock  (delivery time 1-2 days)

Add to Shopping List

270,31
(Base Price 96,54 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%
cormaster

Aramid Honeycomb -AERO- C1-3.2-29 (2440 x 1120 mm) T = 5.0 mm

L: 1120 mm (+/- 50 mm), W: 2440 mm (+/- 75 mm) = approx. 2.73 m², approx. 145 g/m²

Item no.  5003229-050-A-3 In 15 days

Add to Shopping List

316,00
(Base Price 115,75 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%

all Prices  price incl. VAT, possibly plus shipping
