CARBON fibre tubes wound ± 45°, plain weave (3k)

Product range adjustment. This discontinued item is of perfect quality and free from defects. Available while stock last.

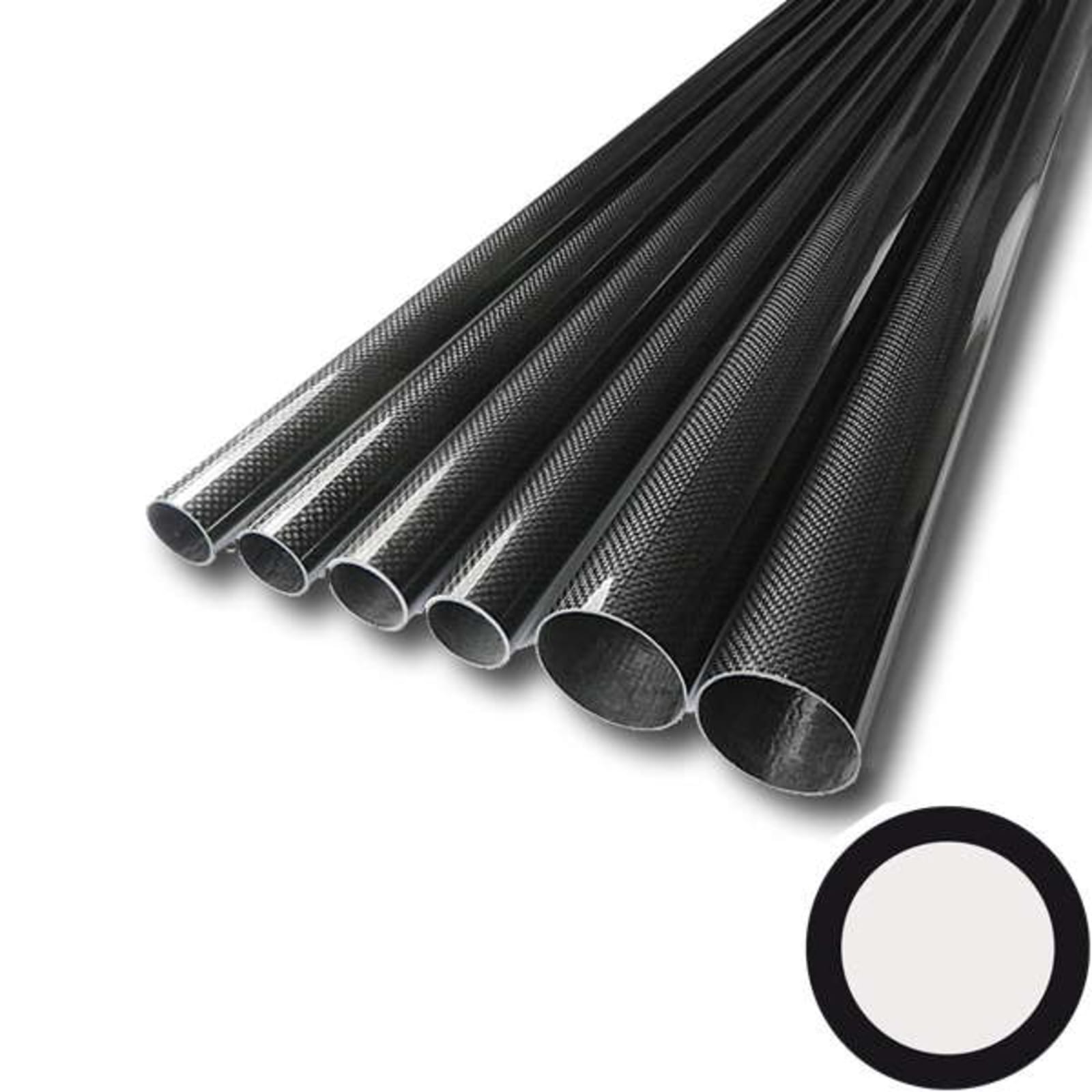

Roll wrapped carbon fibre tubes with a smooth surface finish of 3k carbon fabric prepreg in plain weave, clear-coated glossy. Subjacent layers from unidirectional non-crimp fabric. High-quality epoxy resin matrix.

Fibre orientation:

• Surface layer: ± 45°
• Core layers: 0°

Characteristics:
Lightweight, excellent corrosion and heat resistance and electrical conductivity. Very good torsional, flexural and hoop stiffness.

After laminating, the wound CFK round tubes are ground (round) to size and then coated.

Tolerances:
Deviation in diameter ± 0.1 mm. Deviation in straightness max. 2 mm/m. The measured values are generally far below the maximum.
