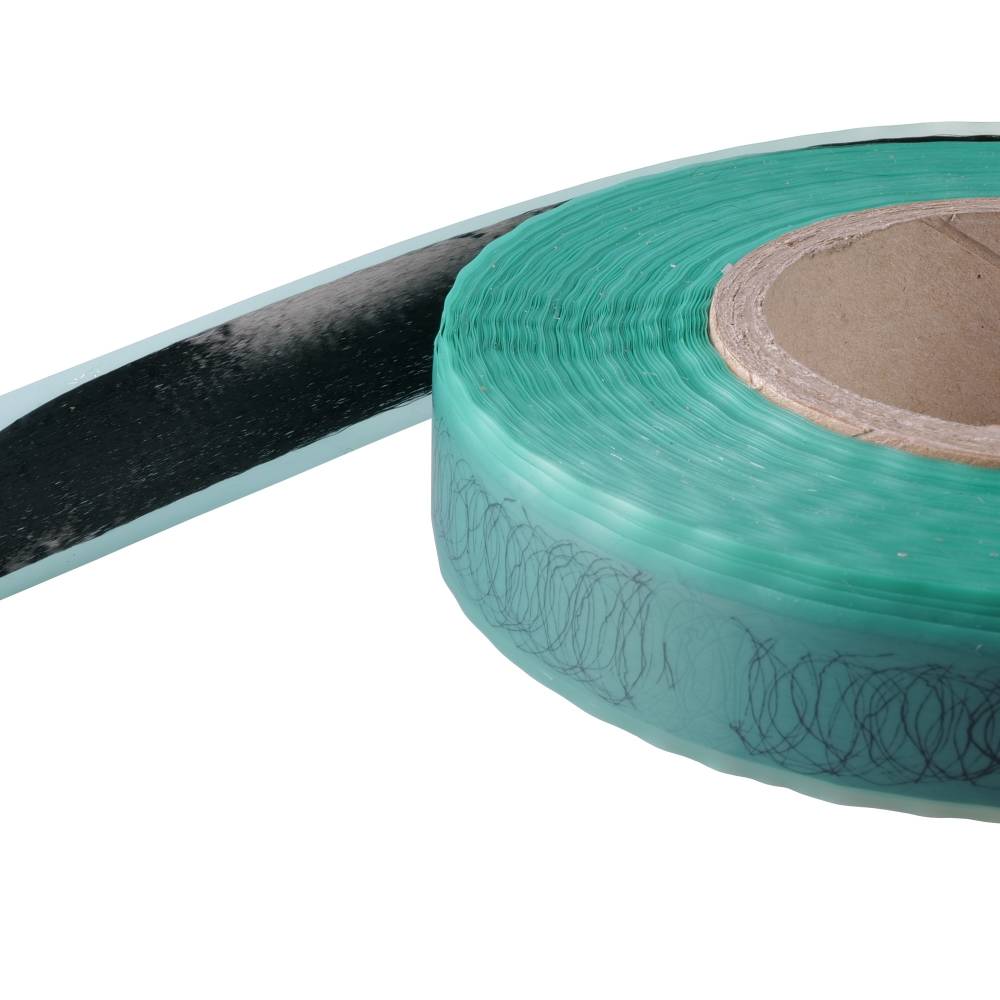

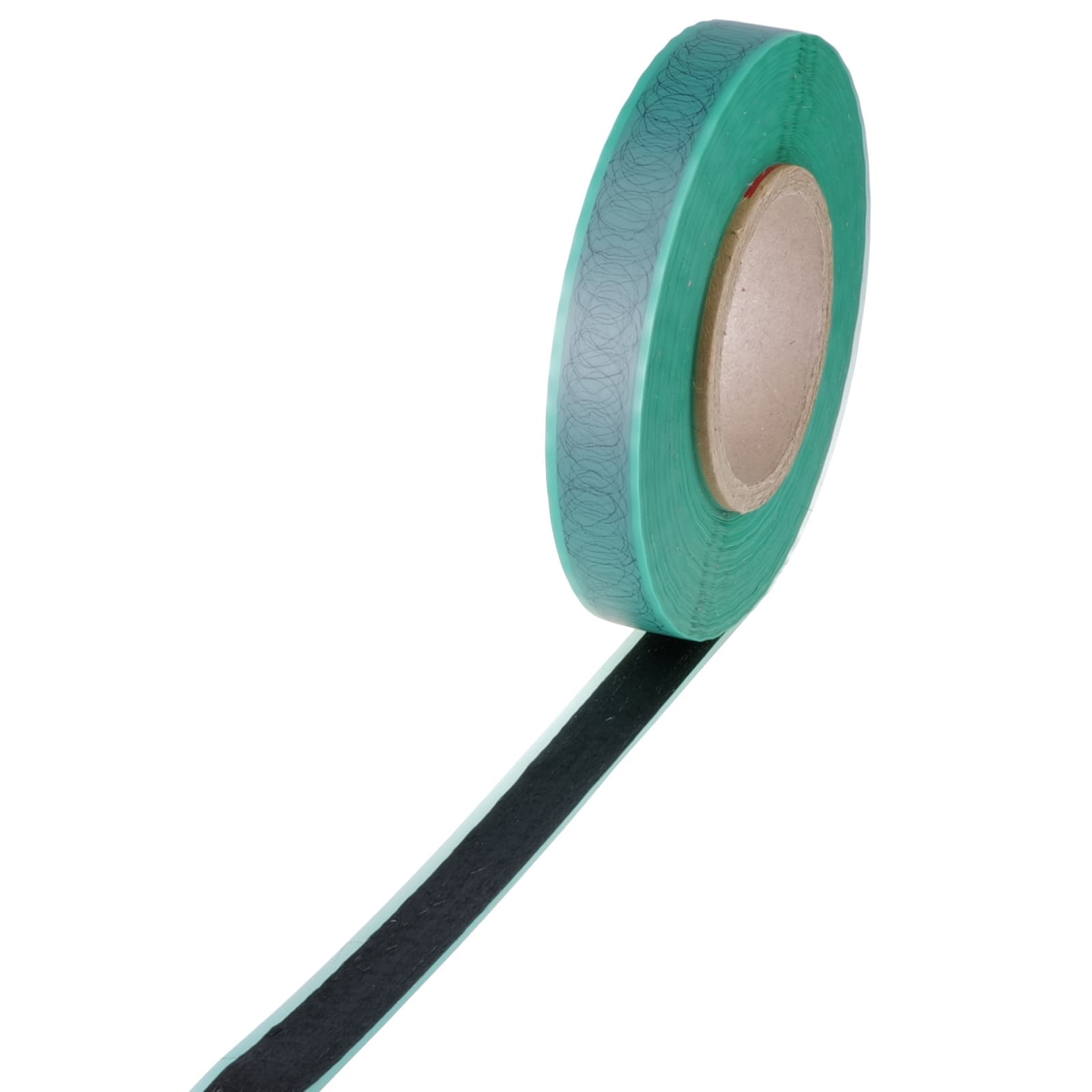

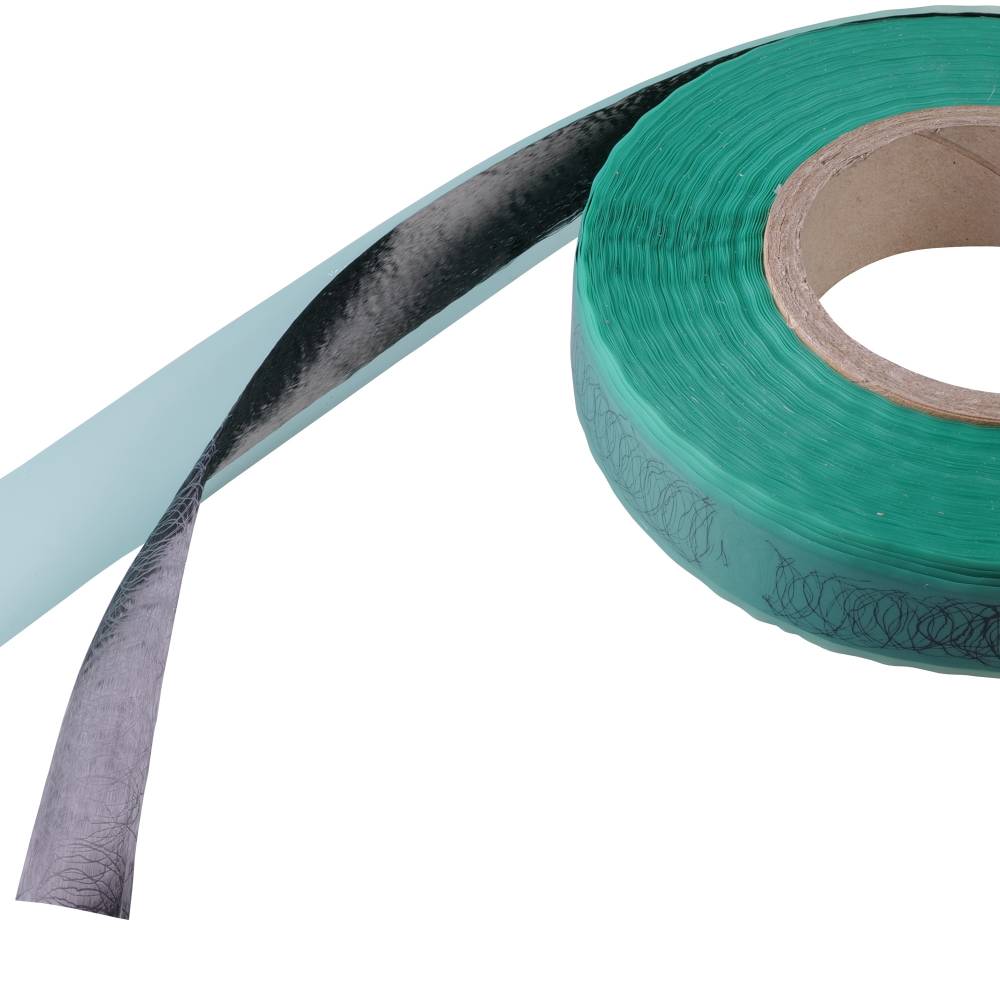

A roll of carbon fibre tape on a green carrier film is partially unrolled. The tape is on a cylindrical cardboard core.

Roll / 100 m

TeXtreme® Carbon fibre tape 40 g/m² (HT, UD) 20 mm

USA: width 0.79", weight 1.18 oz/yd²

Fibre: Tenax® UTS50 F22 12K 800tex

Width: 20 mm
Tensile strength: 5000 MPa
Tensile modulus: 240 GPa
Elongation: 2.1 %
Density: 1.77 g/cm²
Filament-Ø: 7 μm

TeXtreme® - Lightweight Carbon UD tapes

TeXtreme® Spread Tow tapes (STT) deliver significant weight savings and increased performance for your composite products.
The specified tissue weight increases by the binder to about 10 g/m².

Key benefits of TeXtreme®:

• Extremely straight fibers
• No holding threads
• Easy to handle and cut due to a stable structure

Application:
Spars are rolled components requiring solidity and rigidity in a specified direction.

TeXtreme® on Facebook

Conversion of SI units: 1 MPa (Megapascal) = 1 N/mm² = 0,102 kg/mm²

TeXtreme® Carbon tape 40 g/m², HT, UD (20 mm) roll/ 100 m

Item no. TX-040020-5 11 in stock (delivery time 1-2 days)

Add to Shopping List

Precautionary statements	H-statements
H315	Causes skin irritation.
H317	May cause an allergic skin reaction.

Precautionary statements	P-statements
P101	If medical advice is needed, have product container or label at hand.
P102	Keep out of reach of children.
P261	Avoid breathing dust/fume/gas/mist/vapours/spray.
P280	Wear protective gloves / protective clothing / eye protection / face protection.
P333 P313	If skin irritation or a rash occurs: Get medical advice / attention.
P501	Dispose of waste according to applicable legislation.

TeXtreme® Carbon fibre tape 40 g/m² (HT, UD) 20 mm

USA: width 0.79", weight 1.18 oz/yd²

TeXtreme® Carbon tape 40 g/m², HT, UD (20 mm) roll/ 100 m

Article information

Hazards identification - TeXtreme® Carbon fibre tape 40 g/m² (HT, UD) 20 mm

Pictograms:

Hazard statements

Precautionary statements
