    Epoxy Resin L + Hardener CL (60 min)

    Hardener for Epoxy Resin L

    The resin system Epoxy Resin L + Hardener CL yields superior impregnating and wetting properties towards carbon, glass, aramid and natural fibres. It is especially suitable for carbon coating of automotive parts.

    • Low-viscous
    • High degree of UV stability
    • Tack-free curing even of thin layers
    • Glass transition temperature (Tg) > 90 °C (post-curing at 70 °C / 15 h)
    • High static and dynamic strength (equal to Epoxy Resin L 285 with Hardener 285)
    • Free of nonylphenol and DETA

    Processing time: 60 minutes (100 g / 20 °C)

    Mixing ratio:
    100 : 30 parts by weight resin : hardener
    100 : 35 parts by volume resin : hardener

    The resin system is ambient curing and develops no distinctive brittleness even at curing temperatures below 20 °C (for at least 48 h). We however recommend, to improve the physical and chemical properties, to perform a post-curing at least at 40 °C over 15 h.

    It exhibits a very good price/performance ratio and is suitable for the following processing procedures:

    • Hand laminating
    • Vacuum moulding
    • Press moulding

    Mechanical properties (pure resin cured*) of Epoxy Resin L + Hardener CL

    Flexural test

    Flexural strength DIN EN ISO 178 in MPa 137
    Surface strain at maximum stress 6.8 %
    Surface strain (no specimen failure) 7 %
    Flexural modulus 3220

    Tensile test

    Tensile strength (DIN EN ISO 527) in MPa 82.8
    Elongation at maximum strain 4.9 %
    Elongation at break 5.5 %
    Tensile modulus in MPa 3190

    Compression test

    Compressive strength (DIN EN ISO 604) at 6 % compression

    111

    Shrinkage
    Linear shrinkage (DIN EN 12617-1) 0.3 %

    *at 1 h 23 °C + 5 h 70 °C + 5 h 80 °C)

    CYTOX Expertise for the resin system Epoxy resin L + Hardener CL: this system is not cytotoxic (cell damaging), important for applications in medical purposes!

    Please order Epoxy Resin L separately.

    Epoxy Resin L + Hardener CL (60 min) kit/ 930 g

    R&G

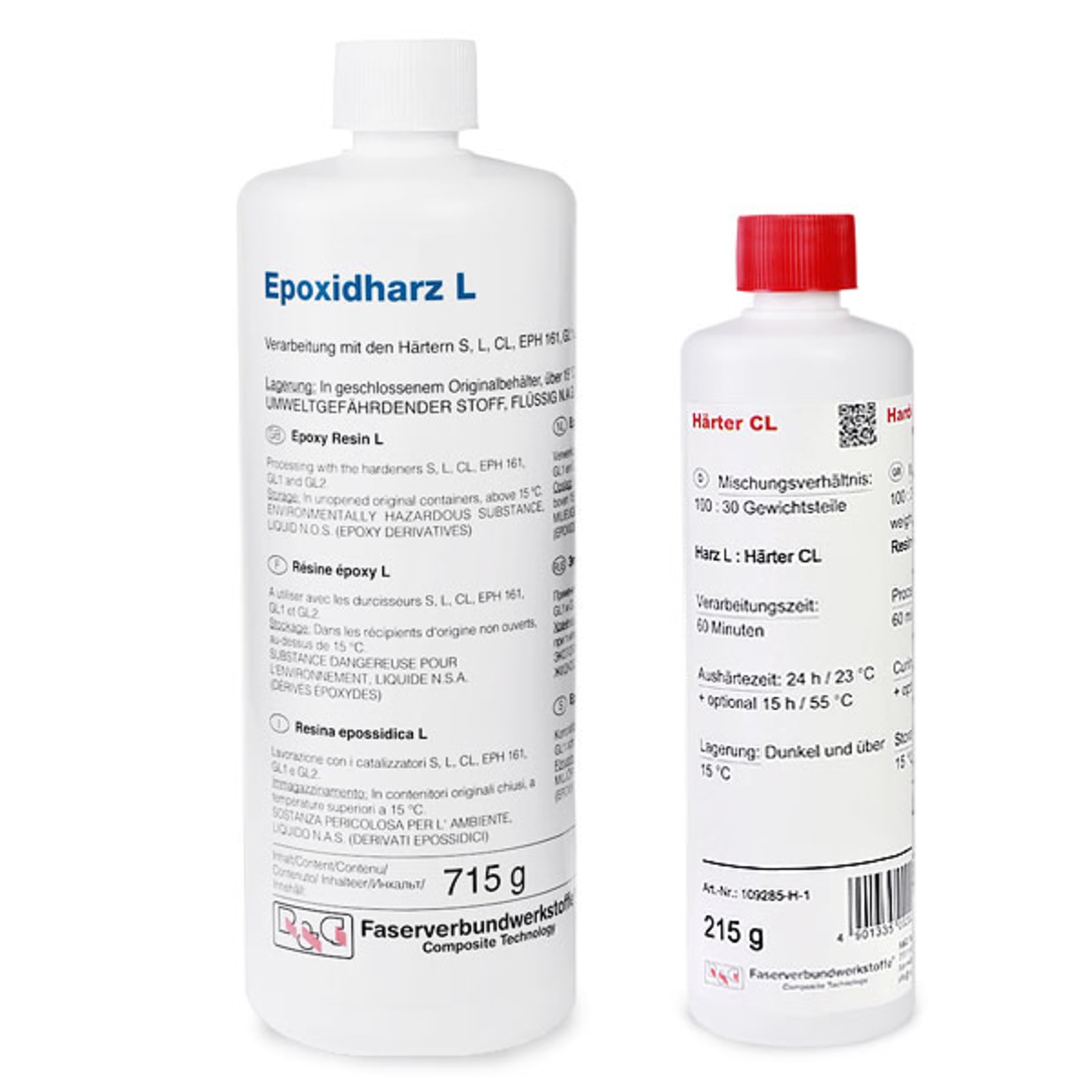

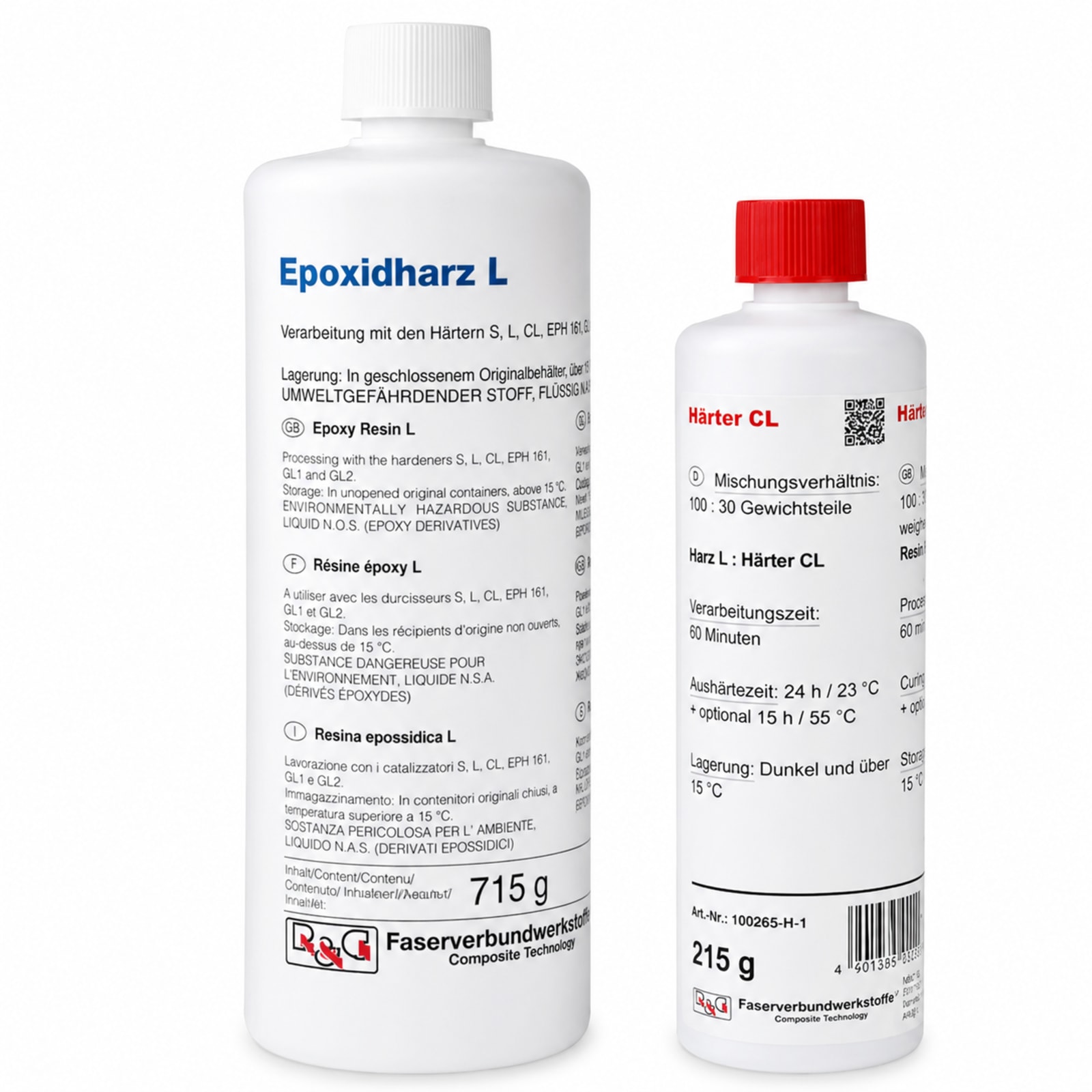

    715 g resin L + 215 g hardener CL

    Item no.  109285-AP-2 64 in stock  (delivery time 1-2 days)

    Add to Shopping List

    LogControl ab 27/28.März 2017
    25,35 €
    (Base Price 27,26 € /  kg)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    - +

    Epoxy Resin L + Hardener CL (60 min) kit/ 3,25 kg

    R&G

    2,5 kg Resin L + 725 g Hardener CL

    Item no.  109285-AP-3 31 in stock  (delivery time 1-2 days)

    Add to Shopping List

    LogControl ab 27/28.März 2017
    71,32 €
    (Base Price 21,94 € /  kg)

    Scaled Price

    • From Qty 2:  5,0%
    - +

    all Prices  price incl. VAT, possibly plus shipping

    Article information

    type: ga
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]
    Instructions for use
    type: si
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]
    MSDS
    MSDS Epoxy Resin L (PDF)
    MSDS Hardener CL (60 Min.) (PDF)
    type: pi
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]
    Product information
    type: td
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]
    Processing information Epoxy resin systems (PDF)
    Processing information Epoxy resin systems (PDF)
    CYTOX Test report with Hardener CL (PDF)
    Technical Data Sheet Epoxy Resin L and Hardeners (PDF)
    type:
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]

    Hazards identification - Epoxy Resin L

    Hazard components for labelling

    2,2'-[(1-methylethylidene)bis(4,1-phenyleneoxymethylene)] bisoxirane
    1,6-bis(2,3-epoxypropoxy)hexane
    Reaction mass of 2,2'-[methylenebis(4,1-phenyleneoxymethylene)]dioxirane and [2-({2-[4- (oxiran-2-ylmethoxy)benzyl]phenoxy}methyl)oxirane and [2,2'-[methylenebis(2,1-phenyleneoxymethylene)]dioxirane

    Signal word: Warning

    Pictograms:

    GHS07 GHS09

    Hazard statements

    H315 Causes skin irritation.
    H317 May cause an allergic skin reaction.
    H319 Causes serious eye irritation.
    H411 Toxic to aquatic life with long lasting effects.
    H412 Harmful to aquatic life with long lasting effects

    Precautionary statements

    P261 Avoid breathing dust/fume/gas/mist/vapours/spray.
    P273 Avoid release to the environment.
    P280 Wear protective gloves / protective clothing / eye protection / face protection.
    P305 P351 P338 IF IN EYES: Rinse continuously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing.
    P501 Dispose of waste according to applicable legislation.

    Special labelling of certain mixtures

    EUH205 Contains epoxy constituents. May produce an allergic reaction.

    Hazards identification - Hardener CL (60 min)

    Hazard components for labelling

    3-aminomethyl-3,5,5-trimethylcyclohexylamine
    benzyl alcohol
    salicylic acid
    Phenol, styrenated

    Signal word: Danger

    Pictograms:

    GHS05 GHS07

    Hazard statements

    H302 Harmful if swallowed.
    H314 Causes severe skin burns and eye damage.
    H317 May cause an allergic skin reaction.
    H318 Causes serious eye damage.
    H412 Harmful to aquatic life with long lasting effects

    Precautionary statements

    P260 Do not breathe dust / fume / gas / mist / vapours / spray.
    P303 P361 P353 IF ON SKIN (or hair): Remove/Take off immediately all contaminated clothing. Rinse skin with water or shower.
    P310 Immediately call a POISON CENTER or doctor / physician.
    P362 P364 Take off contaminated clothing and wash it before reuse.
    P405 Store locked up.
    P501 Dispose of waste according to applicable legislation.
