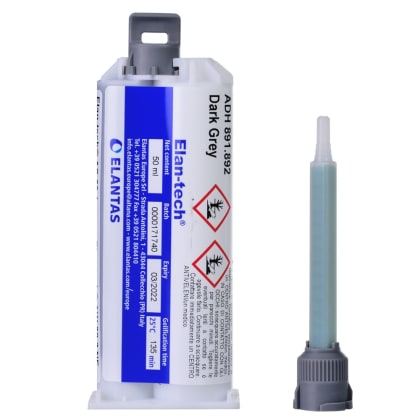

    Elan-tech® ADH 891.892 NF Epoxy adhesive (dark grey), 50 ml

    Elan-tech® ADH 891.892 NF from Elantas is a temperature resistant high performance adhesive based on epoxy resin for bonding CFRP and GFRP materials, wood, glass, ceramics, rigid foams, as well as FE and non-ferrous metals in automotive construction and sports equipment.

    This high performance adhesive is an unfilled and stable 2 component epoxy resin adhesive. The adhesive complies with RoHS (EU Directive 2002/95/EC) and RoHS Directive 2011/65/EU (RoHS 2).

    Due to its thixotropic formulation thick, uneven and even vertical adhesive joints can be achieved.

    • High lap shear strength (up to 39 MPa with CFK cured 2 h over 80 °C according to ASTM D 1002)
    • Very high impact and peel strength
    • Good thermal resistance
    • Thixotropic formulation
    • Low exothermic reaction and shrinkage
    • Solvent free

    Processing:
    Processing is very easy due to the application with a dosing gun. This also eliminates mixing errors. Elan-tech® ADH 891.892 NF cures at room temperature or elevated temperatures. Post-curing at elevated temperatures is required to achieve maximum temperature resistance.

    Technical data (averages):
    Processing time (25 °C): 135 minutes*
    Processing time (25 °C, 40 mm, 100 ml): 15-25 minutes
    Handling strength (23 °C)**: 4 hours
    Viscosity: 300.000 to 550.000 MPas
    Maximal gap fill: 5 mm
    Colour: Dark grey
    Elongation at break: 6 %
    Heat resistance: 24 h / 23 °C = 60 °C; 2 h / 80 °C = 85 °C
    Flexural strength: 80 MPa
    Bending modulus: 2200 MPa
    Tensile strength: 54 MPa
    Compressive strength: 58 %

    *2 mm application at 25 °C with good wetting of the surfaces to be bonded. The processing time is reduced accordingly for thicker coatings and the resulting exothermic (reaction heat).
    ** Curing time until a minimum tensile shear strength of 1 MPa is reached on aluminium.

    Please order the dosing gun for 50 ml double cartridges (order no. 1551611) separately.

    References of the boat building industry:
    Wally Europe (Italy & Tunisia), the Baglietto Group (Cantieri di Pisa, W.Magic, General Bateaux), Comar (Italy), Indiana Yachting (Italy), CMR (Italy), Cantieri Soleri (Italy), Cantieri Galetti (Italy)

    References of the automobile industry:
    Ferrari (Italy), Dallara (Italy), Camattini Meccanica (Italy), Škoda (Czech Republic), Fiat (Italy), Volkswagen (South Africa), TataMotors (India)

    Conversion of SI units: 1 MPa (Megapascal) = 1 N/mm² = 0,102 kg/mm²

    Elan-tech® ADH 891.892 NF (dark grey), cartridge/ 50 ml

    Elantas

    One mixing tube is included, please order replacement mixing tube 155165X or 1551672 separately.

    Item no.  1538910 59 in stock  (delivery time 1-2 days)

    Add to Shopping List

    Neuheit 9/2019 (AR)-->
    25,12 €
    (Base Price 502,40 € /  L)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    - +

    all Prices  price incl. VAT, possibly plus shipping

    Article information

    type: ga
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]
    Instructions for use
    type: si
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]
    MSDS
    Safety Data Sheet Elan-tech® ADH 891.892 (comp. B) (PDF)
    Safety Data Sheet Elan-tech® ADH 891.892 (comp. A) (PDF)
    type: pi
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]
    Product information
    type: td
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]
    Technical Data Sheet (PDF)
    type:
    language: [language]
    info3: [info3]
    filetype: [filetype]
    url: [url]

    Videos

    Hazards identification - Elan-tech® AS89.1

    Hazard components for labelling

    Bisphenol-F epichlorohydrin resins with average MG ≤ 700
    Bis-[4-(2,3-epoxipropoxi)phenyl]propane
    Reaction product of epichlorohydrin/bisphenol-A
    1,6-Bis(2,3-epoxypropoxy)hexane

    Signal word: Warning

    Pictograms:

    GHS07 GHS09

    Hazard statements

    H315 Causes skin irritation.
    H317 May cause an allergic skin reaction.
    H319 Causes serious eye irritation.
    H411 Toxic to aquatic life with long lasting effects.

    Precautionary statements

    P261 Avoid breathing dust/fume/gas/mist/vapours/spray.
    P273 Avoid release to the environment.
    P280 Wear protective gloves / protective clothing / eye protection / face protection.
    P333 P313 If skin irritation or a rash occurs: Get medical advice / attention.
    P337 P313 If eye irritation persists: Get medical advice / attention.
    P362 P364 Take off contaminated clothing and wash it before reuse.

    Hazards identification - Elan-tech® AW 89.2 NF black

    Hazard components for labelling

    2-propenenitriles, polymer with 1,3-butadiene, 1-cyano-1-methyl-4-oxo-((2-(1-piperazinyl)ethyl amino)butyl-terminated
    3,6-dioxaoctamethylenediamine
    Phenol, 4,4-(methyletylidene) bis-, polymer with N,N-bis(2-aminoethyl)-1,2-ethanediamine and (chloromethyl)oxirane.
    Polyamide polymer
    N'-(3-aminopropyl)-N,N-dimethylpropane-1,3-diamine
    Polymer of MXDA
    Amines, polyethylene poly, triethylenetetramine fraction
    m-phenylenebis(methylamine)
    3-aminomethyl-3,5,5-trimethylcyclohexylamine

    Signal word: Danger

    Pictograms:

    GHS05 GHS07 GHS09

    Hazard statements

    H302 Harmful if swallowed.
    H314 Causes severe skin burns and eye damage.
    H317 May cause an allergic skin reaction.
    H411 Toxic to aquatic life with long lasting effects.

    Precautionary statements

    P261 Avoid breathing dust/fume/gas/mist/vapours/spray.
    P273 Avoid release to the environment.
    P280 Wear protective gloves / protective clothing / eye protection / face protection.
    P303 P361 P353 IF ON SKIN (or hair): Remove/Take off immediately all contaminated clothing. Rinse skin with water or shower.
    P305 P340 P310 IF INHALED: Remove person to fresh air and keep comfortable for breathing. Immediately call a POISON CENTER / doctor.
    P305 P351 P338 P310 IF IN EYES: Rinse continuously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing. Immediately call a POISON CENTER or doctor / physician.
