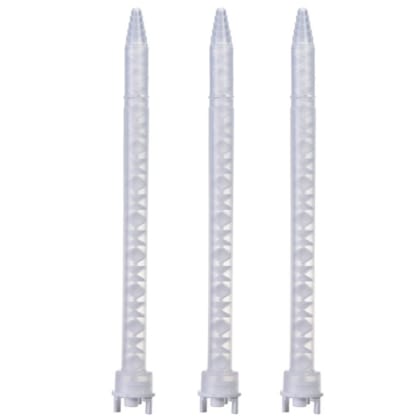

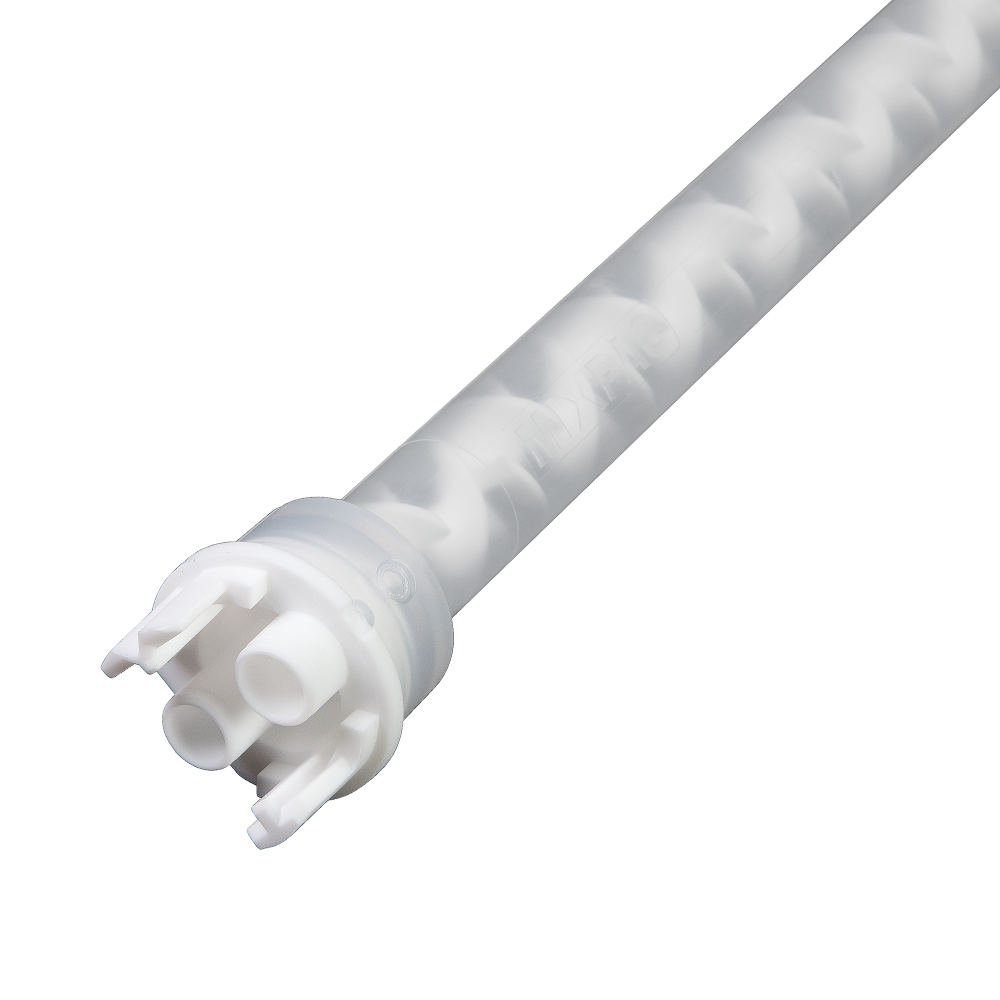

Original Sulzer MFH 10-24T static disposable helix mixing tube (mixing nozzle) for 2K systems with MR 1:1 and 2:1.
NEW with 24 mixing elements. The higher number of mixing elements compared to the Original Sulzer MFH 10-18T increases the mixing, resulting in a slightly higher counterpressure when pressing out the cartridge.
In our delivery program is suitable for:
Elan-tech® ADH 891.892 epoxy adhesive black, cartridge/400 ml (order no. 1538911)
When the adhesive is pressed into the cartridge, the components are independently mixed so that a ready-to-use adhesive mixture is available at the tip. After exceeding the processing time, the adhesive hardens in the mixing tube. The mixing tubes are therefore disposable articles.
Technical data:
Mixer:
Inner- Ø: 10.0 mm
Outer-Ø: 14.0 mm
Material: plastic PP
Number of elements: 24
Mixing ratios: 1:1 / 2:1
Length: 283 mm
Outlet-Ø: 3 mm
Volume: 16.89 ml
Stepped top
Article number designation MFH 10-24T:
M/F/H = Mixer / F-System / Helix 1:1 and 2:1
10-24 = Mixer inner Ø 10.0 mm - Number of mixing elements 24
T = stepped tip
This static disposable helix mixing tube was developed for the Mixpac F200 ml and F400 ml cartridges with MR 1:1 and 2:1 (the ml-values depend on the manufacturer who fills the cartridges, they can vary approx. +/- 10 ml, decisive is the size and the mixing ratio). The mixer is characterized by a unique interface development between the static mixer and the cartridge. This interface has separate ports to prevent cross-contamination of resin and hardener. This mixer is mainly used for mixing epoxy resins, epoxy adhesives, silicones, polyurethanes, acrylates, and polyester resins.
Fields of application:
Automotive, aerospace, industrial assembly, electronics, composite connections, sports equipment industry, electrical and electronics industry, automotive supplier industry, commercial vehicles, window construction and components, chemical reactor construction, caravans and caravans Wood and plastics processing industry, design, model and mould construction, wind power plants, rail vehicle, bus, special vehicle industry, maintenance, medical equipment, dental, stone and granite, container construction, joinery, interior fittings, exhibition stand construction, mechanical engineering.
