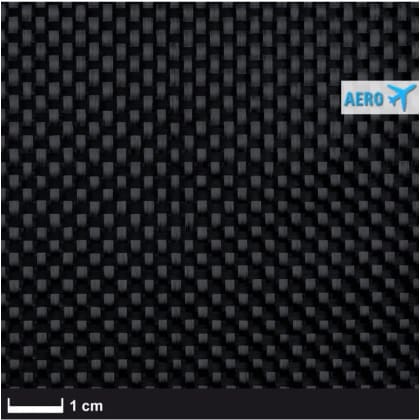

160 g/m² Style 447-5 Aero carbon fabric made from high-strength 3k carbon fibre yarns in plain weave.
For lightweight, load-bearing CFRP components and sandwich structures.
MATERIAL TO AEROSPACE SPECIFICATION
Style 447-5 Aero carbon fabric is manufactured from high-strength Tenax® HTA 40 or Pyrofil™ TR30S carbon fibres. Its balanced plain weave, with 4 yarns/cm in both warp and weft directions, provides a dimensionally stable fabric structure for multi-ply CFRP laminates. With an areal weight of 160 g/m², it is suitable for technical reinforcements and weight-efficient composite components.
Technical data
Fabric style
Style 447-5 Aero
Fibre type
Tenax® HTA 40 or Pyrofil™ TR30S (HT)
Yarn linear density
200 ± 4 tex; 3k (3,000 filaments)
Areal weight
160 g/m² (−4/+5 g/m²)
Weave pattern
Plain weave 1/1
Warp / weft yarn count
4.0 ± 0.2 yarns/cm each
Fabric width
100 cm (± 1 cm)
Dry fabric thickness
approx. 0.30 ± 0.03 mm (indicative)
Fibre density
1.80 ± 0.05 g/cm³
Fibre tensile strength
min. 3,750 MPa according to ECC specification
Fibre tensile modulus
238 ± 4 GPa according to ECC specification
Aerospace specification
DIN 65147 / WL 8.3508.80 according to ECC Style 447 data sheet
Typical applications
CFRP shells, technical fairings and large-area covers
Motorsport and automotive applications, including body panels and air ducts
Boatbuilding, marine applications and lightweight moulded components
Drones, UAVs and model aircraft
Mechanical engineering, equipment housings and technical structures
Orthopaedic applications and prosthetics
Properties and processing
The high-strength 3k carbon fibres support stiff, weight-efficient laminate structures. The plain weave provides good dimensional stability during cutting and positioning. The fabric is particularly suitable for flat to moderately curved components; twill-weave fabrics generally offer better drapability over complex contours.
Suitable for hand lay-up and vacuum bagging with compatible epoxy laminating resins. Low-viscosity resin systems facilitate uniform fibre wet-out.
Calculated laminate data for hand lay-ups with 35% fibre volume fraction
Resin requirement
approx. 193 g/m²
Laminate thickness
approx. 0.25 mm
Laminate areal weight
approx. 353 g/m²
ECC
Carbon fabric 160 g/m² (Aero, plain weave) 100 cm, roll/ 0,5 m
Item no. 1902260
Only 6 left in stock, more on the way
(delivery time 1-2 days)
Is a package size missing? Sizes that are not in stock will be manufactured from existing inventory at short notice – provided sufficient stock is available. Our sales team will be happy to inform you about exact availability and the expected delivery time.
Current stock:
4 qm in stock
all Prices
price incl. VAT, possibly plus
shipping
Article information
type: ga
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Instructions for use
The product is not classified according to the CLP regulation.
Labelling according to Regulation (EC) No 1272/2008: Void
Hazard pictograms: Void
Hazard statements: Void
MSDS Carbon fibre (PDF)
