Bagging film (PO150 XD2) 80 my, 175 cm
  • The image shows a close-up of a white oval-shaped object with a textured surface, wrapped in plastic, and a tube connected to it.
  • A layered arrangement showing different materials used in vacuum bagging for composite manufacturing. Each layer is labeled with its name in both German and English: Vacuum film, non woven absorber, perforated film, peel ply fabric, and fiber reinforcement. A tube is seen inserted in the vacuum film.
A roll of white paper or plastic sheeting is partially unrolled on a flat surface. The roll has a cardboard core.

max. 145 °C
Elongation at break: > 900 %

Bagging film (PO150 XD2) 80 my, 175 cm

High-stretch polyolefine-copolymer film developed specifically for complex moulds and re-entrant angles.
Self-releasing
(epoxy resins, phenolic resin). Can be used multiple times if not overstretched.

Technical data:

  • Max. temperature: 145 °C
  • Max. pressure: 4 bar
  • Thickness: 80 µm
  • Width: 175 cm
  • Elongation at break: > 900 %
  • Weight: 74 g/m²
  • Non-resistant to styrene
  • Colour: Transparent

Application:
Vacuum bagging (not suitable for vacuum infusion. See Wiki for more information).
With this film, elasticity is the limiting factor, which is why preliminary tests under subsequent process conditions are recommended.

Two properties are primarily relevant for films:
Elastic deformation is reversible and describes how much the film can stretch before returning to its original state.
Plastic deformation cannot be reversed and describes how much the film can stretch until it finally tears.

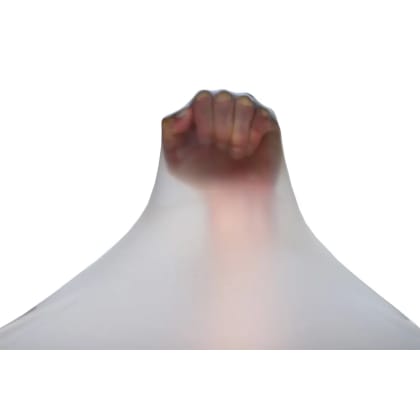

The specification > 900 % refers to both elastic and plastic stretching (the latter being dominant). If the film is overstretched, it cannot recover to its original state. The picture here in the store shows it quite well. In the area of the fingers, the foil is already strongly plastically deformed, while it is still elastically stretched in the peripheral areas around the frame. The counterpart to this would be an elastomeric film made of silicone, natural rubber or PUR, which has a purely elastic deformation.

Storage:
Protect from daylight/UV radiation, do not store below 60 % humidity and at room temperature.

R&G

Bagging film PO150 XD2, 175 cm, pack/ 1 m

Bagging film PO150 XD2, 175 cm, pack/ 1 m

Item no.  3901761 Only 6 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

10,52
(Base Price 6,01 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
R&G

Bagging film PO150 XD2, 175 cm, roll/ 5 m

Bagging film PO150 XD2, 175 cm, roll/ 5 m

Item no.  3901764 Only 5 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

47,71
(Base Price 5,45 € /  m²)
R&G

Bagging film PO150 XD2, 175 cm, roll/ 10 m

Bagging film PO150 XD2, 175 cm, roll/ 10 m

Item no.  3901765 Only 1 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

80,90
(Base Price 4,62 € /  m²)
R&G

Bagging film PO150 XD2, 175 cm, roll/ 20 m

Bagging film PO150 XD2, 175 cm, roll/ 20 m

Item no.  3901766 Only 2 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

155,75
(Base Price 4,45 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
R&G

Bagging film PO150 XD2, 175 cm, roll/ 50 m

Bagging film PO150 XD2, 175 cm, roll/ 50 m

Item no.  3901767 Only 1 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

343,22
(Base Price 3,92 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
R&G

Bagging film PO150 XD2, 175 cm, roll/ 100 m

Bagging film PO150 XD2, 175 cm, roll/ 100 m

Item no.  3901768 Only 3 left in stock  (delivery time 1-2 days)

Add to Shopping List

632,02
(Base Price 3,61 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%

all Prices  price incl. VAT, possibly plus shipping
