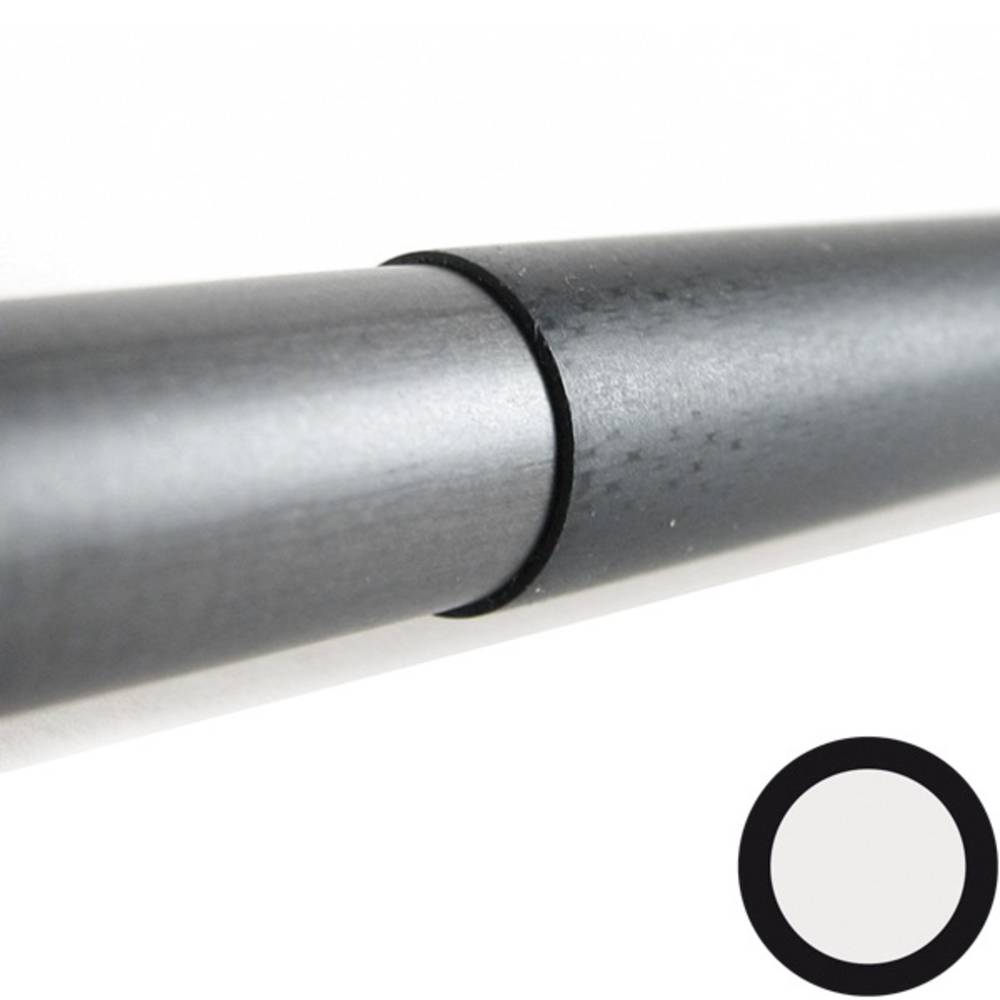

  • A close-up image of a black cylindrical object with a seam, possibly a pipe or rod, on a white background. A small black and white circle is at the bottom right corner.
The image shows a close-up of a black rod with a textured grip. The grip is slightly thicker than the rod.

(Ø 13.7/12.5) x 500/1000 mm

FRP Semi finished products (English translator included)

Related Products

R&G
more products by R&G

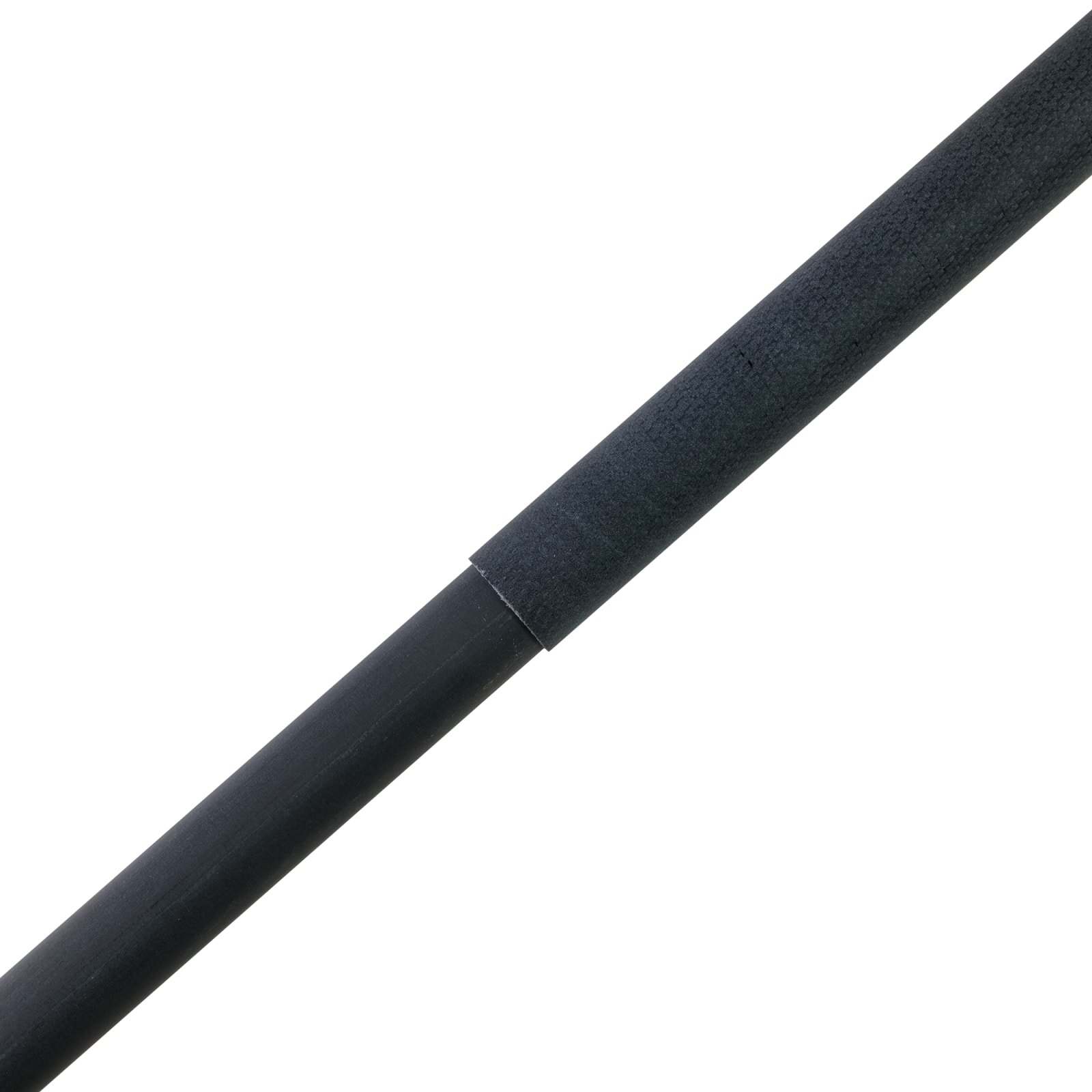

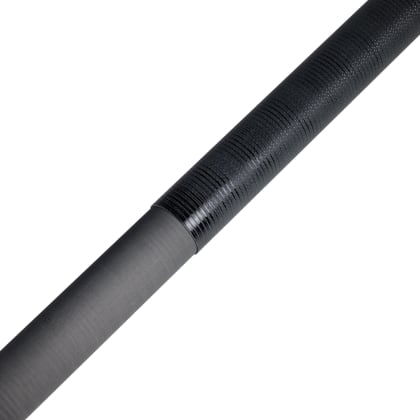

Wing-connector: Glass / CARBON tube (Ø 13.7/12.5)

Wing-connector with GFRP + CFRP tube

The wing-connector system, consisting of one GFRP sleeve tube (outside) and one CFRP joining tube (inside), are high quality made and accurately fitting. Both tubes slide into each other and therefore are telescopic.

Manufactured in the roll-wrapping process the tubes utilize a high-quality epoxy resin matrix and glass and unidirectional carbon fabric for reinforcement. The tubes combine lightweight, high strength, and excellent corrosion resistance.

Dimensions:
GFRP tube (outside tube) outer-Ø 13.7 mm, wall thickness 0.6 mm
CFRP tube (inside the tube) outer-Ø 12.5 mm, wall thickness 0.9 mm

Tolerance: ca. - 0.3 mm
Weight: approx. 113 g

Application:
Wing-connector system for model airplanes, e.g. it is used to plug the wings onto the fuselage.

This system can only be delivered complete, the individual tubes are not available solely.

Amazon Pay Apple Pay Visa Card Mastercard PayPal SEPA

R&G

Wing-connector GRP sleeve/CRP tube (13.7/12.5) x 500 mm

The image shows a close-up of a black rod with a textured grip. The grip is slightly thicker than the rod.

GRP sleeve (outside tube), outer-Ø 13.7 mm, inner-Ø 12.5 mm, length 500 mm CRP tube (inside tube), outer-Ø 12.5 mm, inner-Ø 10.5 mm, length 500 mm (all together approx. 49 g)

Item no.  741413105-S Out of stock

Add to Shopping List
12,22 €
(Base Price 24,44 € /  pc. )

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
Currently not available.
We do not know when this item will be in stock again.

R&G

Wing-connector GRP sleeve/CRP tube (13.7/12.5) x 1000 mm

The image shows a close-up of a black rod with a textured grip. The grip is slightly thicker than the rod.

GRP sleeve (outside tube), outer-Ø 13.7 mm, inner-Ø 12.5 mm, length 1000 mm CRP tube (inside tube), outer-Ø 12.5 mm, inner-Ø 10.5 mm, length 1000 mm (all together approx. 95 g)

Item no.  74141311-S 45 in stock  (delivery time 1-2 days)

Add to Shopping List
22,42 €
(Base Price 22,42 € /  pc. )

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%

all Prices  price incl. VAT, possibly plus shipping
