Wing-connector: Glass / Carbon tube (26.5/25) x 1000 mm

    (26.5/25) x 1000 mm

    Wing-connector: Glass / Carbon tube (26.5/25) x 1000 mm

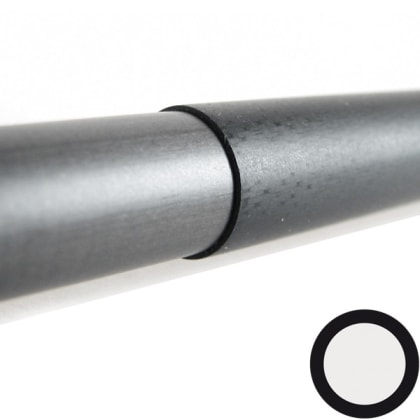

    Wing-connector with GFRP + CFRP tube

    The wing-connector system, consisting of one GFRP sleeve tube (outside) and one CFRP joining tube (inside), are high quality made and accurately fitting. Both tubes slide into each other and therefore are telescopic.

    Manufactured in the roll-wrapping process the tubes utilize a high-quality epoxy resin matrix and glass and unidirectional carbon fabric for reinforcement. The tubes combine lightweight, high strength and excellent corrosion resistance.


    Dimensions:
    GFRP tube (outside tube) outer-Ø 26.5 mm, inner-Ø 25 mm, length 1000 mm
    CFRP tube (inside tube) outer-Ø 25 mm, inner-Ø 23 mm, length 1000 mm

    Tolerance: ca. - 0.3 mm
    Weight:
    approx. 210 g

    Application:
    Wing-connector system for model aeroplanes, e.g. it is used to plug the wings onto the fuselage.

    This system can only be delivered complete, the individual tubes are not available solely.

    Wing-connector GRP sleeve/CRP tube (26.5/25) x 1000 mm

    R&G

    GRP sleeve (outside tube), outer-Ø 26,5mm, inner-Ø 25 mm, length 1000 mm CRP tube (inside tube), outer-Ø 25 mm, inner-Ø 23 mm, length 1000 mm weight 210 g

    Item no.  74272523-S Out of stock

    Add to Shopping List

    26,55
    (Base Price 26,55 € /  m)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    • From Qty 10:  15,0%
    • From Qty 25:  20,0%
    • From Qty 50:  25,0%
    • From Qty 100:  30,0%
    Currently not available.
    We do not know when this item will be in stock again.


    all Prices  price incl. VAT, possibly plus shipping
