Various dimensions

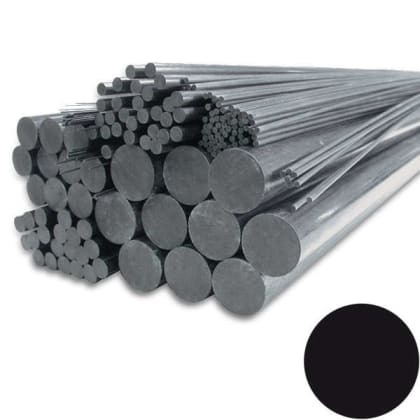

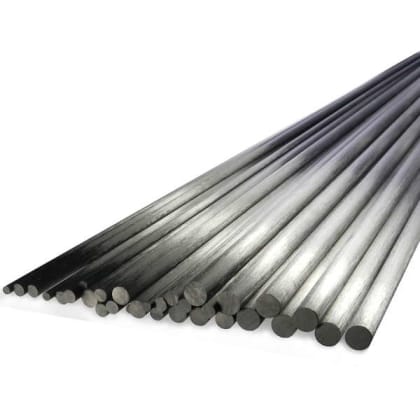

CARBON fibre rods pultruded (round)
Pultruded carbon fibre profiles made from 3K HT carbon fibres (Torayca® T300 or equivalent) and a duroplastic matrix are drawn continuously through a die. This production method causes the fibres to be oriented unidirectionally, i.e. along the length of the pultruded form. The result is a high fibre volume fraction of 58 % with a very low air voids content.
Heat distortion temperature: 120 °C
Tensile strength: >3 GPA
Tensile modulus: >2 GPA
Density: 1.78 g/cm³
Interlaminar shear strength ILS: 100 MPa
Tolerances:
As a rule, the deviation from the straightness is not more than 1 mm/m.
Please note:
Internal release agents are used in the pultrusion process, which migrates to the part´s surface. A pre-treatment of the adherent due to this is necessary. These have to be roughened (abrasive paper 220 grit) and cleaned very thoroughly. Epoxy resin or cyanoacrylate (superglue) is used for the bonding itself.
Carbon rod (Ø 1.0 mm) x 1000 mm
Weight: approx. 1.2 g
Item no. 700010-100 140 in stock (delivery time 1-2 days)
Scaled Price
- From Qty 2: 5,00%
- From Qty 5: 10,00%
- From Qty 10: 15,00%
- From Qty 25: 20,00%
- From Qty 50: 25,00%
- From Qty 100: 30,00%
Carbon rod (Ø 1.5 mm) x 1000 mm
Scaled Price
- From Qty 2: 5,00%
- From Qty 5: 10,00%
- From Qty 10: 15,00%
- From Qty 25: 20,00%
- From Qty 50: 25,00%
- From Qty 100: 30,00%
We do not know when this item will be in stock again.
Carbon rod (Ø 2.0 mm) x 1000 mm
Scaled Price
- From Qty 2: 5,00%
- From Qty 5: 10,00%
- From Qty 10: 15,00%
- From Qty 25: 20,00%
- From Qty 50: 25,00%
- From Qty 100: 30,00%
We do not know when this item will be in stock again.
Carbon rod (Ø 2.0 mm) x 1500 mm
Weight: approx. 11 g (approx. 4.7 g/m)
Item no. 700020-150 203 in stock (delivery time 1-2 days)
Scaled Price
- From Qty 2: 5,00%
- From Qty 5: 10,00%
- From Qty 10: 15,00%
- From Qty 25: 20,00%
- From Qty 50: 25,00%
- From Qty 100: 30,00%
Carbon rod (Ø 3.0 mm) x 1000 mm
Weight: approx. 10.6 g
Item no. 700030-100 239 in stock (delivery time 1-2 days)
Scaled Price
- From Qty 2: 5,00%
- From Qty 5: 10,00%
- From Qty 10: 15,00%
- From Qty 25: 20,00%
- From Qty 50: 25,00%
- From Qty 100: 30,00%
Carbon rod (Ø 3.0 mm) x 2000 mm
Weight: approx. 21.2 g (approx. 10.6 g/m)
Item no. 700030-200 397 in stock (delivery time 1-2 days)
Scaled Price
- From Qty 2: 5,00%
- From Qty 5: 10,00%
- From Qty 10: 15,00%
- From Qty 25: 20,00%
- From Qty 50: 25,00%
- From Qty 100: 30,00%
Carbon rod (Ø 4.0 mm) x 1000 mm
Scaled Price
- From Qty 2: 5,00%
- From Qty 5: 10,00%
- From Qty 10: 15,00%
- From Qty 25: 20,00%
- From Qty 50: 25,00%
- From Qty 100: 30,00%
We do not know when this item will be in stock again.
Carbon rod (Ø 5.0 mm) x 1000 mm
Weight: approx. 29.5 g
Item no. 700050-100 198 in stock (delivery time 1-2 days)
Scaled Price
- From Qty 2: 5,00%
- From Qty 5: 10,00%
- From Qty 10: 15,00%
- From Qty 25: 20,00%
- From Qty 50: 25,00%
- From Qty 100: 30,00%
Carbon rod (Ø 6.0 mm) x 1000 mm
Weight: approx. 42.4 g
Item no. 700060-100 28 in stock (delivery time 1-2 days)
Scaled Price
- From Qty 2: 5,00%
- From Qty 5: 10,00%
- From Qty 10: 15,00%
- From Qty 25: 20,00%
- From Qty 50: 25,00%
- From Qty 100: 30,00%
Carbon rod (Ø 8.0 mm) x 1000 mm
mm
Weight: approx. 75.4 g
Item no. 700080-100 35 in stock (delivery time 1-2 days)
Scaled Price
- From Qty 2: 5,00%
- From Qty 3: 10,00%
- From Qty 5: 15,00%
- From Qty 10: 20,00%
Carbon rod (Ø 10.0 mm) x 1000 mm
mm
Scaled Price
- From Qty 2: 5,00%
- From Qty 3: 10,00%
- From Qty 5: 15,00%
- From Qty 10: 20,00%
Carbon rod (Ø 12.0 mm) x 1000 mm
mm
Scaled Price
- From Qty 2: 5,00%
- From Qty 3: 10,00%
- From Qty 5: 15,00%
- From Qty 10: 20,00%
Carbon rod (Ø 14.0 mm) x 1000 mm
mm
Scaled Price
- From Qty 2: 5,00%
- From Qty 3: 10,00%
- From Qty 5: 15,00%
- From Qty 10: 20,00%
Carbon rod (Ø 16.0 mm) x 1000 mm
mm
Scaled Price
- From Qty 2: 5,00%
- From Qty 5: 10,00%
- From Qty 10: 15,00%
- From Qty 25: 20,00%
- From Qty 50: 25,00%
- From Qty 100: 30,00%
Carbon rod (Ø 18.0 mm) x 1000 mm
mm
Scaled Price
- From Qty 2: 5,00%
- From Qty 5: 10,00%
- From Qty 10: 15,00%
- From Qty 25: 20,00%
- From Qty 50: 25,00%
- From Qty 100: 30,00%
Carbon rod (Ø 22.0 mm) x 1000 mm
mm
Scaled Price
- From Qty 2: 5,00%
- From Qty 5: 10,00%
- From Qty 10: 15,00%
- From Qty 25: 20,00%
- From Qty 50: 25,00%
- From Qty 100: 30,00%
all Prices price incl. VAT, possibly plus shipping
Hazards identification - CARBON fibre rods pultruded (round)
Classification of the substance or mixture
The product is not classified according to the CLP regulation.Labelling according to Regulation (EC) No 1272/2008: Void
Hazard pictograms: Void
Hazard statements: Void
Signal word: n/a
