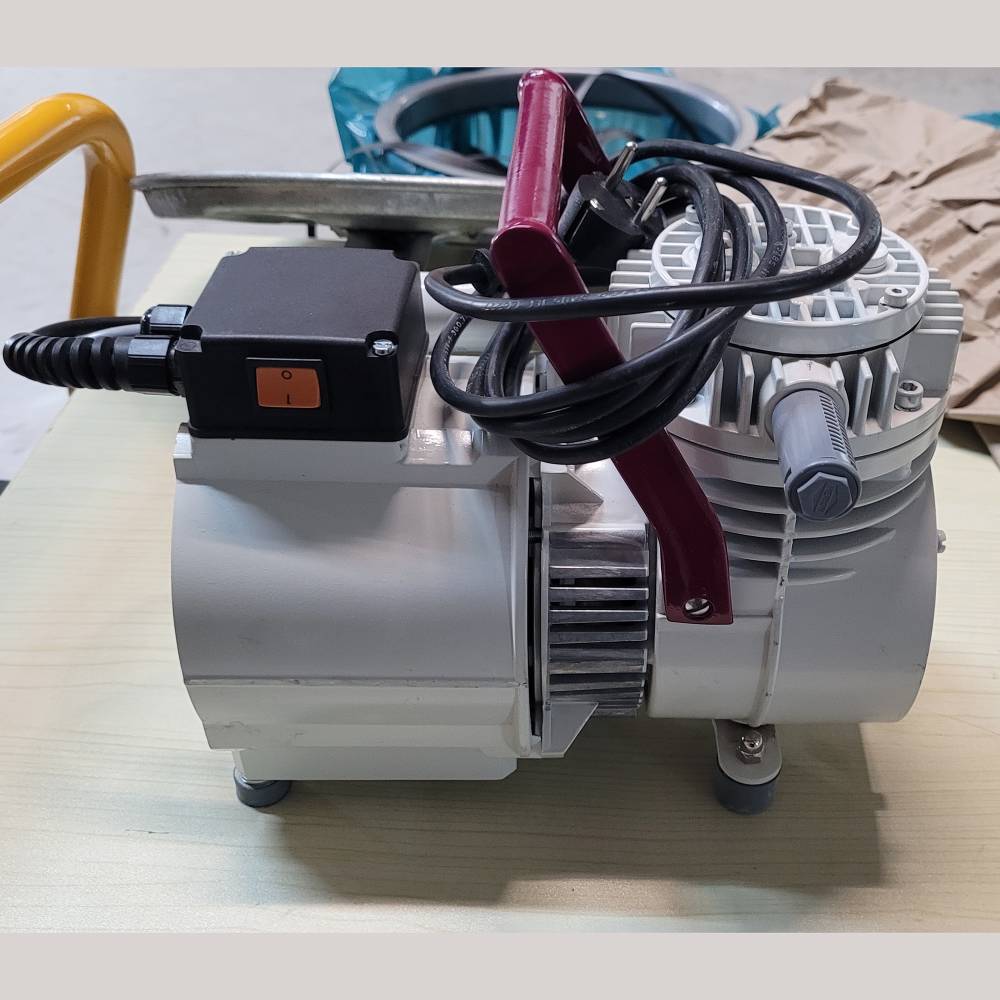

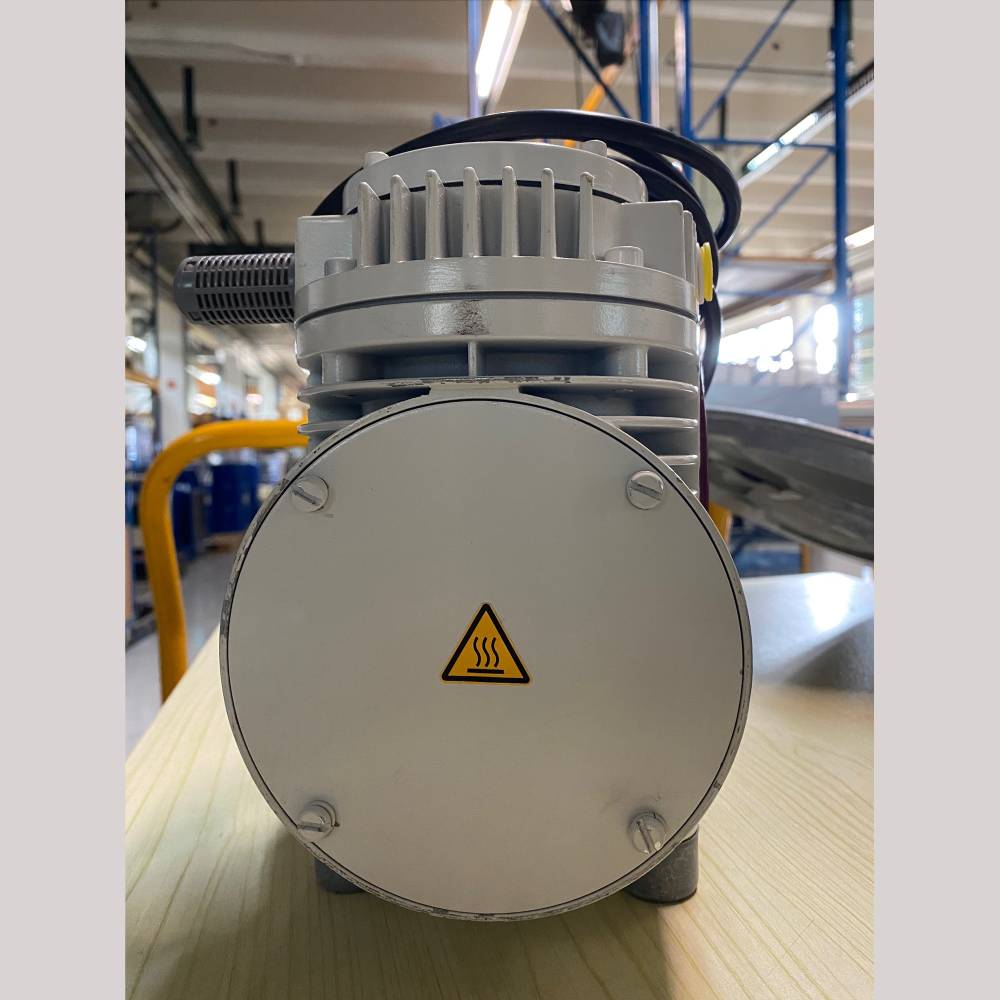

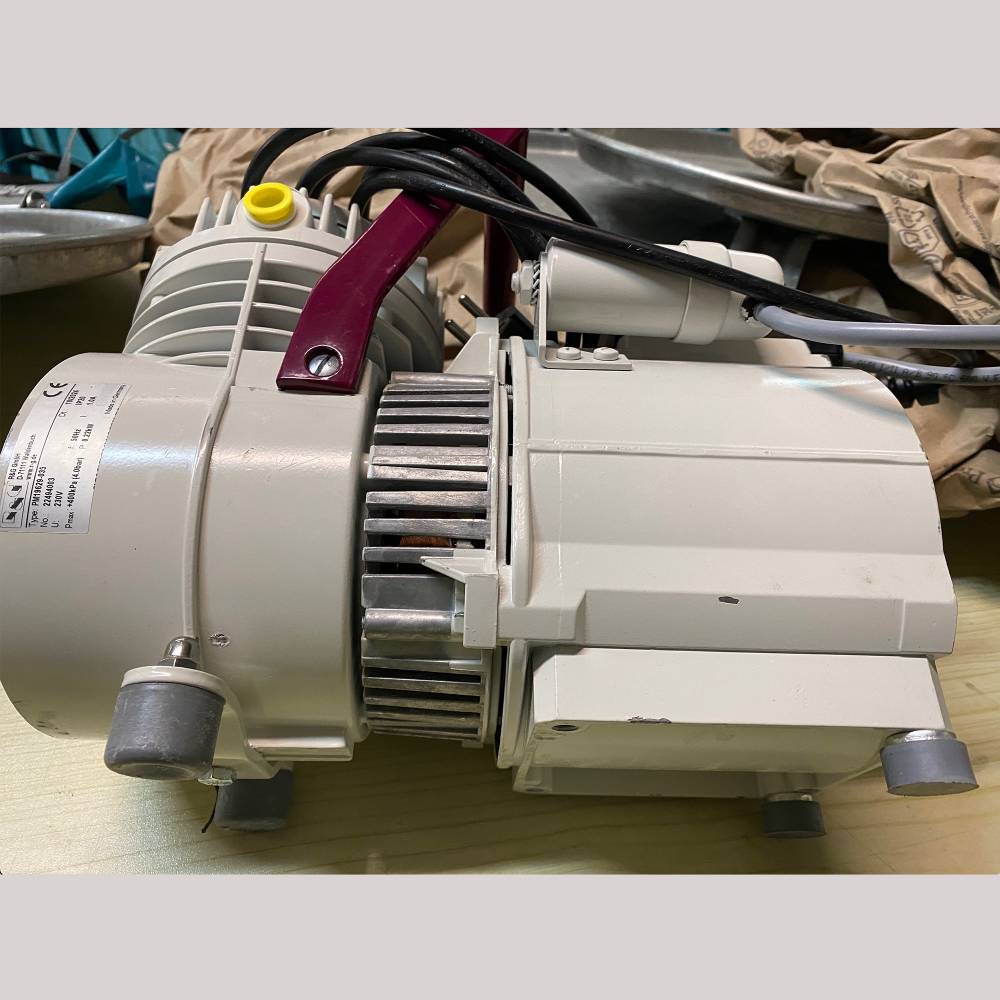

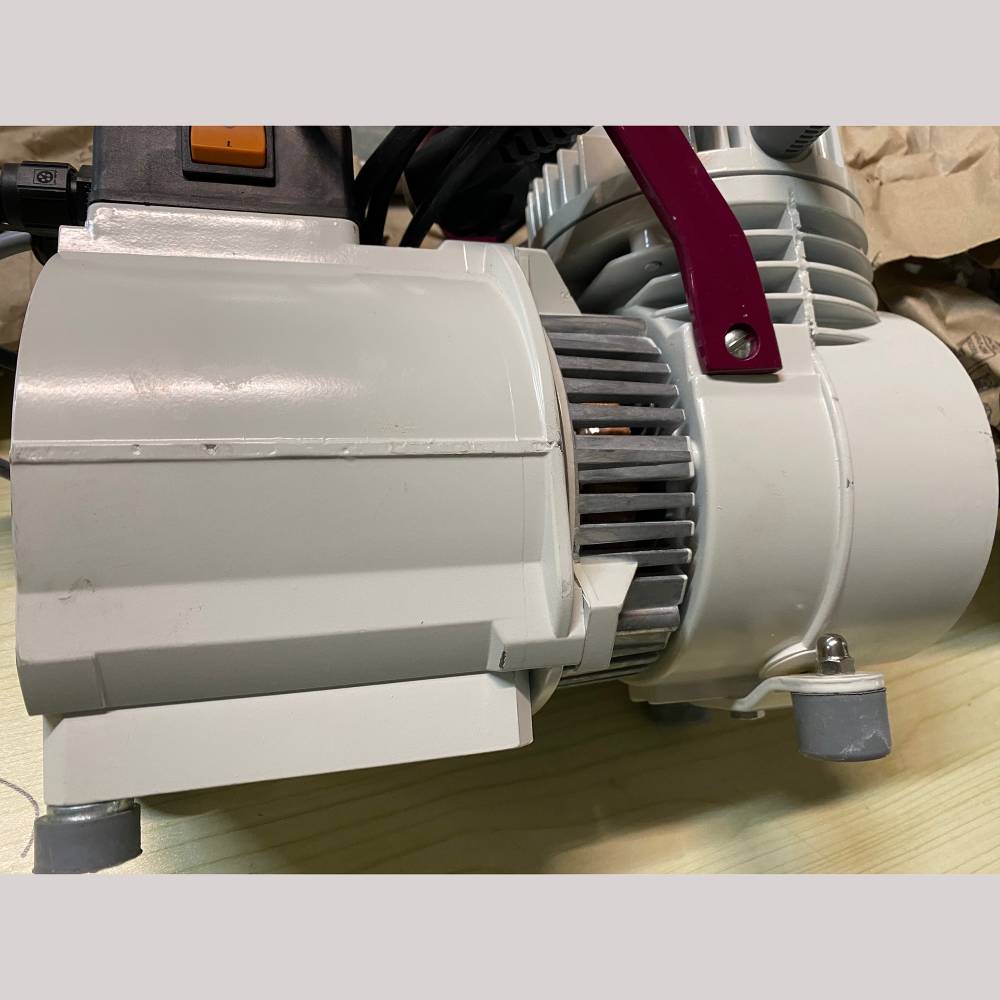

Vacuum pump P2-N (special offer)

Special item: Pump with paint damage repaired by the manufacturer. The pump works perfectly.

Diaphragm vacuum pump and compressor. With an integrated fine adjustment valve and pressure-vacuum gauge.
Ideal for small and large moulds (up to approx. 10 m² surface area).

• The product is manufactured in Germany
• Unadulterated evacuation, delivery and compression of air
• 100% oil-free compressed air
• Completely maintenance-free
• High continuous output with quiet running
• Excellent durability (> 5000 h)
• Suitable for continuous operation

Applications:
For excellent evacuation, delivery and compression of air, as well as for producing oil-free compressed air. Also particularly well-suited for vacuum compression processes used in the manufacturing of fibre composite components. High performance and excellent durability by means of a stress-optimised structural diaphragm.
Identical final vacuum as with the smaller vacuum pump P 1-N, but with a fivefold increase in pump capacity. Ideal for small and large moulds (up to approx. 10 m² surface area).

Note of the manufacturer:
In pure vacuum applications, positioning the pump at the lowest point of the application (e.g. on the floor) can have negative effects on the pump.
This favours the accumulation of condensate in the pump head, which reduces the life of the diaphragm.

Performance ranges:
Max. capacity at atm. pressure: 30 litre/min. (1.8 m³/h)
Max. vacuum: 0.85 bar (compressive force = 8500 kg/m²)
Max. operating overpressure: 4 bar

Technical data:
Max. permitted gas and ambient temperature: from + 5 to + 40 °C.
Motor: 220 V/50 Hz
Protection type: IP 20
Motor output: 150 W
Current consumption: 1 A
Noise level: 61 dB(A)
Weight: 8.2 kg

Integrated connection for R&G pump hose Ø 6 mm (order no. 390 110-X).

Animation of a diaphragm pump

Source: Ryan O’Connor, https://de.wikipedia.org/wiki/Membranpumpe

WEEE-No.: DE 24560767
