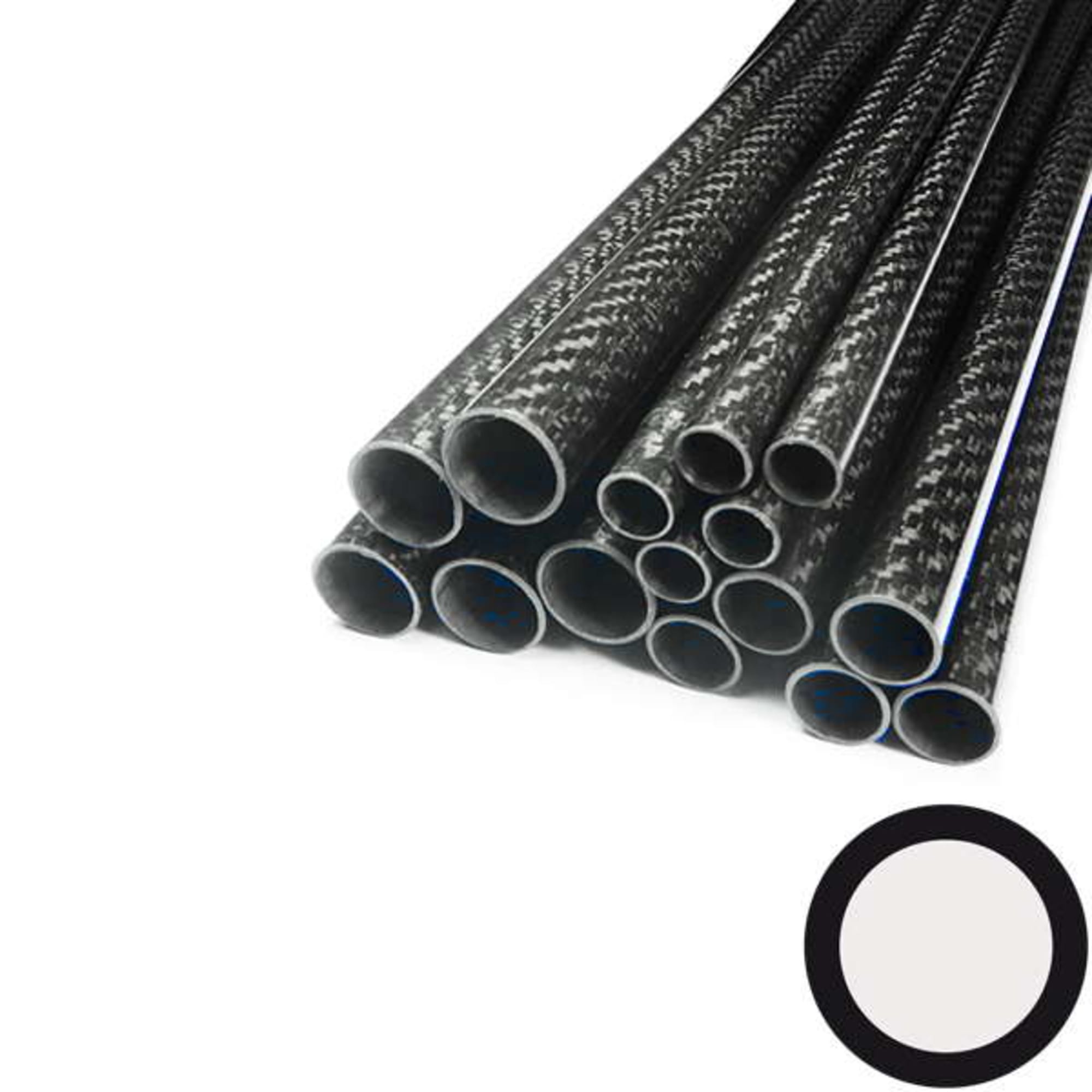

Carbon fibre tubes wound, twill weave (3k)

    Various diameters:
    4 - 48 mm

    Carbon fibre tubes wound, twill weave (3k)

    Roll wrapped carbon fibre tubes with a smooth surface finish of 3k twill weave fabric, clear-coated glossy. Subjacent layers made from unidirectional non-crimp fabric. High quality epoxy resin matrix. (More information about CFRP-tubes see R&G eWiki)., in german only, translator included).

    Fibre orientation:

    • Surface layer: 0°/90°
    • Core layers: 0°

    Characteristics:
    Light weight, excellent corrosion and heat resistance and electrical conductivity. Very good flexural and hoop stiffness.

    After laminating, the wound CFK round tubes are ground (round) to size and then coated.

    Tolerances:
    Deviation in diameter ± 0.2 mm. As a rule, the deviation from the straightness is not more than 1 mm/m.

    These tubes are usually not telescopic or cannot be telescoped without post-processing. Telescopic, cylindrical tubes see here.

    Connecting Carbon tubes



    Carbon round tube, wound, 3k-TW (Ø 6 / 4) x 1000 mm

    R&G

    Weight/meter approx. 25 g

    Item no.  740604-TW-1 15 in stock  (delivery time 1-2 days)

    Add to Shopping List

    14,09
    (Base Price 14,09 € /  m)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    • From Qty 10:  15,0%
    • From Qty 25:  20,0%
    • From Qty 50:  25,0%
    • From Qty 100:  30,0%
    - +

    Carbon round tube, wound, 3k-TW (Ø 6 / 4) x 1500 mm

    R&G

    Weight/meter approx. 25 g

    Item no.  740604-TW-150 18 in stock  (delivery time 1-2 days)

    Add to Shopping List

    20,18
    (Base Price 13,45 € /  m)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    • From Qty 10:  15,0%
    • From Qty 25:  20,0%
    • From Qty 50:  25,0%
    • From Qty 100:  30,0%
    - +

    Carbon round tube, wound, 3k-TW (Ø 8 / 6) x 1000 mm

    R&G

    Weight/meter approx. 40 g

    Item no.  740806-TW-1 39 in stock  (delivery time 1-2 days)

    Add to Shopping List

    12,96
    (Base Price 12,96 € /  m)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    • From Qty 10:  15,0%
    • From Qty 25:  20,0%
    • From Qty 50:  25,0%
    • From Qty 100:  30,0%
    - +

    Carbon round tube, wound, 3k-TW (Ø 8 / 6) x 2000 mm

    R&G

    Weight/meter approx. 40 g

    Item no.  740806-TW-2 Out of stock

    Add to Shopping List

    23,98
    (Base Price 11,99 € /  m)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    • From Qty 10:  15,0%
    • From Qty 25:  20,0%
    • From Qty 50:  25,0%
    • From Qty 100:  30,0%
    Currently not available.
    We do not know when this item will be in stock again.


    Carbon round tube, wound, 3k-TW (Ø 8 / 7) x 1000 mm

    R&G

    Weight/meter approx. 20 g

    Item no.  740807-TW-1 Only 2 left in stock  (delivery time 1-2 days)

    Add to Shopping List

    9,37
    13,98
    (Base Price 9,37 € /  m)
    - +

    Carbon round tube, wound, 3k-TW (Ø 10 / 8) x 1000 mm

    R&G

    Weight/meter approx. 45 g

    Item no.  741008-TW-1 54 in stock  (delivery time 1-2 days)

    Add to Shopping List

    17,79
    (Base Price 17,79 € /  m)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    • From Qty 10:  15,0%
    • From Qty 25:  20,0%
    • From Qty 50:  25,0%
    • From Qty 100:  30,0%
    - +

    Carbon round tube, wound, 3k-TW (Ø 12 / 11) x 1000 mm

    R&G

    Weight/meter approx. 30 g

    Item no.  741211-TW-1 29 in stock  (delivery time 1-2 days)

    Add to Shopping List

    16,01
    (Base Price 16,01 € /  m)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    • From Qty 10:  15,0%
    • From Qty 25:  20,0%
    • From Qty 50:  25,0%
    • From Qty 100:  30,0%
    - +

    Carbon round tube, wound, 3k-TW (Ø 16 / 14) x 1000 mm

    R&G

    Weight/meter approx. 75 g

    Item no.  741614-TW-1 34 in stock  (delivery time 1-2 days)

    Add to Shopping List

    19,88
    (Base Price 19,88 € /  m)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    • From Qty 10:  15,0%
    • From Qty 25:  20,0%
    • From Qty 50:  25,0%
    • From Qty 100:  30,0%
    - +

    Carbon round tube, wound, 3k-TW (Ø 22 / 20) x 1000 mm

    R&G

    (Weight/meter approx. 100 g, Tolerance: Inner- and Outer diameter: +/-0.05 mm, length: +/-1.0 mm)

    Item no.  742220-TW-1 48 in stock  (delivery time 1-2 days)

    Add to Shopping List

    26,14
    (Base Price 26,14 € /  m)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    • From Qty 10:  15,0%
    • From Qty 25:  20,0%
    • From Qty 50:  25,0%
    • From Qty 100:  30,0%
    - +

    Carbon round tube, wound 3k-TW (Ø 25 / 22.5) x 1000 mm

    R&G

    weight approx. 150 g

    Item no.  742523-TW-1 Out of stock

    Add to Shopping List

    30,30
    (Base Price 30,30 € /  m)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    • From Qty 10:  15,0%
    • From Qty 25:  20,0%
    • From Qty 50:  25,0%
    • From Qty 100:  30,0%
    Currently not available.
    We do not know when this item will be in stock again.


    Carbon round tube, wound 3k-TW (Ø 25 / 22.5) x 2000 mm

    R&G

    weight approx. 300 g

    Item no.  742523-TW-3 Only 1 left in stock  (delivery time 1-2 days)

    Add to Shopping List

    38,31
    57,18
    (Base Price 19,16 € /  m)
    - +

    Carbon tube wound, 3k (Ø 30 x 28) x 1000 mm

    R&G

    Weight approx. 140 g

    Item no.  743028-TW-100 22 in stock  (delivery time 1-2 days)

    Add to Shopping List

    32,92
    (Base Price 32,92 € /  m)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 5:  10,0%
    • From Qty 10:  15,0%
    • From Qty 25:  20,0%
    • From Qty 50:  25,0%
    • From Qty 100:  30,0%
    - +

    Carbon tube wound (3k) twill, (Ø 40 x 37) x 2000 mm

    R&G

    Weight/meter approx. 290 g

    Item no.  744037-TW-200 10 in stock  (delivery time 1-2 days)

    Add to Shopping List

    101,08
    (Base Price 50,54 € /  m)

    Scaled Price

    • From Qty 2:  10,0%
    • From Qty 3:  15,0%
    • From Qty 5:  20,0%
    - +

    Carbon tube wound, 3k-twill (Ø 40 x 38) x 2000 mm

    R&G

    Weight/meter approx. 190 g

    Item no.  744038-TW-200 Out of stock

    Add to Shopping List

    80,42
    (Base Price 40,21 € /  m)

    Scaled Price

    • From Qty 2:  5,0%
    • From Qty 3:  10,0%
    • From Qty 5:  15,0%
    • From Qty 10:  20,0%
    • From Qty 20:  25,0%
    • From Qty 50:  30,0%
    • From Qty 100:  35,0%
    Currently not available.
    We do not know when this item will be in stock again.


    Carbon tube wound (3k) twill, (Ø 50 x 48) x 2000 mm

    R&G

    Weight approx. 500 g

    Item no.  745048-TW-200 Only 4 left in stock  (delivery time 1-2 days)

    Add to Shopping List

    106,41
    (Base Price 53,21 € /  m)

    Scaled Price

    • From Qty 2:  10,0%
    • From Qty 3:  15,0%
    • From Qty 5:  20,0%
    - +

    all Prices  price incl. VAT, possibly plus shipping
