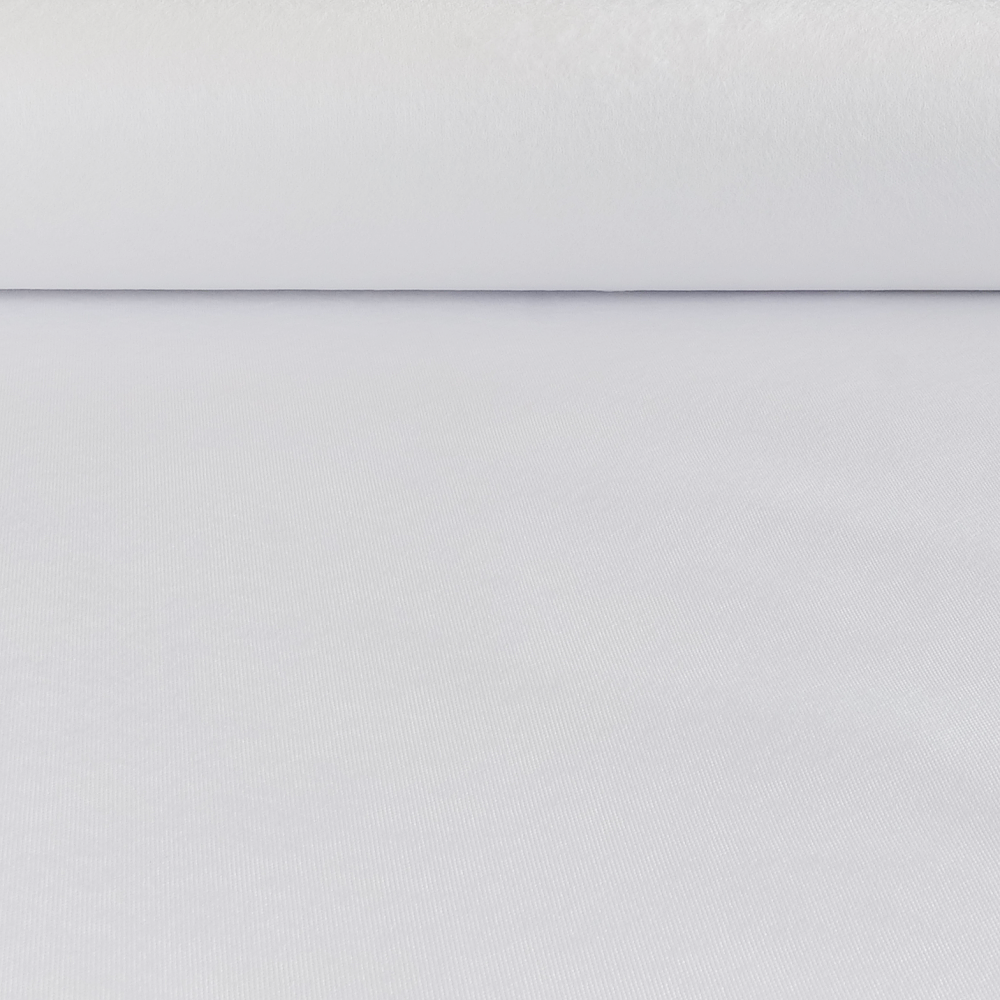

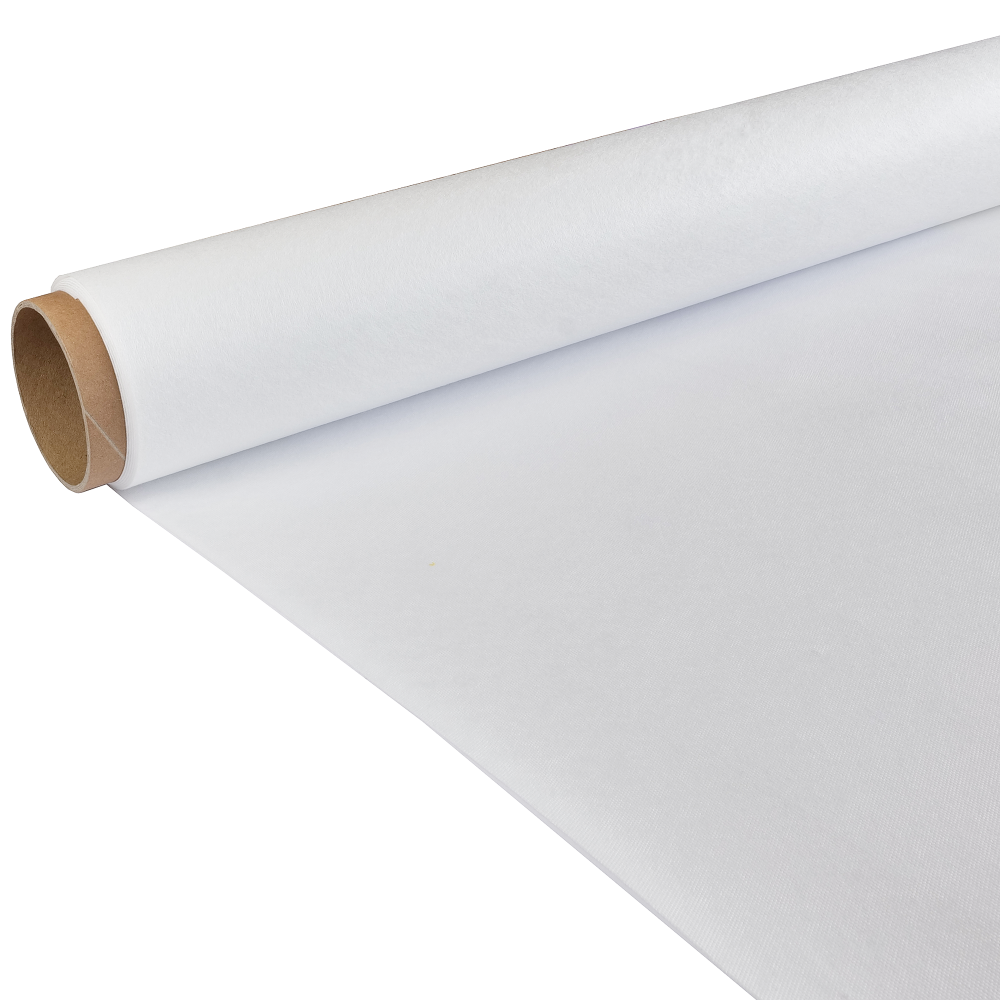

Compoflex® SB 250, 152 cm
Compoflex® Products1 from Fibertex replace up to three consumables - peel ply/release fabric, release film and breather/flow aid - with a single product in the manufacture of composite components.
Compoflex® SB 250 is a peel ply with release film and breather (150 g)
- Rough surface, suited for secondary bonding
- Well suited for polyester, vinyl ester, epoxy, phenolic and other resin types
- Suitable for the vacuum moulding process
Technical data Compoflex® SB 250:
Recommended operating temperature: 145 °C 2
Fibre type: Polypropylene (PP)
Colour: White
Weight (EN 195): 250 g/m², therof 150 g breather
Thickness (ISO 9863 - 1): 1.0 mm
Tear strength MD/CD3 (ISO 9073 - 4): 305 N/195 N
Pore size (ISO 12956): < 10 μm
Width: 152 cm
Compoflex® offers direct advantages in the manufacturing process:
- Superior peeling properties
The micro-porous surface and the low surface tension of polypropylene (PP) nonwovens ensure that Compoflex® peels at one fifth of the force needed to peel conventional peel ply. - Uniform bleeding
The micro-porous perforation enables uniform bleeding, ensuring stronger and lighter laminates. Overlapping is possible, without compromising laminate quality. - Time and cost savings
Fewer consumables, combined with easy peeling, reduce costs and handling time, simplifying the process. - "Easy release" minimises resin dust
Compoflex® peels easily. Most of the cured resin remains in the Compoflex®. This significantly reduces air pollution compared to conventional materials. Compoflex® therefore contributes to healthier working conditions.
Further information:
1 Compoflex®-Products (available at R&G):
| Material | Weight | Colour | Process | Construction |
for |
|
| Compoflex® 150 | PP | 150 g/m² | white | Infusion | Release film + release film | no |
| Compoflex® SB 150 | PP | 150 g/m² | white | Infusion | Peel ply + release film | yes |
| Compoflex® 250 | PP | 250 g/m² | white | Moulding | Release film + release film + 150 g breather | no |
| Compoflex® SB 250 | PP | 250 g/m² | white | Moulding | Peel ply + release film + 150 g breather | yes |
| Compoflex® SB RF 3 | PP/HDPE | 335 g/m² | weiß/yellow | Infusion | Peel ply + release film + flow aid | yes |
2 Operating temperature:
The recommended maximum processing temperature is 144 °C (293 °F). The melting point for polypropylene is 165 °C (329 °F). However, it is possible to use Compoflex® at 200 °C (392 °F), as Compoflex® still works reliably before the melting point is exceeded. After cooling, the material becomes stable again and peeling is as easy as ever. We recommend carrying out a test on a small part first.
3 MD = Machine direction
CD = Cross direction
Compoflex® SB 250 (152 cm) roll/ 1 m
(surface area = 1.52 m²)
Item no. FD-102176-1 Only 5 left in stock, more on the way (delivery time 1-2 days)
Scaled Price
- From Qty 2: 5,00%
Compoflex® SB 250 (152 cm) roll/ 2 m
(surface area = 3,04 m²)
Item no. FD-102176-2 Only 4 left in stock, more on the way (delivery time 1-2 days)
Scaled Price
- From Qty 2: 5,00%
Compoflex® SB 250 (152 cm) roll/ 3 m
(surface area = 4.56 m²)
Item no. FD-102176-3 Only 5 left in stock, more on the way (delivery time 1-2 days)
Scaled Price
- From Qty 2: 5,00%
Compoflex® SB 250 (152 cm) roll/ 5 m
(surface area = 7.6 m²)
Item no. FD-102176-4 Only 5 left in stock, more on the way (delivery time 1-2 days)
Scaled Price
- From Qty 2: 5,00%
Compoflex® SB 250 (152 cm) roll/ 10 m
(surface area = 15.2 m²)
Item no. FD-102176-5 Only 3 left in stock, more on the way (delivery time 1-2 days)
Scaled Price
- From Qty 2: 5,00%
Compoflex® SB 250 (152 cm) roll/ 20 m
(surface area = 30.4 m²)
Item no. FD-102176-6 Only 1 left in stock, more on the way (delivery time 1-2 days)
Scaled Price
- From Qty 2: 5,00%
Compoflex® SB 250 (152 cm) roll/ 61 m
Scaled Price
- From Qty 2: 5,00%
- From Qty 3: 10,00%
- From Qty 4: 15,00%
- From Qty 8: 20,00%
all Prices price incl. VAT, possibly plus shipping
