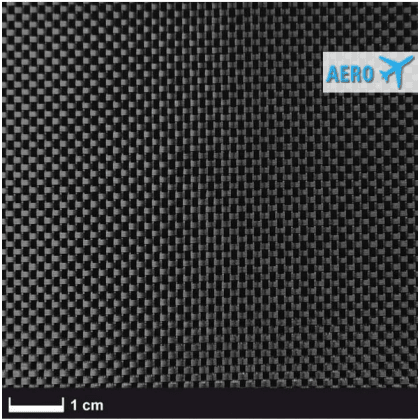

93 g/m² carbon fabric (Style 469 Aero) made from fine 1k carbon fibre yarns in a dense plain weave.
For thin-walled CFRP laminates with a uniform fabric structure, particularly in model making.
MATERIAL TO AEROSPACE SPECIFICATION
Style 469 Aero is manufactured from TORAYCA® T300B carbon fibres. The fine 1k yarns, woven at 7 ends/cm in both warp and weft, produce a dense, uniform fabric structure. The plain weave offers good resistance to yarn displacement and facilitates accurate fibre positioning during lay-up.
Technical data
Fabric style
Style 469 Aero
Fibre type
TORAYCA® T300B (HT, 1k)
Yarn linear density
67 ± 4 tex
Areal weight
93 ± 4 g/m²
Weave
Plain 1/1
Warp / weft count
7.0 ± 0.3 / 7.0 ± 0.3 ends/cm
Dry fabric thickness
0.14 ± 0.03 mm (guideline value)
Fabric width
100 cm (± 1 cm)
Fabric finish
Loomstate (greige)
Typical applications
Propellers and thin-walled model aircraft components
Lightweight CFRP shells and fairings for drones and UAVs
Thin facing plies for sandwich and honeycomb structures
Technical housings, covers and lightweight moulded parts
Local reinforcement and multi-ply CFRP laminates
Prototypes and test laminates in research and development
Properties and processing
The fine fabric structure is particularly suitable for thin laminates requiring a uniform fibre distribution. The balanced plain weave supports accurate fibre alignment and provides comparatively good dimensional stability during cutting and positioning in the mould.
The fabric can be processed with suitable epoxy laminating resin systems. Ensure complete fibre wet-out and careful air removal during lay-up. The plain weave is well suited to flat and gently curved components. Drapability is limited around tight radii and complex double-curved surfaces, where twill fabrics are often easier to conform to the mould.
Calculated laminate data for hand lay-ups with 35% fibre volume fraction
Calculated resin requirement
approx. 112 g/m²
Calculated laminate thickness
approx. 0.15 mm
Calculated laminate areal weight
approx. 205 g/m²
ECC
Carbon fabric 93 g/m² (Aero, plain weave) 100 cm, roll/ 0,5 m
Item no. 1902230
Only 7 left in stock, more on the way
(delivery time 1-2 days)
Is a package size missing? Sizes that are not in stock will be manufactured from existing inventory at short notice – provided sufficient stock is available. Our sales team will be happy to inform you about exact availability and the expected delivery time.
Current stock:
664 qm in stock
all Prices
price incl. VAT, possibly plus
shipping
Article information
type: ga
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Instructions for use
The product is not classified according to the CLP regulation.
Labelling according to Regulation (EC) No 1272/2008: Void
Hazard pictograms: Void
Hazard statements: Void
MSDS Carbon fibre (PDF)
