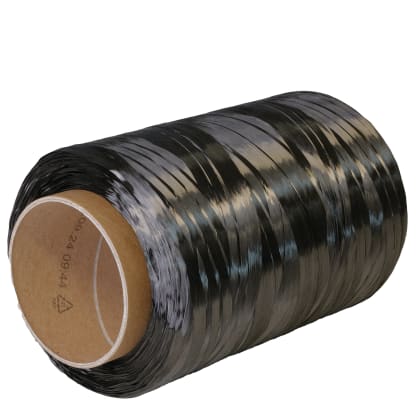

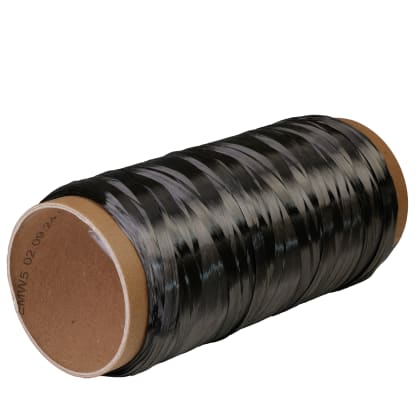

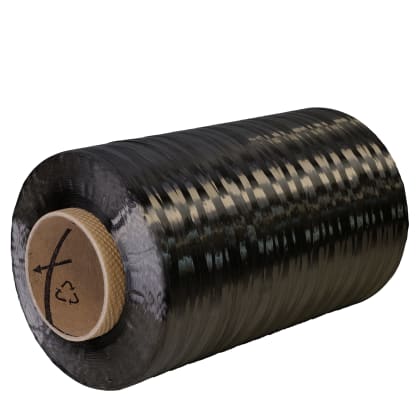

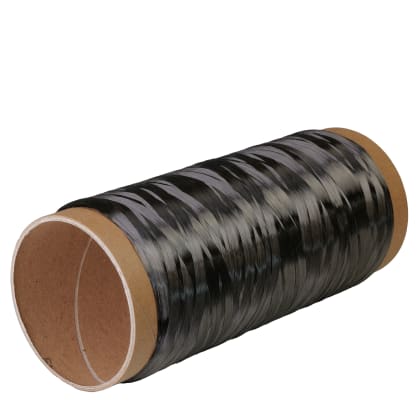

Five spools of black carbon fiber thread are standing upright. The thread has a shiny texture and is wrapped around cardboard spools.

Spools with 100 m, 250 m, 0,5 kg, 1 kg und 4 kg

SPECIAL OFFER Carbon roving Tenax® IMS 65 24k / 830 tex

These branded goods without a factory test certificate are of perfect quality and free of defects. Sale while stocks last.

Roving of intermediate modulus carbon fibre.

For hand lay-ups, winding, and pultrusion
Fast and good impregnation
For epoxy, polyester, and vinyl ester resins

Fibre: Tenax® IMS 65 E23 830 tex 24k or equivalent

Technical data:
Density: 1.78 g/cm³
Tensile strength: 6000 MPa
Tensile modulus: 290 GPa
Elongation at break: 2.1 %
Filament count: 24000 = 24k
Filament diameter: 5 µm

Intermediate modulus carbon fiber (IM) with high tensile strength, increased modulus compared to the standard-HTA-fiber, together with higher elongation.

We purchase, depending on availability, the carbon rovings from a variety of manufacturers, therefore the values may differ slightly.

Movie about the perfect damage-free coil production at R&G Conversion of SI units: 1 MPa (Megapascal) = 1 N/mm² = 0,102 kg/mm²
