Divinycell® H80 (1220 x 610 mm) T= 20 mm

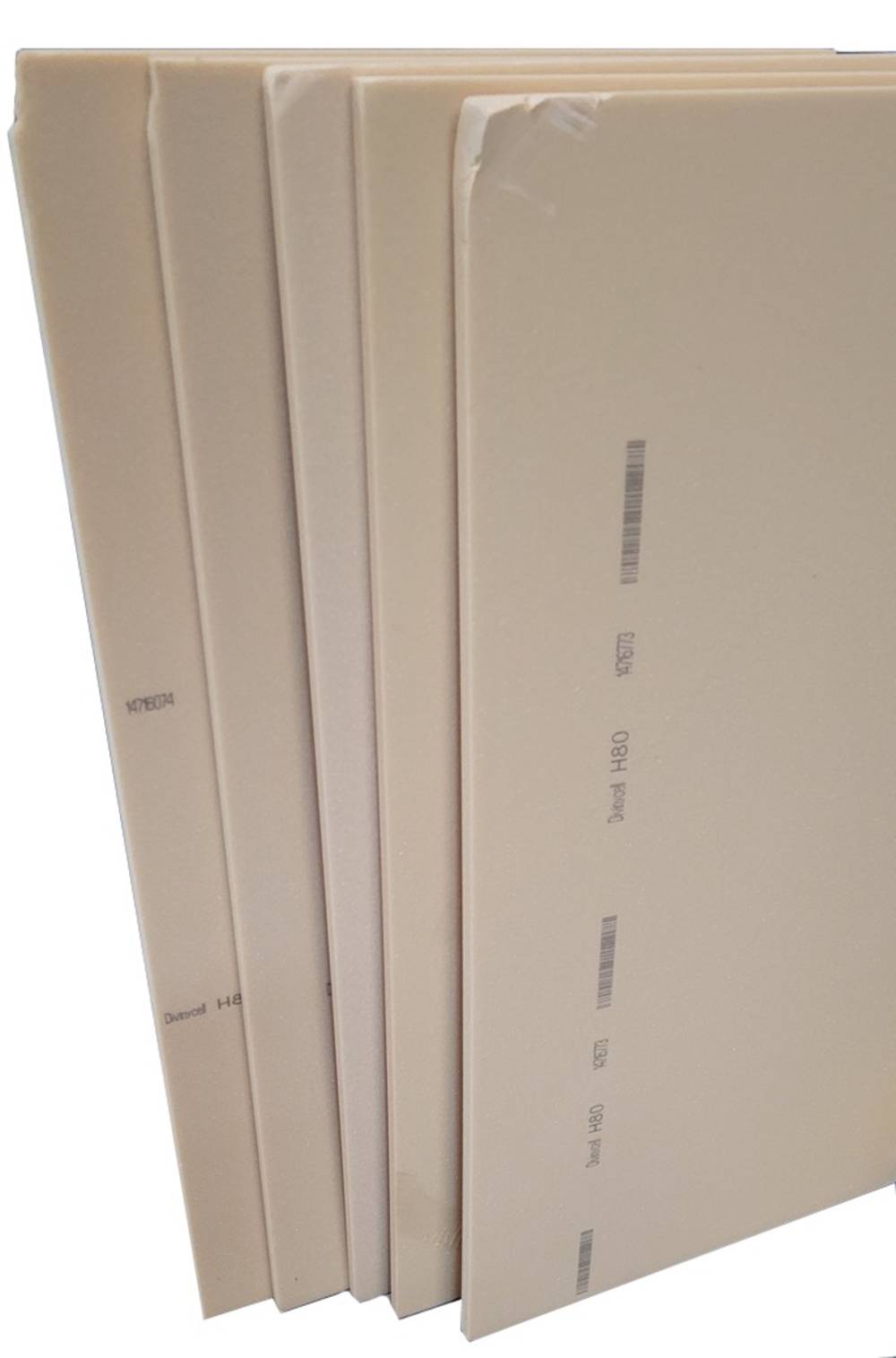

Due to transport damage, these Divinycell sheets show slight damage (see picture). The sheets remain fully functional.

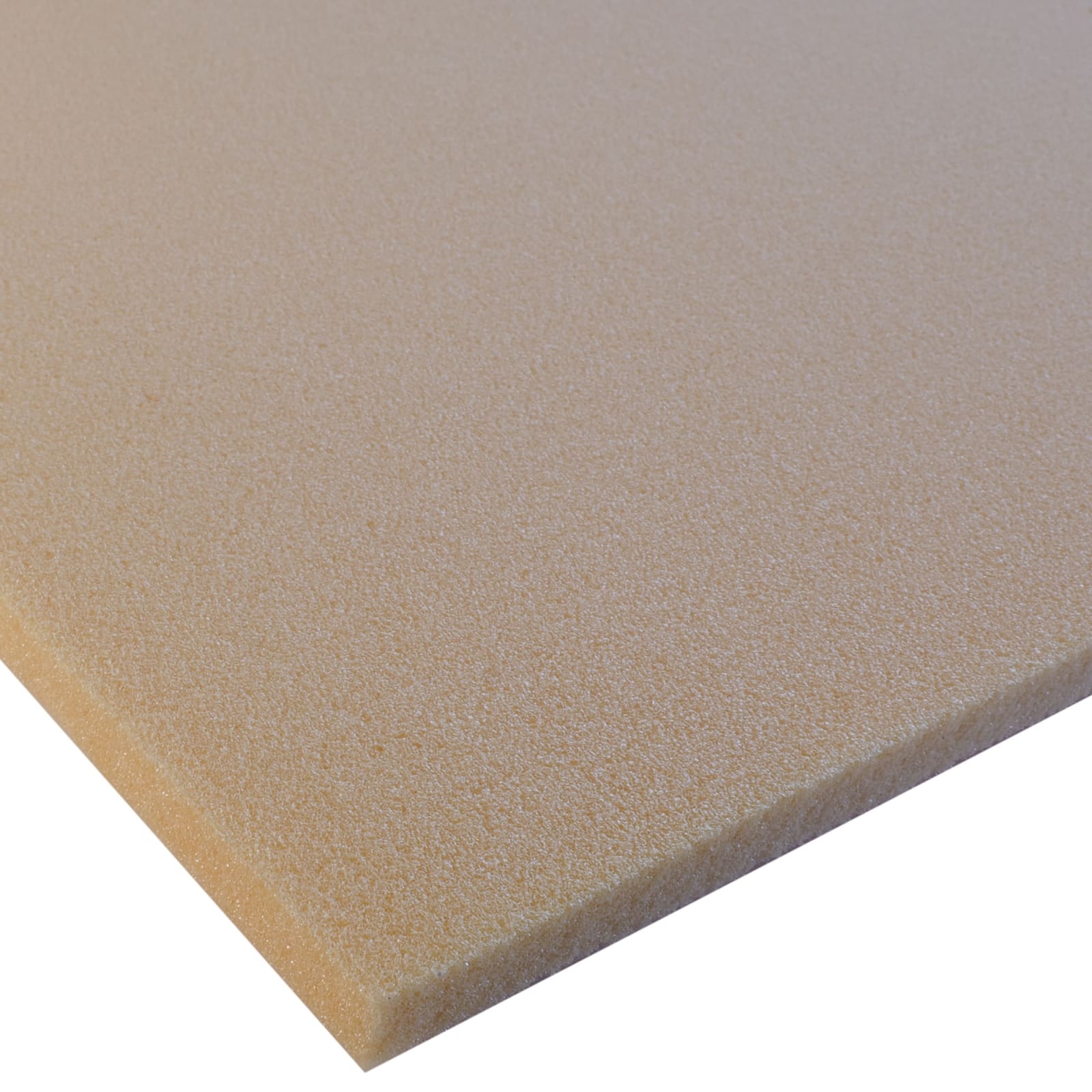

This PVC Foam Board provides excellent mechanical properties to a low-weight

• Low water absorption
• Superior damage tolerance
• Excellent thermal properties
• Thermoformable
• Fast and easy to process
• Good chemical resistance
• Excellent fatigue properties
• Very low resin uptake
• Good temperature resistance
• Compatible with most common glues and resin systems

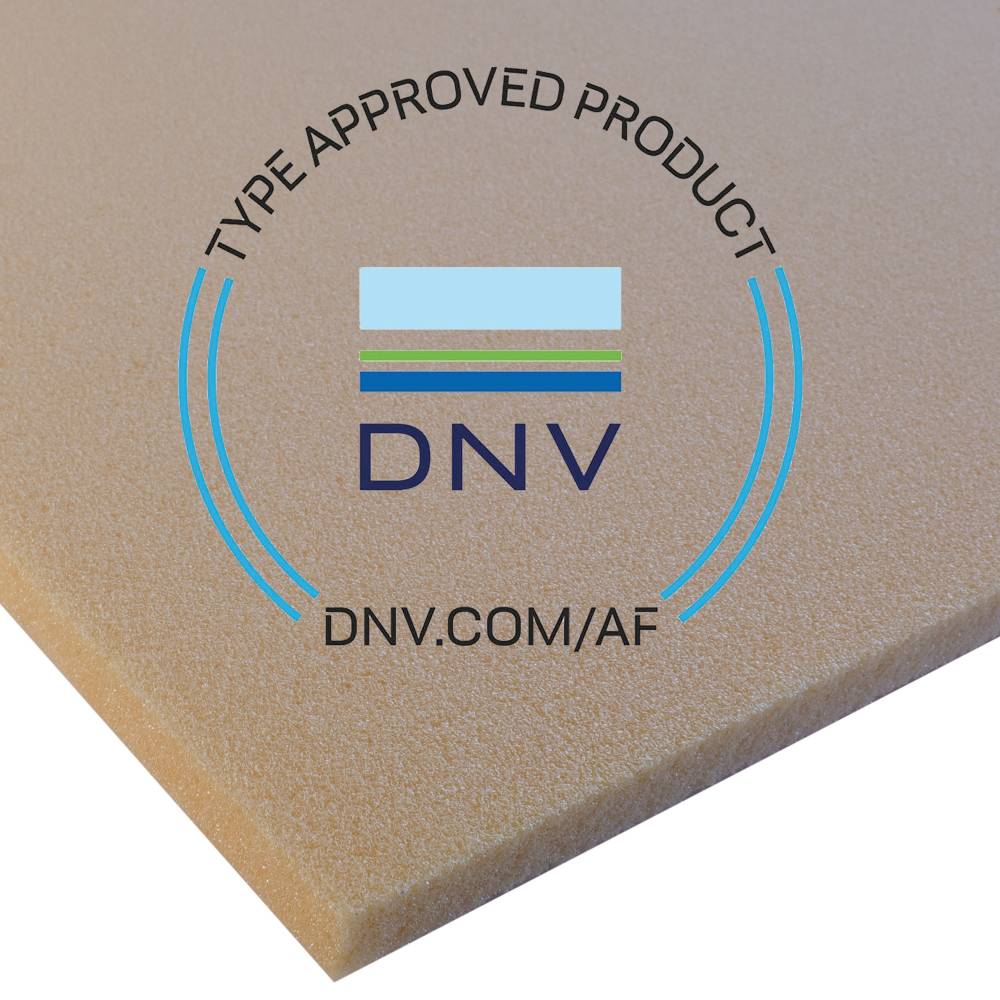

Divinycell® H is found to comply with

• DNV rules for classification – Ships
• DNV rules for classification – High speed and light craft
• DNV class programme DNV-CP-0084 – Type approval – Sandwich core materials

---> DNV Approval

Mechanical data of Divinycell® H80:

All values measured at +23 °C
¹ Properties measured perpendicular to the plane.
Nominal value is the average value of a mechanical property at a nominal density.
Minimum value is a minimum guaranteed mechanical property a material has independently of density.

Technical characteristics of Divinycell® H80:

¹ Typical values
² Thermal conductivity at  +20°C
³ Standard deviation is  0.045

Application:

Divinycell® H has a proven track record in virtually every application area where sandwich composites are employed, including the marine (leisure, military and commercial), land transportation, wind energy, civil engineering/infrastructure and general industrial markets.

Processing:

Continuous operating temperature is typically -200 ºC to +70 ºC. The foam can be used in sandwich structures, for outdoor exposure, with external skin temperatures up to +85 ºC.

Maximum processing temperature is dependent on time, pressure and process conditions.
