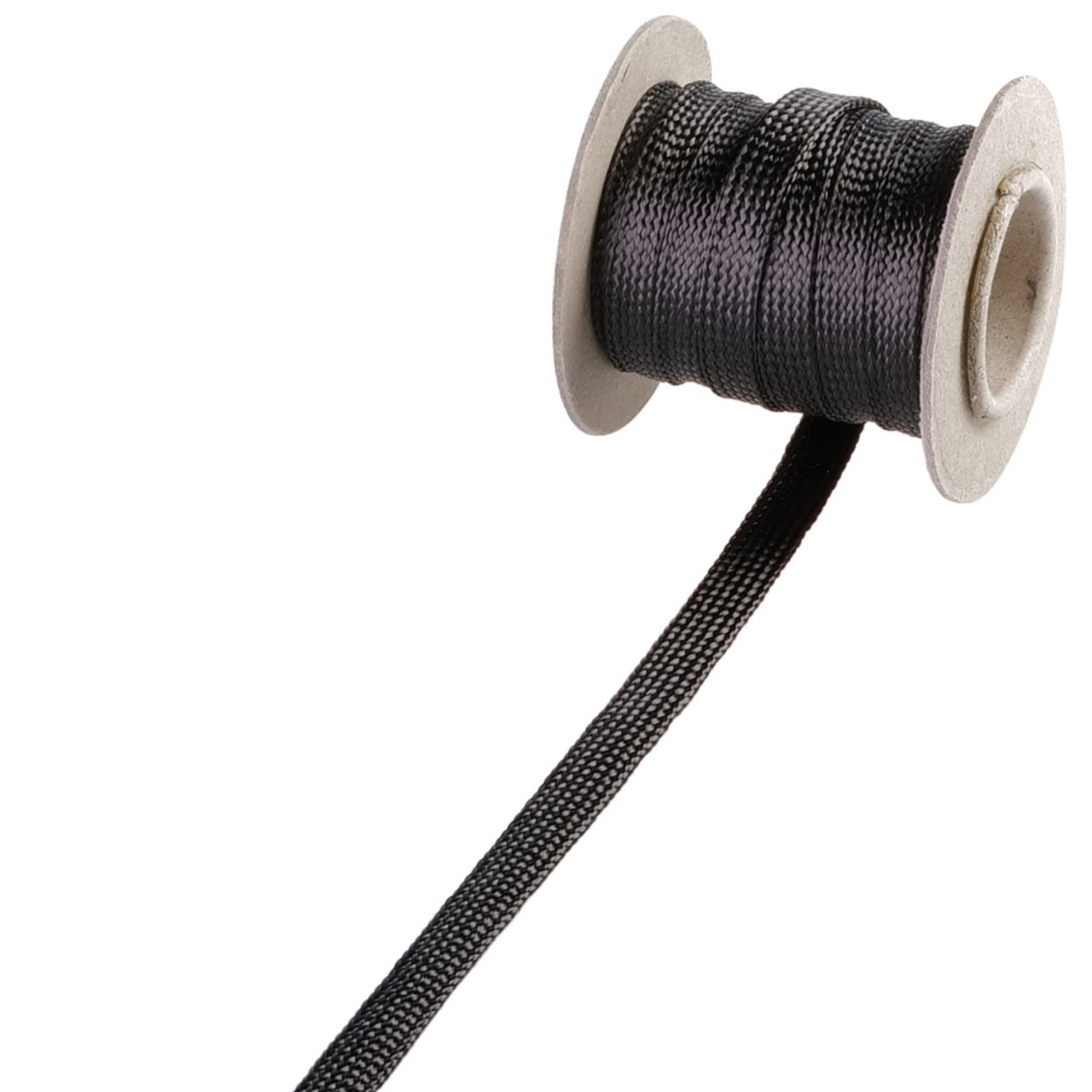

Carbon fibre sleeve Ø 14 mm / 45° / 3k

Fibre: Tenax® 200 tex (3k)

Diameter: approx. from 10 - 16 mm (depending on fibre angle)
Thickness: approx. 0.44 mm
Ends: 48

Technical data at 45° braid angle:
Diameter: 13.7 mm
Width flat: 21.5 mm
Weight: 13.6 g/m

Application:
Torsion-proof pipes of various diameters e.g. for sports equipment construction. The sleeve diameter can be varied by clenching or stretching. Delivered in a stretched condition.

Processing:
Use plenty of R&G release spray on the core material (slide coating) and allow it to dry. Pass the sleeve over the material and pull both ends for proper fit – fit under tension if necessary. Apply resin with a brush. The area to be processed can be warmed using a hairdryer if required. This will liquify the resin and impregnate the fibre quickly and safely. (Do not forget resin fumes – ensure that the room is well aired or wear a protective mask.) The core is gripped following hardening and the pipe is removed. Small-size components may be pre-frozen. In this way, it is easier to remove the shrunken metal core.

Please note:
For technical reasons, it is not possible to wind up sleeves at a fibre angle of 45°. The amounts differ therefore on the length at 45°.
