Bagging film BLUE 50 my, 145 cm
Bagging film BLUE 50 my, 145 cm

max. 125 °C, 50 my, 300 % / for vacuum moulding

Bagging film BLUE 50 my, 145 cm

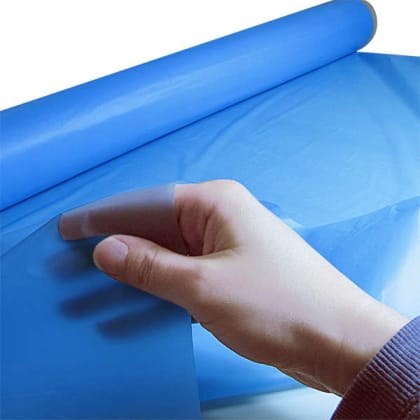

Bagging film for vacuum moulding.

This modified polyethylene film is easy to process and gives the component a silk-matt surface.

Suitable for the production of convex or concave components without strong beads, edges, and peaks (e.g. plates and tub-like shapes). Despite a good stretching ability, the vacuum bagging film is not elastic, such as a silicone sheet. At the same time, the stretching leads to permanent deformation, which is why the film can be used only once.
Over sharp edges and areas that span recesses, the film can tear under high pressure.

We do not recommend this film for very complex geometries, or we advise preliminary tests.

Processing temperature: Up to 125 °C
Thickness: 0.050 mm (50 µm)
Width:
145 cm
Elongation at break: approx. 300 %
Weight: 48,6 g/m²
Tensile strength: 30 MPa
Material: Polyethylene, silk-matt surface
Colour: Blue

Storage:
At room temperature and 50-60 % humidity.

R&G

Bagging film BLUE (50 my, 125 °C, 300 %) 145 cm, roll/ 5 m

Item no.  390186-145-NP-4 Only 2 left in stock  (delivery time 1-2 days)

Add to Shopping List

26,24
(Base Price 3,62 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%
- +
R&G

Bagging film BLUE (50 my, 125 °C, 300 %) 145 cm, roll/ 10 m

Item no.  390186-145-NP-5 Only 2 left in stock  (delivery time 1-2 days)

Add to Shopping List

40,42
(Base Price 2,79 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%
- +
R&G

Bagging film BLUE (50 my, 125 °C, 300 %) 145 cm, roll/ 20 m

Item no.  390186-145-NP-6 Only 3 left in stock  (delivery time 1-2 days)

Add to Shopping List

66,87
(Base Price 2,31 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%
- +
R&G

Bagging film BLUE (50 my, 125 °C, 300 %) 145 cm, roll/ 50 m

Item no.  390186-145-NP-7 Only 2 left in stock  (delivery time 1-2 days)

Add to Shopping List

139,11
(Base Price 1,92 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%
- +
R&G

Bagging film BLUE (50 my, 125 °C, 300 %) 145 cm, roll/ 100 m

Item no.  390186-145-NP-8 Only 2 left in stock  (delivery time 1-2 days)

Add to Shopping List

235,35
(Base Price 1,62 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%
- +

all Prices  price incl. VAT, possibly plus shipping
